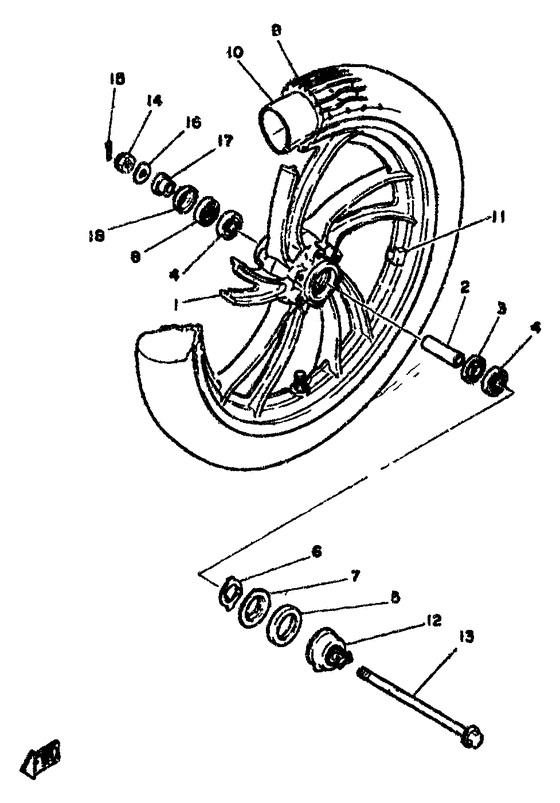

Front wheel Diagram Yamaha RD
- Year
- 1982
- Model code
- 4L0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-25168-00-98
Cast Wheel, Front
|
4L0-25168-00-98 |
— | ||
| replacement | |||||
|
1
|
1
4L3-25168-00-98
Cast Wheel, Front
|
4L3-25168-00-98 |
— | ||
|
2
|
2
90387-123A9-00 Collar |
90387-123A9-00 |
from US $9.35 |
||
|
3
|
3
2U2-25315-00-00 Flange, Spacer |
2U2-25315-00-00 |
from US $2.55 |
||
| replacement | |||||
|
3
|
3
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
4
|
4
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
4
|
4
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
5
|
5
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $11.05 |
||
|
6
|
6
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $3.54 |
||
|
7
|
7
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $2.98 |
||
|
8
|
8
93106-20002-00 Oil Seal |
93106-20002-00 |
from US $8.50 |
||
| replacement | |||||
|
8
|
8
93106-20033-00 Oil Seal(3Tu) |
93106-20033-00 |
from US $8.50 |
||
|
9
|
9
94130-18614-00
Tire
|
94130-18614-00 |
— | ||
|
10
|
10
94230-18084-00 Tube (3.00-18) |
94230-18084-00 |
US $27.38 |
||
| replacement | |||||
|
10
|
10
94227-18195-00 Tube |
94227-18195-00 |
US $37.53 |
||
|
11
|
11
1A1-25398-01-00 Balancer, Wheel (10G)Ur |
1A1-25398-01-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)Ur |
5MT-25398-00-00 |
from US $7.65 |
||
|
11
|
11
1A1-25399-00-00 Balancer, Wheel (10G)Ur |
1A1-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)Ur |
5MT-25398-00-00 |
from US $7.65 |
||
|
11
|
11
2M0-25399-00-00 Balancer, Wheel (30G)Ur |
2M0-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)Ur |
5MT-25398-00-00 |
from US $7.65 |
||
|
12
|
12
4L0-25190-00-00
Gear Unit Assy
|
4L0-25190-00-00 |
— | ||
| replacement | |||||
|
12
|
12
4L0-25190-10-00
Gear Unit Assy
|
4L0-25190-10-00 |
— | ||
|
13
|
13
4L0-25181-00-00
Axle, Wheel
|
4L0-25181-00-00 |
— | ||
|
14
|
14
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
14
|
14
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
15
|
15
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
16
|
16
92901-12200-00 Washer, Plain |
92901-12200-00 |
from US $2.13 |
||
| replacement | |||||
|
16
|
16
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.34 |
||
|
17
|
17
90387-12670-00 Collar |
90387-12670-00 |
from US $10.51 |
||
| replacement | |||||
|
17
|
17
90387-127E0-00 Collar (40E) |
90387-127E0-00 |
from US $10.24 |
||
|
18
|
18
481-25118-01-00 Cover, Hub Dust |
481-25118-01-00 |
from US $6.23 |
||
