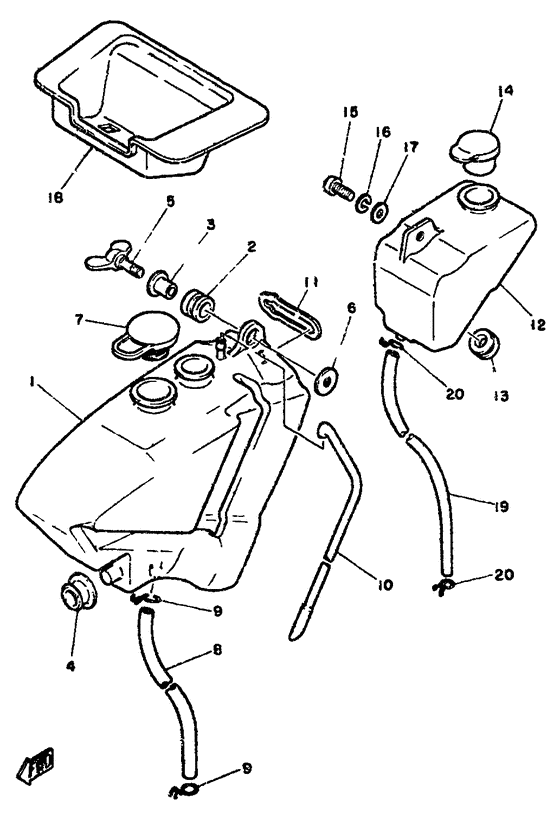

Oil tank Diagram Yamaha RD
- Year
- 1982
- Model code
- 4L0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-21751-00-00
Tank, Oil
|
4L0-21751-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
904-80141-02-00
Grommet
|
904-80141-02-00 |
— | ||
| replacement | |||||
|
2
|
2
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
3
|
3
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
4
|
4
90480-18277-00 Grommet |
90480-18277-00 |
from US $2.69 |
||
|
5
|
5
90122-06001-00 Bolt, Wing |
90122-06001-00 |
from US $3.54 |
||
| replacement | |||||
|
5
|
5
901-22060-21-00
Bolt, Wing (38W)
|
901-22060-21-00 |
— | ||
|
6
|
6
90179-06013-00 Nut, Spec''l Shape |
90179-06013-00 |
from US $2.30 |
||
|
7
|
7
1T9-21771-00-00 Body, Cap |
1T9-21771-00-00 |
from US $9.94 |
||
| replacement | |||||
|
7
|
7
1T9-21771-01-00 BODY CAP |
1T9-21771-01-00 |
from US $10.66 |
||
|
8
|
8
90445-09271-00 Hose (L865) |
90445-09271-00 |
from US $12.75 |
||
| replacement | |||||
|
8
|
8
904-45090-21-00 Hose (L865) |
904-45090-21-00 |
from US $12.75 |
||
|
9
|
9
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
10
|
10
4L0-24317-01-00
Pipe 7
|
4L0-24317-01-00 |
— | ||
|
11
|
11
4L0-2172E-00-00
Stay, Side Cover 1
|
4L0-2172E-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
4L0-21871-00-00
Tank, Recovery
|
4L0-21871-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
90480-15058-00 Grommet |
90480-15058-00 |
from US $1.35 |
||
|
14
|
14
4L0-21815-01-00 Cap |
4L0-21815-01-00 |
from US $9.07 |
||
| replacement | |||||
|
14
|
14
1AA-21815-00-00 Cap |
1AA-21815-00-00 |
from US $5.96 |
||
|
15
|
15
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
15
|
15
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
16
|
16
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
90201-06755-00 Washer, Plate |
90201-06755-00 |
US $1.56 |
||
| replacement | |||||
|
17
|
17
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
18
|
18
4L0-2177A-00-00
Box
|
4L0-2177A-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
4L0-21766-00-00
Pipe, Oil
|
4L0-21766-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
20
|
20
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
20
|
20
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
