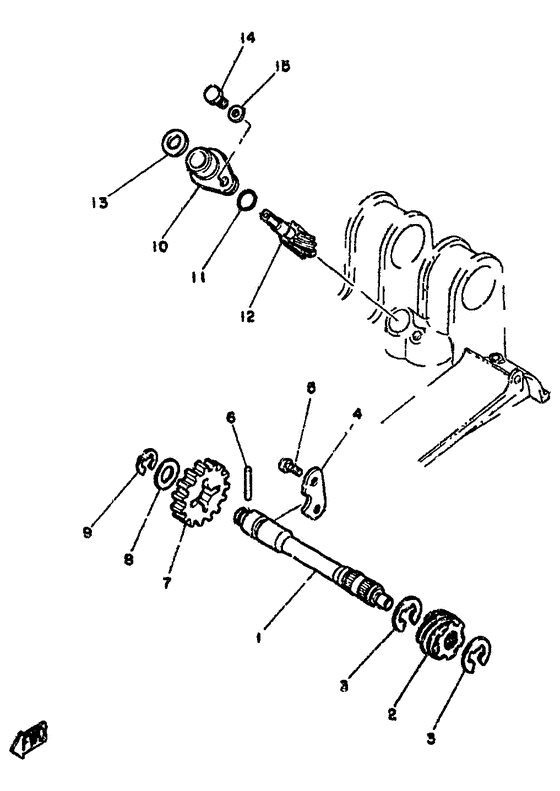

Tachometer gear Diagram Yamaha RD
- Year
- 1982
- Model code
- 4L0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2R8-17861-00-00
Axle, Drive Gear
|
2R8-17861-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
2R8-17831-00-00
Gear, Drive (6T)
|
2R8-17831-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
93430-10016-00 Circlip |
93430-10016-00 |
from US $1.35 |
||
| replacement | |||||
|
3
|
3
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
4
|
4
4L0-17812-00-00
Stopper
|
4L0-17812-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
5
|
5
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
5
|
5
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
6
|
6
93603-22028-00 Pin, Dowel |
93603-22028-00 |
from US $1.66 |
||
|
7
|
7
2R9-17851-00-00
Gear, Primary (14T)
|
2R9-17851-00-00 |
— | ||
|
8
|
8
90201-10135-00 Washer, Plate |
90201-10135-00 |
from US $2.55 |
||
| replacement | |||||
|
8
|
8
90201-105J4-00 Washer, Plate(52H) |
90201-105J4-00 |
from US $2.55 |
||
|
9
|
9
93430-08006-00 Circlip |
93430-08006-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
10
|
10
4L0-17811-00-00 Housing, Tach Gear |
4L0-17811-00-00 |
from US $17.14 |
||
|
11
|
11
93210-12327-00 O-Ring |
93210-12327-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.34 |
||
|
12
|
12
4L0-17841-00-00
Gear, Driven (13T)
|
4L0-17841-00-00 |
— | ||
|
13
|
13
4L0-17818-00-00 Gasket |
4L0-17818-00-00 |
from US $3.54 |
||
|
14
|
14
97306-06010-00 Bolt |
97306-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
15
|
15
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
