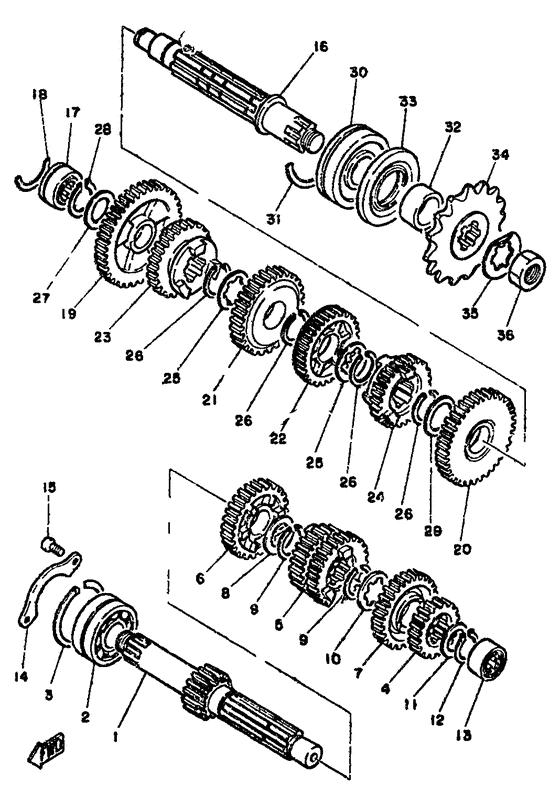

Transmission Diagram Yamaha RD
- Year
- 1982
- Model code
- 4L0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-17411-01-00
Axle, Main (14T)
|
4L0-17411-01-00 |
— | ||
|
2
|
2
93305-20502-00 Bearing (93305-20508-00) |
93305-20502-00 |
from US $40.34 |
||
|
3
|
3
93440-52009-00 Circlip |
93440-52009-00 |
from US $3.98 |
||
|
4
|
4
4L0-17121-01-00
Gear, 2Nd Pinion (18T)
|
4L0-17121-01-00 |
— | ||
|
5
|
5
4L0-17131-01-00
Gear, 3Rd/4Th Pinion (22T,24T)
|
4L0-17131-01-00 |
— | ||
|
6
|
6
4L0-17151-01-00
Gear, 5Th Pinion (26T)
|
4L0-17151-01-00 |
— | ||
|
7
|
7
4L0-17161-01-00
Gear, 6Th Pinion (27T)
|
4L0-17161-01-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90201-25490-00 Washer, Plate |
90201-25490-00 |
from US $3.29 |
||
|
9
|
9
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
10
|
10
90209-21105-00 Washer 328172160000 |
90209-21105-00 |
from US $2.98 |
||
|
11
|
11
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
12
|
12
93410-20009-00 Circlip |
93410-20009-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
13
|
13
93311-22005-00 Bearing, Cyl.#11 |
93311-22005-00 |
from US $24.94 |
||
| replacement | |||||
|
13
|
13
93311-22027-00 Bearing |
93311-22027-00 |
from US $24.94 |
||
|
14
|
14
4L0-17471-00-00 Plate, Cover |
4L0-17471-00-00 |
from US $7.28 |
||
|
15
|
15
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
16
|
16
4L0-17421-01-00
Axle, Drive
|
4L0-17421-01-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
93311-42045-00 Bearing |
93311-42045-00 |
from US $18.84 |
||
|
18
|
18
278-17425-00-00 Circlip 2 |
278-17425-00-00 |
from US $2.32 |
||
|
19
|
19
4L0-17211-01-00
Gear, 1St Wheel
|
4L0-17211-01-00 |
— | ||
|
20
|
20
4L0-17221-01-00
Gear, 2Nd Wheel
|
4L0-17221-01-00 |
— | ||
|
21
|
21
4L0-17231-01-00
Gear, 3Rd Wheel (29T)
|
4L0-17231-01-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
4L0-17241-01-00
Gear, 4Th Wheel
|
4L0-17241-01-00 |
— | ||
|
23
|
23
4L0-17251-01-00
Gear, 5Th Wheel (25T)
|
4L0-17251-01-00 |
— | ||
|
24
|
24
4L0-17261-01-00
Gear, 6Th Wheel (24T)
|
4L0-17261-01-00 |
— | ||
|
25
|
25
90209-21105-00 Washer 328172160000 |
90209-21105-00 |
from US $2.98 |
||
|
26
|
26
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
27
|
27
90201-20276-00 Washer, Plate (T=1.0) |
90201-20276-00 |
from US $1.56 |
||
|
28
|
28
93410-20009-00 Circlip |
93410-20009-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
29
|
29
90201-25490-00 Washer, Plate |
90201-25490-00 |
from US $3.29 |
||
|
30
|
30
93306-30504-00 Bearing |
93306-30504-00 |
from US $18.14 |
||
|
31
|
31
278-17424-01-00 Circlip 1 |
278-17424-01-00 |
from US $3.64 |
||
|
32
|
32
90387-25192-00 Collar |
90387-25192-00 |
from US $15.27 |
||
| replacements | |||||
|
32
|
32
90387-253M9-00 Collar |
90387-253M9-00 |
from US $21.11 |
||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
931-02350-54-00
Oil Seal, Sd-Type
|
931-02350-54-00 |
— | ||
| replacement | |||||
|
33
|
33
931-02351-09-00 Oil Seal (Sd-35-62-6 Hs) |
931-02351-09-00 |
from US $9.35 |
||
|
34
|
34
1A1-17461-60-00
Sprocket, Drive 16T
|
1A1-17461-60-00 |
— | ||
| replacement | |||||
|
34
|
34
938-54161-08-00
Sprocket, Drive 16T
|
938-54161-08-00 |
— | ||
|
35
|
35
90215-21121-00 Washer, Lock |
90215-21121-00 |
US $5.38 |
||
| replacement | |||||
|
35
|
35
90215-21239-00 Washer, Lock (23X) |
90215-21239-00 |
from US $2.98 |
||
|
36
|
36
90179-18020-00 Nut |
90179-18020-00 |
from US $4.96 |
||
