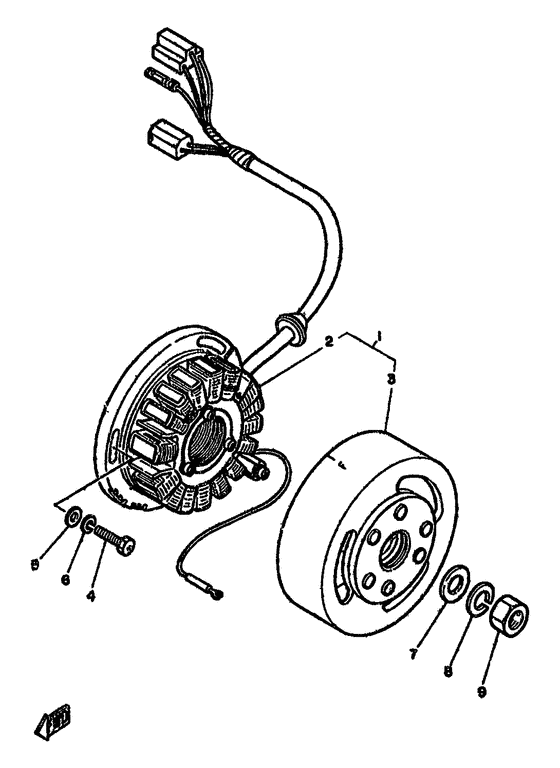

A.c. generator Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-81400-50-00
Ac Magnet Generator Assy
|
4L0-81400-50-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4L0-81410-50-00
Stator Assy
|
4L0-81410-50-00 |
— | ||
|
3
|
3
4L0-81450-50-00
Rotor Assy
|
4L0-81450-50-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
901-53060-25-00
Screw, Hexagon
|
901-53060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
5
|
5
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
|
6
|
6
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
90201-12593-00 Washer, Plate |
90201-12593-00 |
from US $4.53 |
||
|
8
|
8
929-02121-00-00
Washer, Spring
|
929-02121-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
9
|
9
901-70120-67-00
Nut, Hexagon
|
901-70120-67-00 |
— | ||
| replacement | |||||
|
9
|
9
90170-12347-00 Nut, Hexagon |
90170-12347-00 |
from US $1.70 |
||
