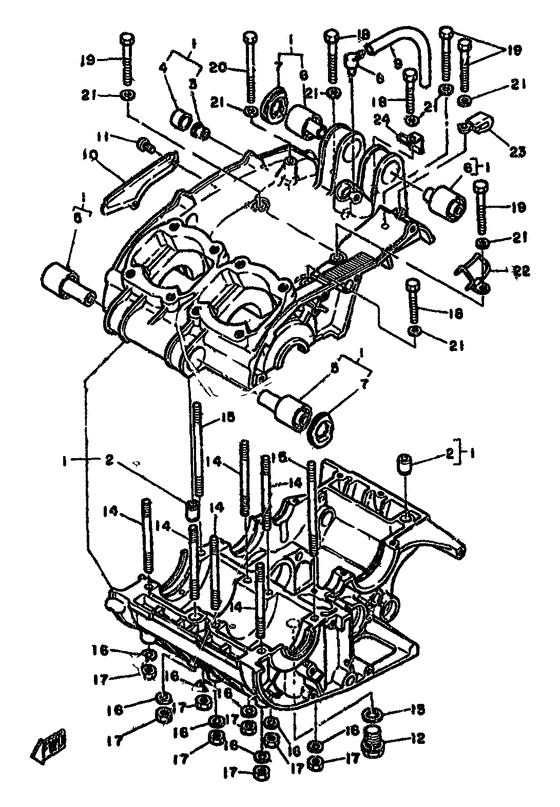

Crankcase Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-15100-01-00
Crankcase Assy
|
4L0-15100-01-00 |
— | ||
| replacement | |||||
|
1
|
1
4L0-15100-02-00
Crank Case Assy
|
4L0-15100-02-00 |
— | ||
|
2
|
2
91810-05016-00 Pin, Dowel |
91810-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
3
|
3
90381-08002-00 Bush, Solid |
90381-08002-00 |
from US $2.66 |
||
|
4
|
4
90380-14040-00
Bush, Solid
|
90380-14040-00 |
— | ||
|
5
|
5
4L0-15316-00-00 Damper 1 |
4L0-15316-00-00 |
from US $29.89 |
||
| replacements | |||||
|
5
|
5
2GU-15316-00-00 Damper 1 |
2GU-15316-00-00 |
from US $29.89 |
||
|
5
|
5
903-88100-06-00 DAMPER |
903-88100-06-00 |
from US $29.89 |
||
|
6
|
6
4L0-15326-00-00 Damper 2 |
4L0-15326-00-00 |
from US $25.50 |
||
| replacements | |||||
|
6
|
6
2GU-15326-00-00 Damper 2 |
2GU-15326-00-00 |
from US $25.50 |
||
|
6
|
6
903-88100-07-00 DAMPER |
903-88100-07-00 |
from US $25.50 |
||
|
7
|
7
4L0-15328-00-00 Spacer, Damper |
4L0-15328-00-00 |
from US $23.24 |
||
| replacements | |||||
|
7
|
7
2YK-15328-00-00 Spacer, Damper (4L0-15328-00) |
2YK-15328-00-00 |
from US $23.24 |
||
|
7
|
7
2YK-15328-01-00 Spacer, Damper |
2YK-15328-01-00 |
US $24.35 |
||
|
8
|
8
498-15371-00-00 Breather |
498-15371-00-00 |
from US $3.68 |
||
| replacement | |||||
|
8
|
8
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.34 |
||
|
9
|
9
90446-07112-00 Hose (3Ak) |
90446-07112-00 |
from US $3.40 |
||
| replacement | |||||
|
9
|
9
904-46072-41-00 Hose (3Ak) |
904-46072-41-00 |
from US $3.40 |
||
|
10
|
10
278-15492-01-00 Cover |
278-15492-01-00 |
from US $6.09 |
||
|
11
|
11
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
11
|
11
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
12
|
12
90340-14010-00 Plug, Straight Screw |
90340-14010-00 |
US $1.42 |
||
| replacement | |||||
|
12
|
12
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.42 |
||
|
13
|
13
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
13
|
13
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
14
|
14
90116-08064-00 Bolt, Stud |
90116-08064-00 |
from US $3.64 |
||
|
15
|
15
90116-08232-00 Bolt, Stud (1A1) |
90116-08232-00 |
from US $9.63 |
||
|
16
|
16
90201-08100-00 Washer, Plate |
90201-08100-00 |
from US $2.69 |
||
|
17
|
17
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
17
|
17
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
17
|
17
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
18
|
18
97311-06045-00 Bolt |
97311-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
18
|
18
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
19
|
19
97311-06055-00 Bolt |
97311-06055-00 |
US $4.11 |
||
| replacements | |||||
|
19
|
19
97595-06555-00 Bolt, With Washer |
97595-06555-00 |
from US $4.11 |
||
|
19
|
19
97E95-06555-00 Bolt, Hexagon W/w Deep Recess |
97E95-06555-00 |
from US $1.21 |
||
|
20
|
20
97311-06090-00 Bolt (4L3) |
97311-06090-00 |
from US $1.53 |
||
| replacement | |||||
|
20
|
20
97017-06090-00 Bolt(3Gg) |
97017-06090-00 |
from US $2.55 |
||
|
21
|
21
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
21
|
21
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
22
|
22
904-62060-25-00
Clamp
|
904-62060-25-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
90465-08125-00 Clamp |
90465-08125-00 |
from US $2.41 |
||
| replacement | |||||
|
23
|
23
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
24
|
24
90465-06094-00 Clamp |
90465-06094-00 |
from US $7.51 |
||
