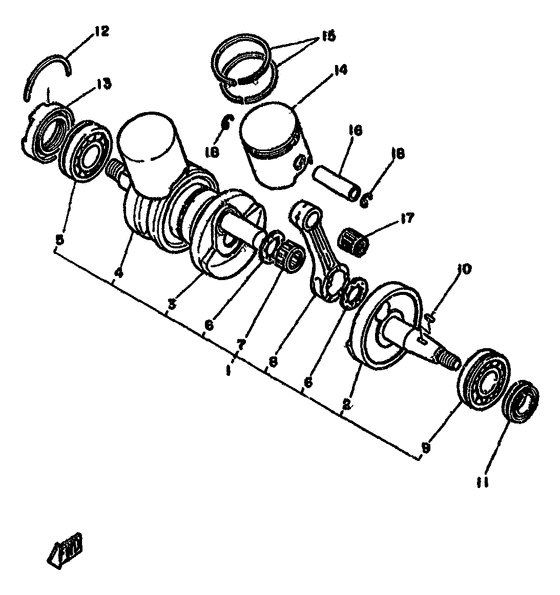

Crankshaft & Piston Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-11400-03-00 Crankshaft Assy |
4L0-11400-03-00 |
US $2,074.98 |
||
|
2
|
2
4L0-11412-01-00
Crank 1
|
4L0-11412-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
4L0-11409-00-00
Crank Sub Assy
|
4L0-11409-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
4L0-11442-00-00
Crank 4
|
4L0-11442-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
93306-30510-00 Bearing |
93306-30510-00 |
from US $35.92 |
||
| replacements | |||||
|
5
|
5
933-06305-71-00 Bearing |
933-06305-71-00 |
from US $50.60 |
||
|
5
|
5
93306-30550-00 Bearing |
93306-30550-00 |
from US $35.92 |
||
|
6
|
6
90209-22071-00 Washer |
90209-22071-00 |
from US $3.64 |
||
| replacement | |||||
|
6
|
6
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $3.64 |
||
|
7
|
7
93310-522J0-00 Bearing |
93310-522J0-00 |
from US $53.74 |
||
|
8
|
8
4L0-11651-03-00 Rod, Connecting |
4L0-11651-03-00 |
US $127.97 |
||
| replacement | |||||
|
8
|
8
1GU-11651-00-00 Rod, Connecting |
1GU-11651-00-00 |
from US $92.45 |
||
|
9
|
9
93306-30531-00 Bearing |
93306-30531-00 |
from US $48.36 |
||
| replacement | |||||
|
9
|
9
93306-30549-00 Bearing(1Ua) |
93306-30549-00 |
from US $45.30 |
||
|
10
|
10
902-80050-13-00
Key, Woodruff
|
902-80050-13-00 |
— | ||
| replacement | |||||
|
10
|
10
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
|
11
|
11
93103-25108-00 Oil Seal |
93103-25108-00 |
from US $13.24 |
||
|
12
|
12
278-17424-00-00 Circlip 1 |
278-17424-00-00 |
from US $10.63 |
||
| replacement | |||||
|
12
|
12
278-17424-01-00 Circlip 1 |
278-17424-01-00 |
from US $3.64 |
||
|
13
|
13
93103-40077-00 Oil Seal |
93103-40077-00 |
from US $9.26 |
||
|
14
|
14
4L1-11631-01-95
Piston (Std)
Ur |
4L1-11631-01-95 |
— | ||
|
14
|
14
4L1-11631-01-96
Piston (Std)
Ur |
4L1-11631-01-96 |
— | ||
| replacement | |||||
|
14
|
14
4L1-11631-01-95
Piston (Std)
Ur |
4L1-11631-01-95 |
— | ||
|
14
|
14
4L1-11635-01-00
Piston (0.25Mm O/s)
Ap |
4L1-11635-01-00 |
— | ||
|
14
|
14
4L1-11636-01-00
Piston (0.50Mm O/s)
Ap |
4L1-11636-01-00 |
— | ||
|
14
|
14
4L1-11637-01-00
Piston (0.75Mm O/s)
Ap |
4L1-11637-01-00 |
— | ||
|
14
|
14
4L1-11638-01-00
Piston (1.00Mm O/s)
Ap |
4L1-11638-01-00 |
— | ||
|
15
|
15
4L1-11610-31-00
Piston Ring Set (0.75Mm O/s)
Ap |
4L1-11610-31-00 |
— | ||
| replacement | |||||
|
15
|
15
29L-11610-30-00
Piston Ring Set
Ap |
29L-11610-30-00 |
— | ||
|
15
|
15
4L1-11610-41-00
Piston Ring Set (1.00Mm O/s)
Ap |
4L1-11610-41-00 |
— | ||
| replacement | |||||
|
15
|
15
29L-11610-40-00
Piston Ring Set
Ap |
29L-11610-40-00 |
— | ||
|
15
|
15
4L1-11610-01-00 Piston Ring Set (Std) |
4L1-11610-01-00 |
US $134.02 |
||
| replacement | |||||
|
15
|
15
29L-11610-00-00 Piston Ring Set (Std) |
29L-11610-00-00 |
US $134.02 |
||
|
15
|
15
4L1-11610-11-00
Piston Ring Set (0.25Mm O/s)
Ap |
4L1-11610-11-00 |
— | ||
| replacement | |||||
|
15
|
15
29L-11610-10-00
Piston Ring Set(0.25 O/s)
Ap |
29L-11610-10-00 |
— | ||
|
15
|
15
4L1-11610-21-00
Piston Ring Set (0.50Mm O/s)
Ap |
4L1-11610-21-00 |
— | ||
| replacement | |||||
|
15
|
15
29L-11610-20-00
Piston Ring Set(0.50 O/s)
Ap |
29L-11610-20-00 |
— | ||
|
16
|
16
280-11633-00-00 Pin, Piston |
280-11633-00-00 |
from US $20.83 |
||
|
17
|
17
933-10316-H7-00
Bearing
|
933-10316-H7-00 |
— | ||
| replacements | |||||
|
17
|
17
93310-316D5-00 Bearing, Cylindrical(4Dp) |
93310-316D5-00 |
from US $26.92 |
||
|
17
|
17
93310-316C9-00 Bearing, Cylinder#10 |
93310-316C9-00 |
from US $13.24 |
||
|
18
|
18
4V2-11634-00-00 Clip, Piston Pin |
4V2-11634-00-00 |
from US $1.35 |
||
| replacement | |||||
|
18
|
18
934-50171-29-00 Circlip |
934-50171-29-00 |
from US $1.35 |
||
