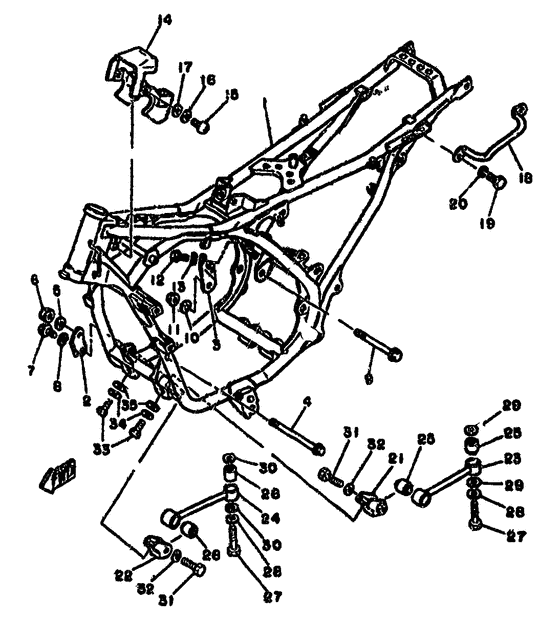

Frame Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-21110-02-33
Frame Comp
|
4L0-21110-02-33 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4L0-21315-00-00
Stay, Engine 1
|
4L0-21315-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
4L0-21316-00-00
Stay, Engine 2
|
4L0-21316-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
90105-10053-00 Bolt, Washer Based |
90105-10053-00 |
from US $8.28 |
||
| replacement | |||||
|
4
|
4
90105-10114-00 Bolt, Flange |
90105-10114-00 |
from US $8.93 |
||
|
5
|
5
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
5
|
5
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
6
|
6
95701-10100-00 Nut, With Washer |
95701-10100-00 |
US $1.07 |
||
| replacements | |||||
|
6
|
6
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
6
|
6
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
7
|
7
97321-08020-00 Bolt |
97321-08020-00 |
from US $2.03 |
||
| replacements | |||||
|
7
|
7
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
7
|
7
97013-08020-00 Bolt |
97013-08020-00 |
from US $1.64 |
||
|
8
|
8
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
9
|
9
90105-10040-00 Bolt, Washer Based |
90105-10040-00 |
from US $7.51 |
||
|
10
|
10
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
10
|
10
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
11
|
11
95701-10100-00 Nut, With Washer |
95701-10100-00 |
US $1.07 |
||
| replacements | |||||
|
11
|
11
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
11
|
11
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
12
|
12
97321-08020-00 Bolt |
97321-08020-00 |
from US $2.03 |
||
| replacements | |||||
|
12
|
12
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
12
|
12
97013-08020-00 Bolt |
97013-08020-00 |
from US $1.64 |
||
|
13
|
13
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
14
|
14
4L0-2139R-00-00
Cover 2
|
4L0-2139R-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
16
|
16
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
90201-06755-00 Washer, Plate |
90201-06755-00 |
US $1.56 |
||
| replacement | |||||
|
17
|
17
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
18
|
18
4L0-21165-00-00
Handle, Standing
|
4L0-21165-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
97306-08016-00 Bolt |
97306-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
20
|
20
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
21
|
21
4L0-21317-00-00
Stay, Engine 3
|
4L0-21317-00-00 |
— | ||
|
22
|
22
4L0-21318-00-00
Stay, Engine 4
|
4L0-21318-00-00 |
— | ||
|
23
|
23
4L0-21314-00-00
Stay, Engine 5
|
4L0-21314-00-00 |
— | ||
| replacement | |||||
|
23
|
23
1UA-21314-00-00
Stay, Engine 5
|
1UA-21314-00-00 |
— | ||
|
24
|
24
4L0-21319-00-00
Stay, Engine 6
|
4L0-21319-00-00 |
— | ||
| replacement | |||||
|
24
|
24
1UA-21319-00-00
Stay, Engine 6
|
1UA-21319-00-00 |
— | ||
|
25
|
25
4L0-21485-00-00 Damper, Rubber 1 |
4L0-21485-00-00 |
from US $7.28 |
||
|
26
|
26
4L0-21485-00-00 Damper, Rubber 1 |
4L0-21485-00-00 |
from US $7.28 |
||
|
27
|
27
97301-10050-00
Bolt,hexagon(676)
|
97301-10050-00 |
— | ||
| replacement | |||||
|
27
|
27
970-13100-50-00
Bolt, Hexagon
|
970-13100-50-00 |
— | ||
|
28
|
28
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
28
|
28
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
29
|
29
92901-10600-00 Washer, Plate |
92901-10600-00 |
US $1.07 |
||
| replacement | |||||
|
29
|
29
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
30
|
30
92901-10600-00 Washer, Plate |
92901-10600-00 |
US $1.07 |
||
| replacement | |||||
|
30
|
30
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
31
|
31
97301-10040-00 Bolt |
97301-10040-00 |
US $9.59 |
||
| replacement | |||||
|
31
|
31
97013-10040-00 Bolt |
97013-10040-00 |
US $9.59 |
||
|
32
|
32
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
32
|
32
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
33
|
33
97301-08016-00 Bolt |
97301-08016-00 |
US $4.53 |
||
| replacement | |||||
|
33
|
33
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
34
|
34
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
34
|
34
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
35
|
35
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
35
|
35
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
