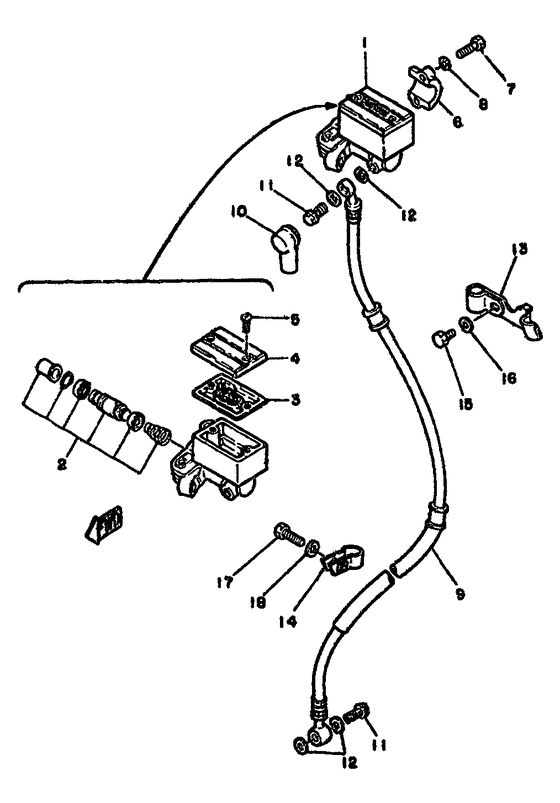

Front master cylinder Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-25850-01-00 Master Cylinder Assy |
4L0-25850-01-00 |
US $240.40 |
||
| replacement | |||||
|
1
|
1
3TB-25870-00-00 Master Cylinder Sub Assembly |
3TB-25870-00-00 |
from US $240.40 |
||
|
2
|
2
4L0-W0041-00-00 Cylinder Kit, Master |
4L0-W0041-00-00 |
from US $60.38 |
||
| replacement | |||||
|
2
|
2
23L-W0041-00-00 Cylinder Kit, Master |
23L-W0041-00-00 |
from US $60.38 |
||
|
3
|
3
4L0-25854-00-00 Gasket, Diaphragm |
4L0-25854-00-00 |
from US $15.58 |
||
|
4
|
4
4L0-25852-00-00 Cap, Reservoir |
4L0-25852-00-00 |
from US $22.10 |
||
| replacement | |||||
|
4
|
4
4H7-25852-00-00 Cap, Reservoir |
4H7-25852-00-00 |
from US $22.10 |
||
|
5
|
5
98706-04010-00 Screw, Flat Head |
98706-04010-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
98707-04010-00 Screw, Flat Head |
98707-04010-00 |
from US $1.70 |
||
|
6
|
6
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
7
|
7
97326-06025-00 Bolt |
97326-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
9
|
9
4L1-25872-00-00
Hose, Brake 1
|
4L1-25872-00-00 |
— | ||
|
10
|
10
4L0-25862-00-00 Boot, Master Cylinder |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
10
|
10
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
11
|
11
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
11
|
11
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
12
|
12
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
13
|
13
90461-12061-00
Clamp
|
90461-12061-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
2R8-25876-00-00 Holder, Brke Hose 2 |
2R8-25876-00-00 |
US $15.57 |
||
| replacements | |||||
|
14
|
14
2R8-25876-20-00 Holder, Brake Hose 2 |
2R8-25876-20-00 |
from US $3.54 |
||
|
14
|
14
4KM-25886-00-00
Holder, Brake Hose
|
4KM-25886-00-00 |
— | ||
|
15
|
15
97306-06012-00 Bolt |
97306-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
15
|
15
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
16
|
16
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
17
|
17
97301-06025-00 Bolt |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
18
|
18
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
