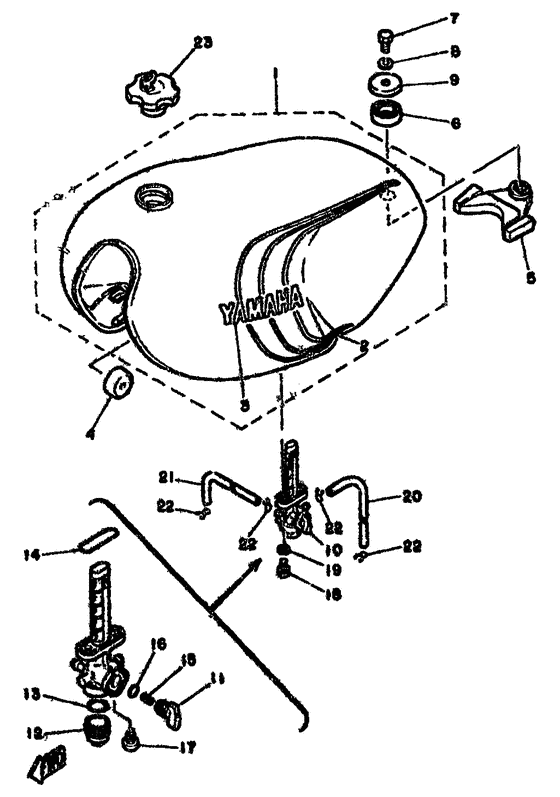

Fuel tank Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-24110-00-01
Fuel Tank Comp
Ur |
4L0-24110-00-01 |
— | ||
| replacement | |||||
|
1
|
1
4L0-24110-01-01
Fuel Tank Comp
Ur |
4L0-24110-01-01 |
— | ||
|
1
|
1
4L0-24110-00-02
Fuel Tank Comp
Ur |
4L0-24110-00-02 |
— | ||
| replacement | |||||
|
1
|
1
4L0-24110-01-02
Fuel Tank Comp
Ur |
4L0-24110-01-02 |
— | ||
|
1
|
1
4L0-24110-00-06
Fuel Tank Comp
Ur |
4L0-24110-00-06 |
— | ||
| replacement | |||||
|
1
|
1
4L0-24110-01-06
Fuel Tank Comp
Ur |
4L0-24110-01-06 |
— | ||
|
2
|
2
4L0-24240-10-00
Graphic Set
Ur |
4L0-24240-10-00 |
— | ||
|
2
|
2
4L0-24240-20-00
Graphic Set
Ur |
4L0-24240-20-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
2
|
2
4L0-24240-00-00
Graphic Set
Ur |
4L0-24240-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
3
|
3
4L0-24161-00-00
Emblem 1
|
4L0-24161-00-00 |
— | ||
| replacement | |||||
|
3
|
3
2J0-24161-20-00 Emblem 1 |
2J0-24161-20-00 |
US $21.35 |
||
|
4
|
4
4L0-24181-00-00 Damper, Locating 1 |
4L0-24181-00-00 |
from US $8.93 |
||
|
5
|
5
4L0-24183-00-00
Damper, Locating 3
|
4L0-24183-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
4L0-24184-00-00 Damper, Locating 4 |
4L0-24184-00-00 |
US $17.71 |
||
|
7
|
7
97302-08012-00 Bolt |
97302-08012-00 |
from US $2.09 |
||
| replacement | |||||
|
7
|
7
97013-08012-00 Bolt |
97013-08012-00 |
from US $3.12 |
||
|
8
|
8
92902-08100-00 Washer, Spring |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
8
|
8
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
9
|
9
90209-08197-00
Washer
|
90209-08197-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
4L0-24500-00-00 Fuel Cock Assembly 1 |
4L0-24500-00-00 |
from US $201.73 |
||
|
11
|
11
4L0-24524-00-00
Lever, Cock
|
4L0-24524-00-00 |
— | ||
|
12
|
12
1A0-24521-01-00 Cup, Filter |
1A0-24521-01-00 |
US $32.87 |
||
|
13
|
13
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
14
|
14
214-24512-00-00 Gasket |
214-24512-00-00 |
from US $21.11 |
||
|
15
|
15
1A0-24529-01-00 Spring |
1A0-24529-01-00 |
from US $4.56 |
||
|
16
|
16
1A0-24512-00-00 Gasket |
1A0-24512-00-00 |
from US $9.85 |
||
|
17
|
17
619-24535-00-00
Screw (1E7)
|
619-24535-00-00 |
— | ||
|
18
|
18
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
19
|
19
902-02060-10-00
Washer Plate 178147660000
|
902-02060-10-00 |
— | ||
| replacement | |||||
|
19
|
19
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
20
|
20
90445-09066-00 Hose (L420) |
90445-09066-00 |
from US $6.52 |
||
| replacement | |||||
|
20
|
20
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
21
|
21
904-45090-89-00
Hose (L420)
|
904-45090-89-00 |
— | ||
| replacements | |||||
|
21
|
21
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
21
|
21
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
22
|
22
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
23
|
23
4L0-24602-01-00 Cap Assy |
4L0-24602-01-00 |
US $82.21 |
||
| replacement | |||||
|
23
|
23
11H-24602-10-00 Cap Assy |
11H-24602-10-00 |
from US $82.21 |
||
