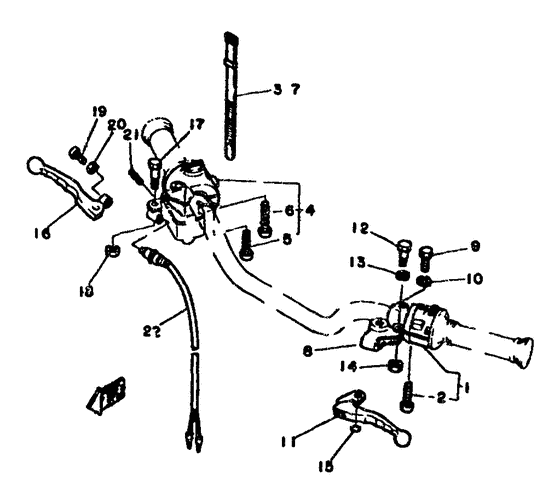

Handle switch & lever Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-83972-00-00 Switch, Handle 4 |
4L0-83972-00-00 |
US $312.24 |
||
|
2
|
2
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
2
|
2
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
3
|
3
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
3
|
3
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
4
|
4
4L0-83975-00-00 Switch, Handle 2 |
4L0-83975-00-00 |
US $265.27 |
||
|
5
|
5
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
5
|
5
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
6
|
6
98506-05040-00 Screw, Pan Head |
98506-05040-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
7
|
7
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
7
|
7
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
8
|
8
341-82911-00-00 Holder, Lever 1 |
341-82911-00-00 |
from US $29.95 |
||
|
9
|
9
97306-06022-00 Bolt |
97306-06022-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
97007-06022-00 Bolt |
97007-06022-00 |
from US $1.34 |
||
|
10
|
10
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
11
|
11
4L0-83912-00-00 Lever 1 |
4L0-83912-00-00 |
US $19.69 |
||
| replacement | |||||
|
11
|
11
2H0-83912-31-00 Lever 1 |
2H0-83912-31-00 |
from US $19.69 |
||
|
12
|
12
90109-06576-00 Bolt |
90109-06576-00 |
from US $4.11 |
||
| replacements | |||||
|
12
|
12
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
12
|
12
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
13
|
13
90201-082A9-00 Washer, Plate |
90201-082A9-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
14
|
14
95606-06100-00 Nut, U |
95606-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
15
|
15
93210-11368-00 O-Ring (2H7) |
93210-11368-00 |
from US $3.54 |
||
|
16
|
16
4L0-83922-00-00 Lever Rh |
4L0-83922-00-00 |
from US $23.09 |
||
|
17
|
17
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.34 |
||
|
18
|
18
95606-06100-00 Nut, U |
95606-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
18
|
18
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
19
|
19
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
90149-06131-00 Screw |
90149-06131-00 |
from US $1.70 |
||
|
20
|
20
90170-06010-00 Nut |
90170-06010-00 |
from US $1.84 |
||
|
21
|
21
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.56 |
||
|
22
|
22
1A0-83980-30-00
Front Stop Switch Assy
|
1A0-83980-30-00 |
— | ||
| replacement | |||||
|
22
|
22
26H-83980-00-00 Front Stop Switch Assy |
26H-83980-00-00 |
from US $64.66 |
||
