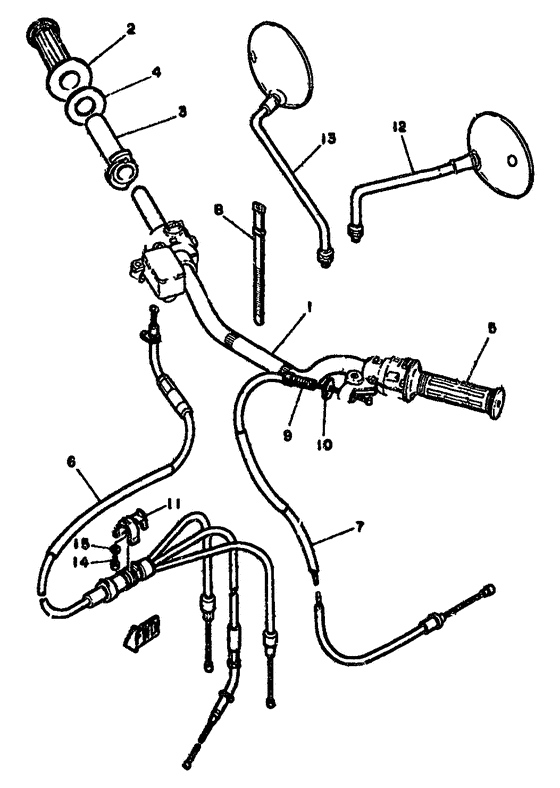

Handlebar. cable Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-26111-00-00
Handlebar
|
4L0-26111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
55K-26110-00-00 Handle Comp |
55K-26110-00-00 |
US $200.13 |
||
|
2
|
2
1A0-26242-01-00 Grip Rh (R.h.) |
1A0-26242-01-00 |
from US $13.46 |
||
|
3
|
3
1A0-26243-01-00
Tube,thrtl Guide
|
1A0-26243-01-00 |
— | ||
| replacement | |||||
|
3
|
3
1GU-26243-00-00 Tube, Throttle Guide |
1GU-26243-00-00 |
from US $29.20 |
||
|
4
|
4
278-26249-00-00
Washer, Plate (1V1-26249-00)
|
278-26249-00-00 |
— | ||
| replacement | |||||
|
4
|
4
90201-261L1-00 Washer, Plate (1V1-26249-00) |
90201-261L1-00 |
from US $2.69 |
||
|
5
|
5
1E6-26241-00-00 Grip Lh (L.h.) |
1E6-26241-00-00 |
from US $15.58 |
||
|
6
|
6
4L0-26260-00-00 Cable Assy, Throttle & Pump |
4L0-26260-00-00 |
US $133.60 |
||
|
7
|
7
4L0-26335-00-00 Cable, clutch |
4L0-26335-00-00 |
US $53.74 |
||
|
8
|
8
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
8
|
8
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
9
|
9
90123-08083-00 Bolt |
90123-08083-00 |
from US $3.40 |
||
| replacements | |||||
|
9
|
9
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
9
|
9
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
10
|
10
90179-08316-00 Nut |
90179-08316-00 |
from US $4.55 |
||
| replacements | |||||
|
10
|
10
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
10
|
10
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
11
|
11
1A0-21364-01-00 Holder, Cable Cylinder |
1A0-21364-01-00 |
US $3.54 |
||
| replacement | |||||
|
11
|
11
90465-10319-00 Clamp |
90465-10319-00 |
from US $3.54 |
||
|
12
|
12
4L0-26280-A0-00
Rear View Mirror Assy(Left)
|
4L0-26280-A0-00 |
— | ||
| replacement | |||||
|
12
|
12
10W-26280-A0-00
Rear View Mirror Assy(Left)
|
10W-26280-A0-00 |
— | ||
|
13
|
13
4L0-26290-E0-00
Rear View Mirror Assy (Right)
|
4L0-26290-E0-00 |
— | ||
| replacement | |||||
|
13
|
13
10W-26290-E0-00
Rear View Mirror Assy(Right)
|
10W-26290-E0-00 |
— | ||
|
14
|
14
98506-04012-00 Screw, Pan Head |
98506-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
15
|
15
92906-04100-00 Washer, Spring |
92906-04100-00 |
from US $1.21 |
||
| replacements | |||||
|
15
|
15
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
