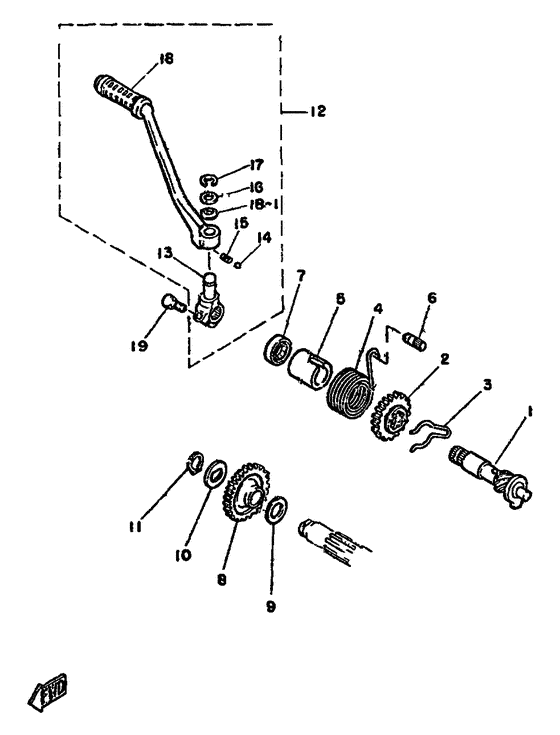

Kick starter Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-15660-00-00 Kick Axle Assy |
4L0-15660-00-00 |
from US $80.37 |
||
| replacement | |||||
|
1
|
1
4L0-15660-01-00 Kick Axle Assy |
4L0-15660-01-00 |
from US $132.80 |
||
|
1
|
1
90208-15031-00
Washer, Conical Spring
|
90208-15031-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4L0-15641-00-00 Gear, Kick |
4L0-15641-00-00 |
from US $75.64 |
||
|
3
|
3
90468-26091-00 Clip |
90468-26091-00 |
from US $3.68 |
||
|
4
|
4
90508-30051-00 Spring Torsion 278156650000 |
90508-30051-00 |
from US $10.34 |
||
|
5
|
5
4L0-15666-00-00 Spacer |
4L0-15666-00-00 |
from US $16.05 |
||
|
6
|
6
248-15668-00-00 Stopper |
248-15668-00-00 |
from US $2.32 |
||
|
7
|
7
93104-20007-00 Oil Seal, So-Type |
93104-20007-00 |
from US $2.66 |
||
|
8
|
8
4L0-15651-00-00 Gear, Kick Idle |
4L0-15651-00-00 |
from US $48.94 |
||
|
9
|
9
164-17417-00-10 Shim 1 |
164-17417-00-10 |
from US $3.68 |
||
|
10
|
10
90214-15020-00 Washer, Claw |
90214-15020-00 |
from US $2 |
||
|
11
|
11
93410-15005-00 Circlip |
93410-15005-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
12
|
12
4L0-15620-01-00
Kick Crank Assy
|
4L0-15620-01-00 |
— | ||
| replacement | |||||
|
12
|
12
51L-15620-01-00 Kick Crank Assembly (51L-15620- |
51L-15620-01-00 |
US $225.86 |
||
|
13
|
13
4L0-15621-00-00
Boss, Kick Crank
|
4L0-15621-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
93507-32009-00 Ball 7-32 |
93507-32009-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.66 |
||
|
15
|
15
90501-12081-00 Spring, Compression |
90501-12081-00 |
from US $1.56 |
||
|
16
|
16
90201-154E8-00 Washer, Plate (4L0) |
90201-154E8-00 |
from US $1.84 |
||
|
17
|
17
93430-10034-00 Circlip |
93430-10034-00 |
from US $1.35 |
||
| replacement | |||||
|
17
|
17
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
18
|
18
156-15618-01-00 Cover, Kick Lever |
156-15618-01-00 |
from US $2 |
||
|
19
|
19
97326-08030-00 Bolt |
97326-08030-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
