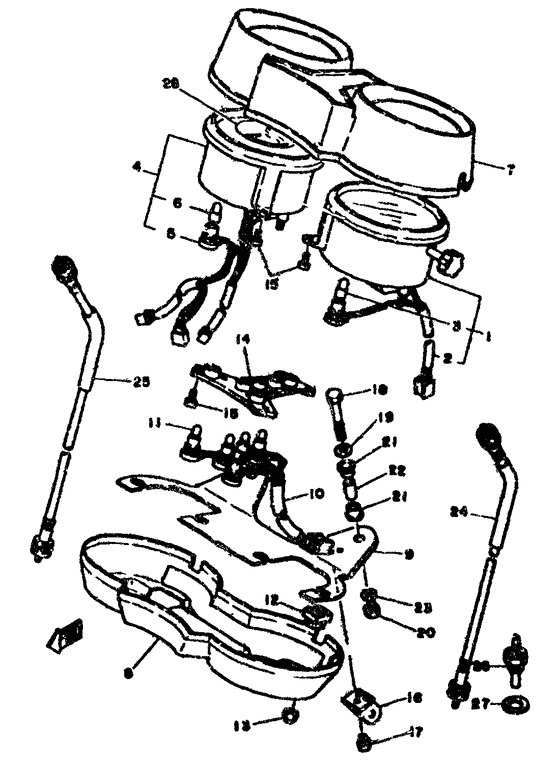

Meter Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
*4
|
*4
4L0-83540-F1-00
Tachometer Assy
|
4L0-83540-F1-00 |
— | ||
| replacement | |||||
|
*4
|
*4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
4L0-83570-G0-00
Speedometer Assy
|
4L0-83570-G0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4L0-83509-00-00
Socket Cord Assy
|
4L0-83509-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
4R0-83517-00-00 Bulb (12V-3.4W T10) |
4R0-83517-00-00 |
US $4.25 |
||
| replacements | |||||
|
3
|
3
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
3
|
3
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
|
5
|
5
4L0-83509-10-00
Socket Cord Assy
|
4L0-83509-10-00 |
— | ||
|
6
|
6
4R0-83517-00-00 Bulb (12V-3.4W T10) |
4R0-83517-00-00 |
US $4.25 |
||
| replacements | |||||
|
6
|
6
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
6
|
6
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
|
7
|
7
4L0-83559-00-00 Cover, Meter |
4L0-83559-00-00 |
US $133.60 |
||
| replacement | |||||
|
7
|
7
4L3-83559-00-00 Cover, Meter |
4L3-83559-00-00 |
US $133.60 |
||
|
8
|
8
4L0-83559-10-00 Cover, Meter |
4L0-83559-10-00 |
US $133.60 |
||
|
9
|
9
4L0-83519-00-00
Bracket, Meter
|
4L0-83519-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
4L0-83509-20-00
Socket Cord Assy
|
4L0-83509-20-00 |
— | ||
| replacement | |||||
|
10
|
10
4L3-83509-10-00
Socket Cord Assy
|
4L3-83509-10-00 |
— | ||
|
11
|
11
4R0-83517-00-00 Bulb (12V-3.4W T10) |
4R0-83517-00-00 |
US $4.25 |
||
| replacements | |||||
|
11
|
11
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
11
|
11
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
|
12
|
12
4H7-83523-00-00
Damper
|
4H7-83523-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
95301-05800-00 Nut (Crown) |
95301-05800-00 |
US $1.56 |
||
| replacement | |||||
|
13
|
13
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
|
14
|
14
4L0-83574-00-00
Bracket, Indicator Light 1
|
4L0-83574-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
97701-30112-00 Screw, Tapping |
97701-30112-00 |
US $2.13 |
||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
4L0-83545-00-00
Bracket, Tachometer
|
4L0-83545-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
| replacements | |||||
|
17
|
17
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
17
|
17
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
17
|
17
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
17
|
17
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
18
|
18
97306-06045-00 Bolt |
97306-06045-00 |
from US $1.98 |
||
| replacement | |||||
|
18
|
18
97017-06045-00 Bolt |
97017-06045-00 |
from US $1.98 |
||
|
19
|
19
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
20
|
20
95306-06600-00 Nut |
95306-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
20
|
20
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
21
|
21
584-83541-00-00 Damper |
584-83541-00-00 |
from US $11.03 |
||
|
22
|
22
90387-06249-00 Collar |
90387-06249-00 |
from US $1.28 |
||
|
23
|
23
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
24
|
24
4L0-83550-00-00 Speedometer Cable Assy |
4L0-83550-00-00 |
from US $30.24 |
||
| replacement | |||||
|
24
|
24
3VP-83550-02-00 Speedometer Cable Assy |
3VP-83550-02-00 |
from US $30.46 |
||
|
25
|
25
4L0-83560-00-00 Tachometer Cable Assy |
4L0-83560-00-00 |
US $81.10 |
||
| replacement | |||||
|
25
|
25
2E7-83560-19-00 Tachometer Cable Assy |
2E7-83560-19-00 |
US $59.23 |
||
|
26
|
26
4L0-83591-00-00
Thermo Unit
|
4L0-83591-00-00 |
— | ||
|
27
|
27
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
27
|
27
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
28
|
28
4L0-83585-00-00
Label
|
4L0-83585-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
