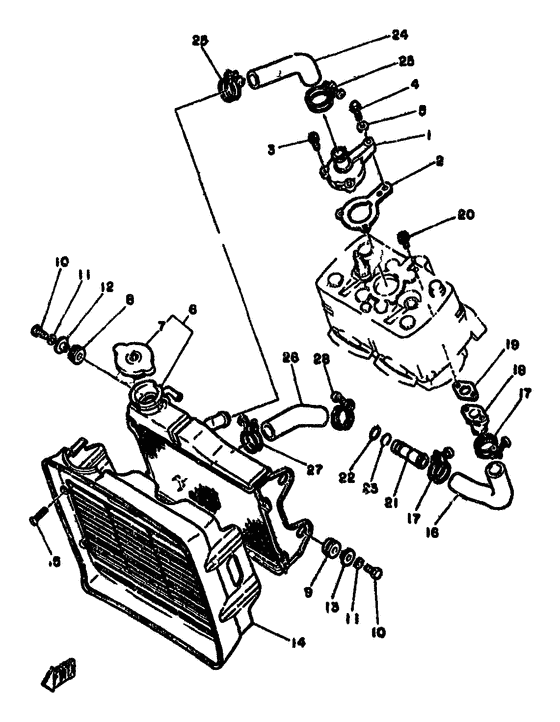

Radiator & hose Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-12446-00-00
Joint
|
4L0-12446-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4L0-12414-00-00 Gasket, Cover |
4L0-12414-00-00 |
US $24.79 |
||
| replacement | |||||
|
2
|
2
4L0-12414-10-00 Gasket, Cover |
4L0-12414-10-00 |
US $19.53 |
||
|
3
|
3
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
3
|
3
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
4
|
4
90105-08165-00 Bolt, Flange |
90105-08165-00 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
5
|
5
90201-082A6-00 Washer, Plate |
90201-082A6-00 |
from US $1.34 |
||
|
6
|
6
4L0-12460-00-00
Radiator Assy
|
4L0-12460-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
4L0-12462-00-00 Cap, Radiator |
4L0-12462-00-00 |
from US $69.91 |
||
| replacement | |||||
|
7
|
7
11H-12462-00-00 Cap, Radiator |
11H-12462-00-00 |
from US $69.91 |
||
|
8
|
8
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
|
9
|
9
90480-19283-00 Grommet |
90480-19283-00 |
from US $4.11 |
||
|
10
|
10
973-06060-20-00
Bolt
|
973-06060-20-00 |
— | ||
| replacements | |||||
|
10
|
10
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
10
|
10
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
11
|
11
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
12
|
12
90387-07037-00 Collar |
90387-07037-00 |
from US $3.54 |
||
|
13
|
13
90387-06033-00 Collar |
90387-06033-00 |
from US $3.83 |
||
|
14
|
14
4L0-12467-00-00 Cover, Radiator |
4L0-12467-00-00 |
US $265.27 |
||
|
15
|
15
98906-05025-00 Screw, Bind |
98906-05025-00 |
US $1.70 |
||
| replacement | |||||
|
15
|
15
98907-05025-00 Screw, Binding |
98907-05025-00 |
from US $0.59 |
||
|
16
|
16
4L0-12481-00-00
Pipe 1
|
4L0-12481-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
90460-30158-00 Hose Clamp Assy |
90460-30158-00 |
from US $4.39 |
||
| replacement | |||||
|
17
|
17
90450-32015-00 Hose Clamp Assy |
90450-32015-00 |
from US $4.39 |
||
|
18
|
18
4L0-12479-00-00 Joint |
4L0-12479-00-00 |
from US $11.92 |
||
|
19
|
19
4L0-12435-00-00 Gasket |
4L0-12435-00-00 |
from US $3.71 |
||
| replacement | |||||
|
19
|
19
3XV-12435-00-00 Gasket |
3XV-12435-00-00 |
from US $1.66 |
||
|
20
|
20
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
20
|
20
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
21
|
21
4L0-12469-00-00
Joint 1
|
4L0-12469-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
93210-17239-00 O-Ring |
93210-17239-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
93210-16314-00 O-Ring |
93210-16314-00 |
from US $1.66 |
||
|
23
|
23
93440-19083-00 Circlip |
93440-19083-00 |
from US $2 |
||
|
24
|
24
4L0-12482-00-00
Pipe 2
|
4L0-12482-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
90460-30158-00 Hose Clamp Assy |
90460-30158-00 |
from US $4.39 |
||
| replacement | |||||
|
25
|
25
90450-32015-00 Hose Clamp Assy |
90450-32015-00 |
from US $4.39 |
||
|
26
|
26
4L0-12484-00-00
Pipe 4
|
4L0-12484-00-00 |
— | ||
|
27
|
27
90460-30158-00 Hose Clamp Assy |
90460-30158-00 |
from US $4.39 |
||
| replacement | |||||
|
27
|
27
90450-32015-00 Hose Clamp Assy |
90450-32015-00 |
from US $4.39 |
||
|
28
|
28
90460-33159-00 Hose Clamp Assy |
90460-33159-00 |
from US $5.24 |
||
| replacement | |||||
|
28
|
28
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
