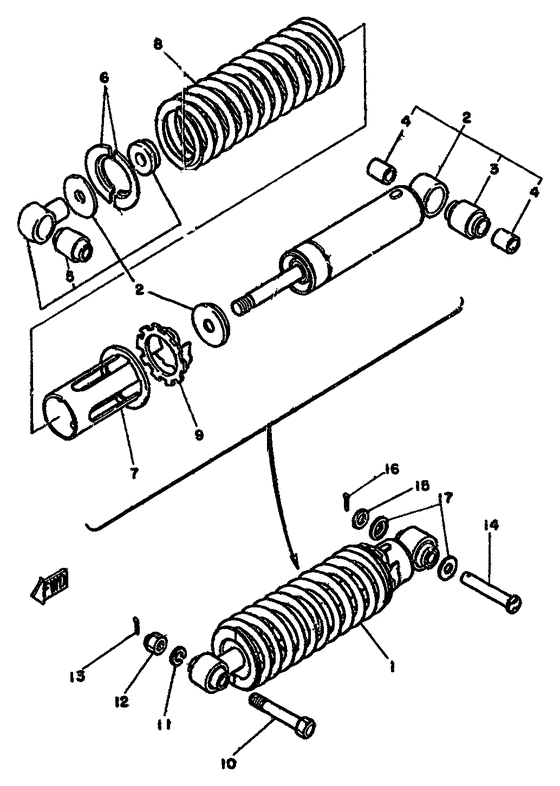

Rear suspension Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
*1
|
*1
4L0-22210-10-00
Shock Absorber Assy, Rear
|
4L0-22210-10-00 |
— | ||
| replacement | |||||
|
*1
|
*1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
*8
|
*8
4L0-22212-10-00
Spring
|
4L0-22212-10-00 |
— | ||
| replacement | |||||
|
*8
|
*8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4L0-22401-00-00
Damper Sub Assy
|
4L0-22401-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
3R4-22226-00-00 Bush, Shock Abs Lwr |
3R4-22226-00-00 |
from US $38.97 |
||
|
4
|
4
90380-12051-00 Bush, Solid |
90380-12051-00 |
from US $5.67 |
||
|
5
|
5
1W1-22216-00-00 Bush, Rear Shock Absorber |
1W1-22216-00-00 |
from US $27.77 |
||
| replacement | |||||
|
5
|
5
1YW-22216-00-00 Bush, Rear Shock Absorber |
1YW-22216-00-00 |
from US $27.77 |
||
|
6
|
6
3R4-22214-00-00 Guide, Spring 1 |
3R4-22214-00-00 |
from US $12.29 |
||
| replacement | |||||
|
6
|
6
3P6-22214-10-00 Guide, Spring 1 |
3P6-22214-10-00 |
from US $9.85 |
||
|
7
|
7
1W1-22224-00-00
Guide, Spring 2
|
1W1-22224-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
4L0-22406-00-00
Spring Seat Sb/assembly
|
4L0-22406-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
90102-12042-00
Bolt, With Hole
|
90102-12042-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
929-02121-00-00
Washer, Spring
|
929-02121-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
12
|
12
95302-12700-00 Nut, Hex |
95302-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.13 |
||
|
13
|
13
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
13
|
13
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
14
|
14
90240-12075-00 Pin, Clevis |
90240-12075-00 |
from US $9.07 |
||
|
15
|
15
92902-12600-00 Washer, Plate |
92902-12600-00 |
from US $1.26 |
||
| replacement | |||||
|
15
|
15
92907-12600-00 Washer, Plate |
92907-12600-00 |
from US $1.42 |
||
|
16
|
16
91401-30022-00 Pin, Cotter |
91401-30022-00 |
US $1.42 |
||
| replacements | |||||
|
16
|
16
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
16
|
16
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
|
17
|
17
1W1-22128-00-00 Cover, Thrust 1 |
1W1-22128-00-00 |
from US $10.48 |
||
