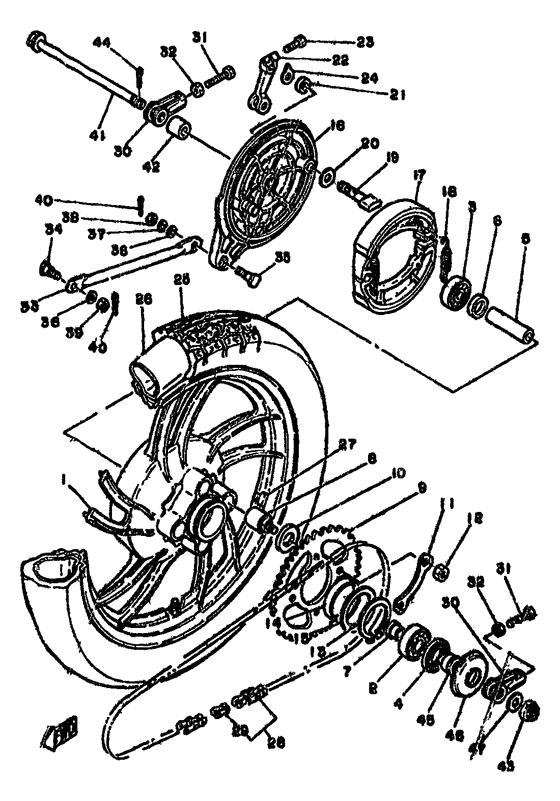

Rear wheel Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L1-25338-30-98
Cast Wheel, Rear
|
4L1-25338-30-98 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
93306-30404-00 Bearing |
93306-30404-00 |
from US $13.32 |
||
| replacement | |||||
|
2
|
2
933-06304-37-00 Bearing |
933-06304-37-00 |
from US $13.32 |
||
|
3
|
3
93306-30206-00 Bearing |
93306-30206-00 |
from US $20.54 |
||
| replacement | |||||
|
3
|
3
93306-30212-00 Bearing |
93306-30212-00 |
from US $15.88 |
||
|
4
|
4
93104-27026-00 Oil Seal, So-Type |
93104-27026-00 |
from US $10.91 |
||
|
5
|
5
90387-154A0-00
Collar
|
90387-154A0-00 |
— | ||
|
6
|
6
2R6-25115-00-00 Flange, Spacer |
2R6-25115-00-00 |
from US $5.99 |
||
| replacement | |||||
|
6
|
6
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
7
|
7
2R6-25377-00-00
Collar, Wheel
|
2R6-25377-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
4L1-25364-00-00
Damper
|
4L1-25364-00-00 |
— | ||
|
9
|
9
4L1-25441-20-33
Sprocket, Driven (41T)
|
4L1-25441-20-33 |
— | ||
| replacement | |||||
|
9
|
9
4L1-25441-20-00
Sprocket, Driven
|
4L1-25441-20-00 |
— | ||
|
10
|
10
90387-20565-00
Collar
|
90387-20565-00 |
— | ||
|
11
|
11
4L0-25412-00-00 Washer |
4L0-25412-00-00 |
from US $6.10 |
||
|
12
|
12
95302-10700-00 Nut, Hexagon |
95302-10700-00 |
US $7.37 |
||
| replacements | |||||
|
12
|
12
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
12
|
12
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
13
|
13
93410-65040-00
Circlip, S-Type
|
93410-65040-00 |
— | ||
|
14
|
14
90381-66025-00
Bush, Solid
|
90381-66025-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90201-66585-00
Washer, Plate
|
90201-66585-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
4L0-25321-00-98
Plate, Brake Shoe
|
4L0-25321-00-98 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
4L0-25330-00-00
Brake Shoe Comp
|
4L0-25330-00-00 |
— | ||
| replacement | |||||
|
17
|
17
5R3-W253E-00-00 Brake Shoe Kit |
5R3-W253E-00-00 |
from US $62.45 |
||
|
18
|
18
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2 |
||
|
19
|
19
4L0-25351-00-00 Camshaft |
4L0-25351-00-00 |
from US $29.38 |
||
|
20
|
20
148-25353-00-00 Shim, Camshaft |
148-25353-00-00 |
from US $2.98 |
||
|
21
|
21
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
22
|
22
1L9-25355-00-00
Lever, Camshaft
|
1L9-25355-00-00 |
— | ||
|
23
|
23
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
24
|
24
3Y6-2533A-01-00 Plate, Indicator |
3Y6-2533A-01-00 |
from US $2.55 |
||
| replacement | |||||
|
24
|
24
5AD-F533A-00-00
Plate, Indicator
|
5AD-F533A-00-00 |
— | ||
|
25
|
25
94135-18628-00
Tire
|
94135-18628-00 |
— | ||
|
26
|
26
94235-18085-00 Tube (2.75-18) |
94235-18085-00 |
US $22.55 |
||
| replacement | |||||
|
26
|
26
94232-18113-00 Tube |
94232-18113-00 |
from US $23.82 |
||
|
27
|
27
1A1-25398-01-00 Balancer, Wheel (10G)Un |
1A1-25398-01-00 |
from US $7.65 |
||
| replacement | |||||
|
27
|
27
5MT-25398-00-00 Balancer, Wheel (10G)Un |
5MT-25398-00-00 |
from US $7.65 |
||
|
27
|
27
1A1-25399-00-00 Balancer, Wheel (10G)Un |
1A1-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
27
|
27
5MT-25398-00-00 Balancer, Wheel (10G)Un |
5MT-25398-00-00 |
from US $7.65 |
||
|
27
|
27
2M0-25399-00-00 Balancer, Wheel (30G)Un |
2M0-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
27
|
27
5MT-25398-00-00 Balancer, Wheel (10G)Un |
5MT-25398-00-00 |
from US $7.65 |
||
|
28
|
28
94580-32102-00
Chain (Did50Hdl 102L)
|
94580-32102-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
94680-32031-00
Joint, Chain
|
94680-32031-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
4L0-25389-00-00 Puller, Chain 2 |
4L0-25389-00-00 |
from US $38.27 |
||
|
31
|
31
90101-08034-00 Bolt |
90101-08034-00 |
from US $3.42 |
||
| replacements | |||||
|
31
|
31
90101-08060-00 Bolt |
90101-08060-00 |
from US $3.54 |
||
|
31
|
31
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.66 |
||
|
32
|
32
95301-08700-00 Nut |
95301-08700-00 |
US $1.42 |
||
| replacement | |||||
|
32
|
32
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
33
|
33
4L0-25371-00-00
Bar, Tension
|
4L0-25371-00-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
90109-08375-00
Bolt
|
90109-08375-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
90109-08184-00
Bolt
|
90109-08184-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
929-01082-00-00
Washer, Plain
|
929-01082-00-00 |
— | ||
| replacements | |||||
|
36
|
36
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
36
|
36
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
37
|
37
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
37
|
37
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
38
|
38
95301-08700-00 Nut |
95301-08700-00 |
US $1.42 |
||
| replacement | |||||
|
38
|
38
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
39
|
39
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $1.84 |
||
|
40
|
40
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
40
|
40
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
40
|
40
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
41
|
41
4L0-25381-00-00
Axle, Wheel
|
4L0-25381-00-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
4L0-25383-00-00
Collar, Wheel
|
4L0-25383-00-00 |
— | ||
| replacement | |||||
|
42
|
42
90387-15115-00
Collar
|
90387-15115-00 |
— | ||
|
43
|
43
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
43
|
43
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
44
|
44
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
44
|
44
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
45
|
45
90387-156A8-00
Collar
|
90387-156A8-00 |
— | ||
| replacement | |||||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
1L9-25367-00-00
Cover, Hub Dust
|
1L9-25367-00-00 |
— | ||
|
47
|
47
92901-14200-00 Washer, Plain |
92901-14200-00 |
US $1.42 |
||
| replacement | |||||
|
47
|
47
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
