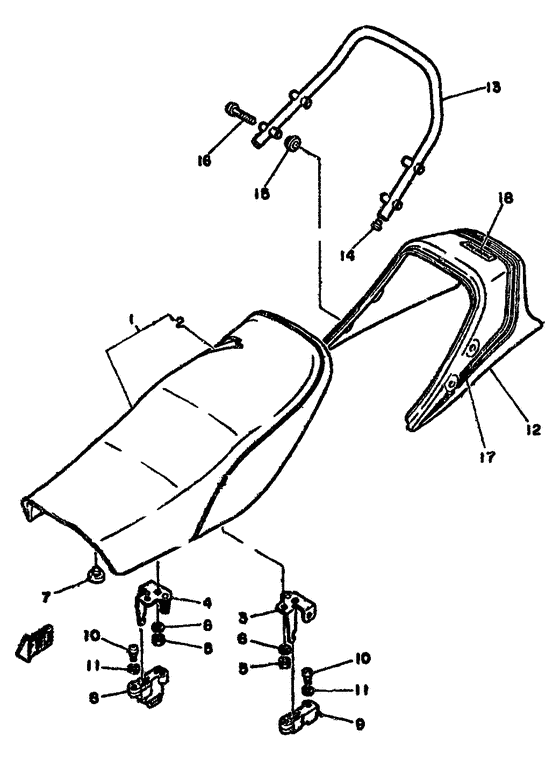

Seat Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-W2472-00-00
Double Seat Assy
|
4L0-W2472-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4L3-W2472-00-00
Double Seat Assy
|
4L3-W2472-00-00 |
— | ||
|
2
|
2
4L0-24731-00-00
Cover, Seat
|
4L0-24731-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
4L0-24728-00-00
Bracket, Seat
|
4L0-24728-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4L0-24728-10-00
Bracket, Seat
|
4L0-24728-10-00 |
— | ||
|
4
|
4
4L0-24738-00-00
Bracket, Seat
|
4L0-24738-00-00 |
— | ||
| replacement | |||||
|
4
|
4
4L0-24738-10-00
Bracket, Seat
|
4L0-24738-10-00 |
— | ||
|
5
|
5
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
5
|
5
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
6
|
6
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
116-24741-00-00 Pad, Seat |
116-24741-00-00 |
from US $11.29 |
||
|
8
|
8
4L0-24705-00-00
Seat Lock Assembly
|
4L0-24705-00-00 |
— | ||
|
9
|
9
4L0-24760-00-00
Seat Lever Assembly
|
4L0-24760-00-00 |
— | ||
|
10
|
10
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
11
|
11
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
4L0-24756-00-36
Cover, Tail
Ur |
4L0-24756-00-36 |
— | ||
|
12
|
12
4L0-24756-00-6G
Cover, Tail
Ur |
4L0-24756-00-6G |
— | ||
|
13
|
13
4L0-24773-00-00
Handle, Seat
|
4L0-24773-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90338-15110-00 Plug |
90338-15110-00 |
from US $1.84 |
||
|
15
|
15
1T4-24796-00-00 Cover |
1T4-24796-00-00 |
from US $6.25 |
||
|
16
|
16
90149-08156-00 Screw |
90149-08156-00 |
from US $5.53 |
||
| replacement | |||||
|
16
|
16
92013-08045-00 Screw (25G) |
92013-08045-00 |
from US $3.40 |
||
|
17
|
17
4L0-24757-01-00
Graphic, Tail Cover
Ur |
4L0-24757-01-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
17
|
17
4L0-24757-11-00
Graphic, Tail Cover
Ur |
4L0-24757-11-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
17
|
17
4L0-24757-20-00
Graphic, Tail Cover
Ur |
4L0-24757-20-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
18
|
18
353-24786-01-00 EmblemEmblem,tail cover |
353-24786-01-00 |
US $7.65 |
||
| replacements | |||||
|
18
|
18
3WF-2153E-10-00 Emblem, Yamaha |
3WF-2153E-10-00 |
from US $7.65 |
||
|
18
|
18
3WF-2153E-11-00 |
3WF-2153E-11-00 |
from US $7.65 |
||
