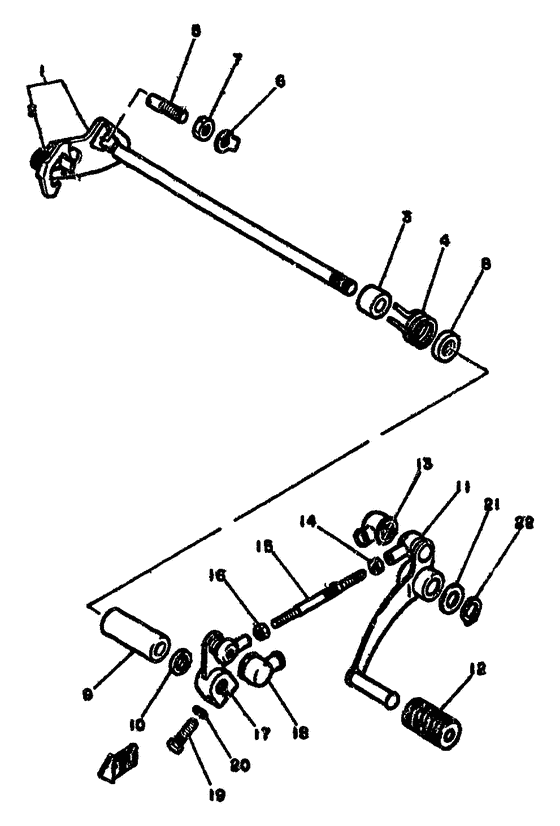

Shift shaft. pedal Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-18101-00-00 Shift Shaft Assy |
4L0-18101-00-00 |
from US $82.58 |
||
| replacement | |||||
|
1
|
1
2GU-18101-00-00 Shift Shaft Assy |
2GU-18101-00-00 |
from US $43.98 |
||
|
2
|
2
90508-09420-00 Spring, Torsion |
90508-09420-00 |
from US $2.59 |
||
|
3
|
3
90560-12171-00
Spacer
|
90560-12171-00 |
— | ||
|
4
|
4
90508-32374-00 Spring, Torsion |
90508-32374-00 |
from US $6.09 |
||
|
5
|
5
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
6
|
6
90215-08174-00 Washer, Lock |
90215-08174-00 |
from US $3.12 |
||
|
7
|
7
90170-08029-00 Nut, Hexagon |
90170-08029-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
8
|
8
931-01120-04-00
Oil Seal (Sd 12-22-5 Hs)
|
931-01120-04-00 |
— | ||
| replacements | |||||
|
8
|
8
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $4.53 |
||
|
8
|
8
93102-12106-00 Oil Seal (Sd 12-22-5 Hs) |
93102-12106-00 |
from US $2.98 |
||
|
9
|
9
90560-12200-00
Spacer
|
90560-12200-00 |
— | ||
|
10
|
10
93104-11056-00 Oil Seal |
93104-11056-00 |
from US $4.68 |
||
| replacement | |||||
|
10
|
10
93104-12003-00 Oil Seal |
93104-12003-00 |
from US $4.68 |
||
|
11
|
11
4L0-18111-00-00
Pedal, Shift
|
4L0-18111-00-00 |
— | ||
|
12
|
12
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $1.66 |
||
|
13
|
13
2H9-18154-00-00 Cover, Dust |
2H9-18154-00-00 |
from US $5.10 |
||
|
14
|
14
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
14
|
14
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
14
|
14
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
15
|
15
4L0-18115-00-00
Rod, Shift
|
4L0-18115-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.70 |
||
|
17
|
17
4L0-18112-00-00 Arm, Shift |
4L0-18112-00-00 |
US $105.97 |
||
| replacement | |||||
|
17
|
17
29L-18112-00-00 Arm, Shift |
29L-18112-00-00 |
from US $105.97 |
||
|
18
|
18
2H9-18154-00-00 Cover, Dust |
2H9-18154-00-00 |
from US $5.10 |
||
|
19
|
19
97311-06020-00 Bolt |
97311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
20
|
20
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
21
|
21
90201-12174-00 Washer, Plate |
90201-12174-00 |
from US $1.84 |
||
| replacements | |||||
|
21
|
21
90201-12047-00 Washer, Plate |
90201-12047-00 |
from US $1.84 |
||
|
21
|
21
90201-12749-00 Washer, Plate |
90201-12749-00 |
from US $1.84 |
||
|
22
|
22
93410-12003-00 Circlip |
93410-12003-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
99009-12400-00 Circlip |
99009-12400-00 |
from US $1.56 |
||
