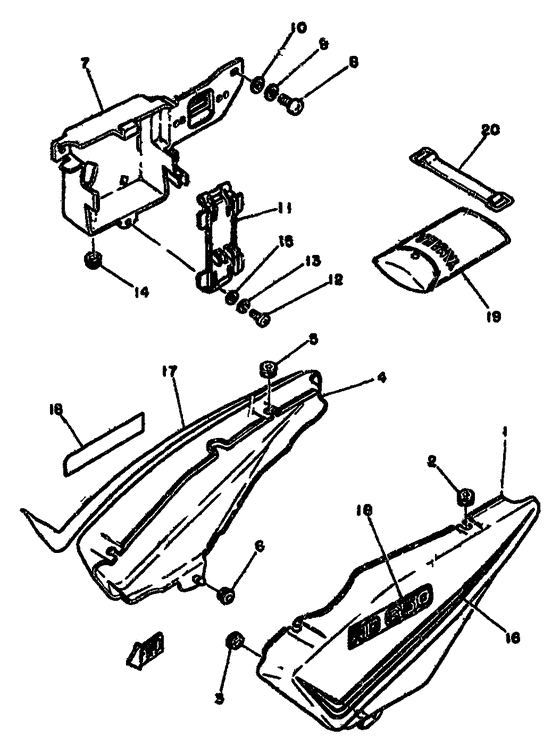

Side cover. tool Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-21711-00-36
Cover, Side 1
Ur |
4L0-21711-00-36 |
— | ||
|
1
|
1
4L0-21711-00-6G
Cover, Side 1
Ur |
4L0-21711-00-6G |
— | ||
| replacement | |||||
|
1
|
1
4L3-21711-00-00
Cover, Side (L.h)
Ur |
4L3-21711-00-00 |
— | ||
|
2
|
2
90480-12014-00 Grommet |
90480-12014-00 |
from US $1.56 |
||
| replacement | |||||
|
2
|
2
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.56 |
||
|
3
|
3
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
3
|
3
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $2.83 |
||
|
4
|
4
4L0-21721-00-36
Cover, Side 2
Ur |
4L0-21721-00-36 |
— | ||
|
4
|
4
4L0-21721-00-6G
Cover, Side 2
Ur |
4L0-21721-00-6G |
— | ||
| replacement | |||||
|
4
|
4
4L3-21721-00-00
Cover, Side (R.h)
Ur |
4L3-21721-00-00 |
— | ||
|
5
|
5
90480-12014-00 Grommet |
90480-12014-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.56 |
||
|
6
|
6
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
6
|
6
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $2.83 |
||
|
7
|
7
4L0-21171-00-00
Box
|
4L0-21171-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
8
|
8
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
9
|
9
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
90201-06755-00 Washer, Plate |
90201-06755-00 |
US $1.56 |
||
| replacement | |||||
|
10
|
10
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
11
|
11
4L0-21543-00-00
Plate 1
|
4L0-21543-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4L0-21543-01-00
Plate 1
|
4L0-21543-01-00 |
— | ||
|
12
|
12
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
12
|
12
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
12
|
12
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
13
|
13
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
13
|
13
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
14
|
14
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $2.83 |
||
|
15
|
15
92902-05200-00 Washer, Plain |
92902-05200-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
16
|
16
4L0-21784-00-00
Emblem 4
Ur |
4L0-21784-00-00 |
— | ||
|
16
|
16
4L0-21784-10-00
Emblem 4
Ur |
4L0-21784-10-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
16
|
16
4L0-21784-20-00
Emblem 4
Ur |
4L0-21784-20-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
17
|
17
4L0-21785-00-00
Emblem 5
Ur |
4L0-21785-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
17
|
17
4L0-21785-10-00
Emblem 5
Ur |
4L0-21785-10-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
17
|
17
4L0-21785-20-00
Emblem 5
Ur |
4L0-21785-20-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
18
|
18
4L1-21783-00-00
Emblem 3
|
4L1-21783-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
4L0-28100-10-00
Tool Kit
|
4L0-28100-10-00 |
— | ||
| replacement | |||||
|
19
|
19
1KT-W2810-01-00
Tool Kit
|
1KT-W2810-01-00 |
— | ||
|
20
|
20
116-82131-00-00 Band, Battery |
116-82131-00-00 |
from US $10.48 |
||
