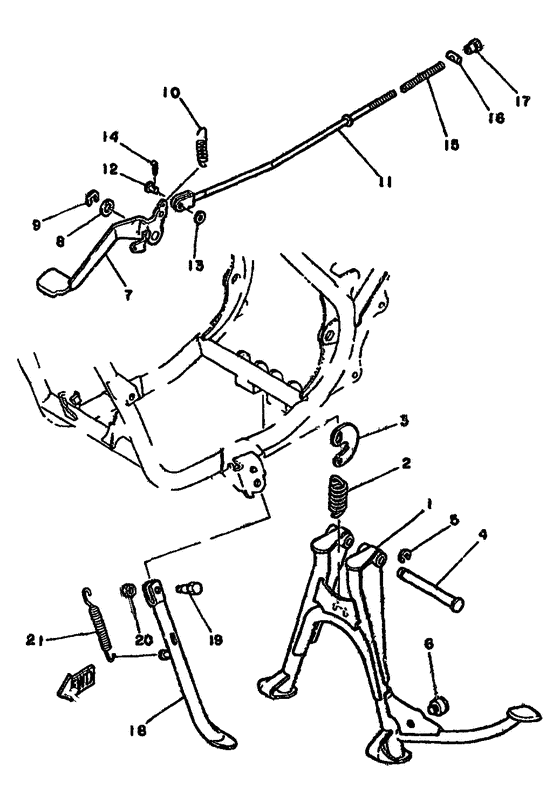

Stand Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-27111-01-33
Stand, Main
|
4L0-27111-01-33 |
— | ||
|
2
|
2
90506-45222-00 Spring, Tension |
90506-45222-00 |
from US $13.46 |
||
|
3
|
3
4L0-27115-00-00
Link, Main Stand
|
4L0-27115-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
4L0-27112-01-00
Shaft, Main Stand
|
4L0-27112-01-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
93430-12008-00 Circlip |
93430-12008-00 |
from US $1.34 |
||
|
6
|
6
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $7.23 |
||
|
7
|
7
4L0-27211-00-00
Pedal, Brake
|
4L0-27211-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90201-14212-00 Washer, Plate |
90201-14212-00 |
from US $2.55 |
||
|
9
|
9
93430-10015-00 Circlip |
93430-10015-00 |
from US $2.41 |
||
|
10
|
10
90506-20221-00 Spring, Tension |
90506-20221-00 |
US $8.78 |
||
|
11
|
11
4L0-27231-01-00
Rod, Brake
|
4L0-27231-01-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
90240-06006-00 Pin, Clevis |
90240-06006-00 |
from US $3.68 |
||
|
13
|
13
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
13
|
13
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
14
|
14
91401-25012-00 Pin, Cotter |
91401-25012-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
15
|
15
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
16
|
16
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
17
|
17
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
18
|
18
4L0-27311-01-00
Stand, Side
|
4L0-27311-01-00 |
— | ||
| replacement | |||||
|
18
|
18
4L0-27311-02-00
Stand, Side
|
4L0-27311-02-00 |
— | ||
|
19
|
19
90109-08034-00 Bolt |
90109-08034-00 |
from US $4.68 |
||
|
20
|
20
95301-08700-00 Nut |
95301-08700-00 |
US $1.42 |
||
| replacement | |||||
|
20
|
20
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
21
|
21
90507-29032-00 Spring, Tension |
90507-29032-00 |
from US $16.58 |
||
