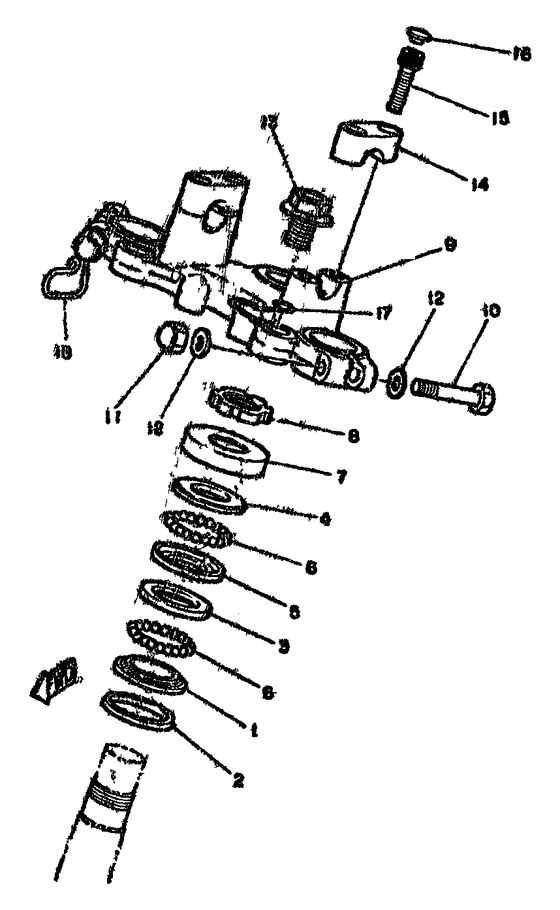

Steering Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
1
|
1
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
2
|
2
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.25 |
||
|
3
|
3
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
4
|
4
183-23411-00-00 Race, Ball 1 |
183-23411-00-00 |
from US $6.23 |
||
| replacement | |||||
|
4
|
4
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.23 |
||
|
5
|
5
183-23412-00-00 Race, Ball 2 |
183-23412-00-00 |
from US $6.09 |
||
| replacements | |||||
|
5
|
5
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.09 |
||
|
5
|
5
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
5
|
5
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
6
|
6
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
8
|
8
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
8
|
8
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
8
|
8
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
9
|
9
4L0-23435-00-98
Crown, Handle
|
4L0-23435-00-98 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
10
|
10
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.24 |
||
|
11
|
11
95303-08800-00 Nut (Crown) (93501-08800-00) |
95303-08800-00 |
from US $3.12 |
||
|
12
|
12
92903-08600-00 Washer, Plate |
92903-08600-00 |
from US $1.56 |
||
| replacements | |||||
|
12
|
12
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
12
|
12
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
13
|
13
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
14
|
14
4H7-23441-00-98 Holder, Handle Upper |
4H7-23441-00-98 |
from US $28.13 |
||
| replacement | |||||
|
14
|
14
4H7-23441-01-98 Holder, Handle Upper |
4H7-23441-01-98 |
from US $29.89 |
||
|
15
|
15
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
15
|
15
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
16
|
16
341-23469-00-00 Cap, Bolt |
341-23469-00-00 |
from US $2.55 |
||
|
17
|
17
4L0-2331E-00-00
Guide, Cable
|
4L0-2331E-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
4L0-23317-00-00
Holder, Cable
|
4L0-23317-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
