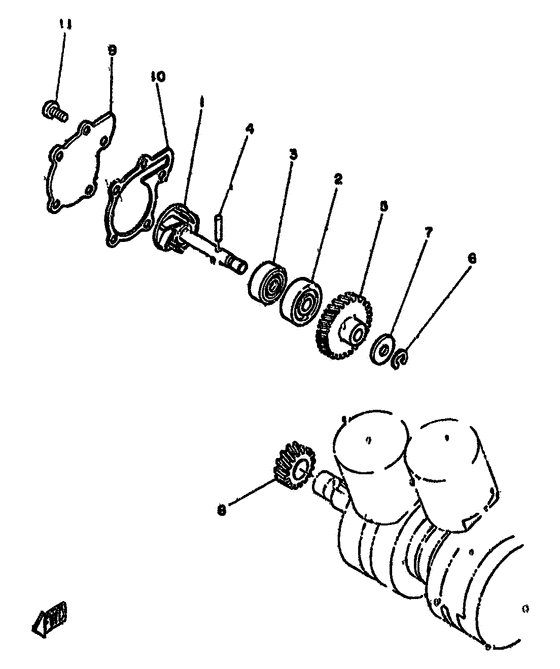

Water pump Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-12450-01-00 Impeller Shaft Assy |
4L0-12450-01-00 |
from US $44.98 |
||
|
2
|
2
933-06300-03-00 Bearing |
933-06300-03-00 |
from US $9.60 |
||
|
3
|
3
93103-10113-00 Oil Seal |
93103-10113-00 |
from US $28.90 |
||
| replacement | |||||
|
3
|
3
93103-10011-00 Oil Seal |
93103-10011-00 |
from US $28.44 |
||
|
4
|
4
93603-22028-00 Pin, Dowel |
93603-22028-00 |
from US $1.66 |
||
|
5
|
5
4L0-12459-00-00 Gear, Impeller Shaft |
4L0-12459-00-00 |
from US $9.26 |
||
|
6
|
6
93430-07012-00 Circlip |
93430-07012-00 |
US $1.84 |
||
| replacement | |||||
|
6
|
6
99080-07600-00 Clip |
99080-07600-00 |
from US $1.66 |
||
|
7
|
7
90201-08784-00 Washer, Plate |
90201-08784-00 |
from US $1.70 |
||
|
8
|
8
4L0-12436-00-00 Gear, Drive |
4L0-12436-00-00 |
from US $40.68 |
||
|
9
|
9
4L0-12422-00-00 Cover, Housing |
4L0-12422-00-00 |
from US $17.43 |
||
|
10
|
10
4L0-12428-00-00 Gasket, Housing Cover 2 |
4L0-12428-00-00 |
US $10.34 |
||
| replacement | |||||
|
10
|
10
3GG-12428-01-00 Gasket, Housing Cover 2 |
3GG-12428-01-00 |
from US $5.30 |
||
|
11
|
11
92501-06015-00 Screw |
92501-06015-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
