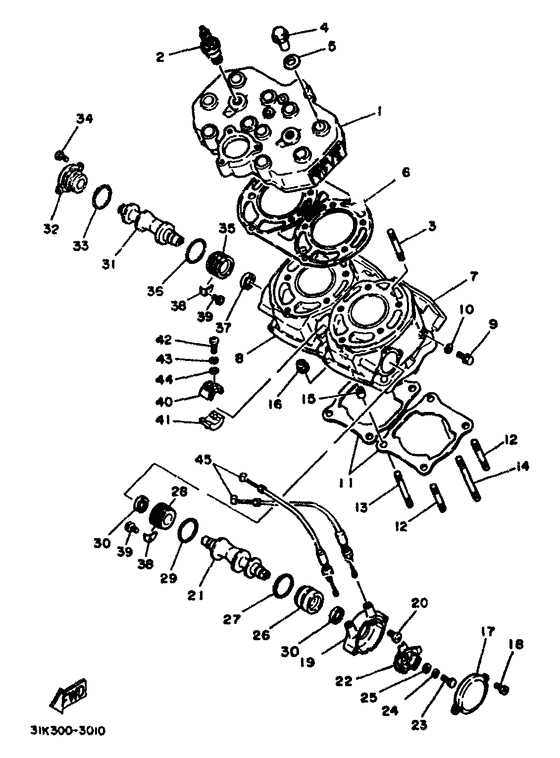

Cylinder Diagram Yamaha RD
- Year
- 1985
- Model code
- 57V
- Sales region
- Europe (General) (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31K-11111-00-00
Head, Cylinder 1
|
31K-11111-00-00 |
— | ||
|
2
|
2
94701-00204-00 Br8Es Ngk Screw Top |
94701-00204-00 |
from US $4.23 |
||
| replacement | |||||
|
2
|
2
BR8-ES000-00-00 Spark plug BR8ES |
BR8-ES000-00-00 |
US $20.32 |
||
|
3
|
3
90116-08424-00 Bolt, Stud |
90116-08424-00 |
from US $5.81 |
||
|
4
|
4
90179-08343-00 Nut, Special Shape |
90179-08343-00 |
from US $10.20 |
||
|
5
|
5
90201-122A7-00 Washer, Plate (4L0) |
90201-122A7-00 |
from US $1.84 |
||
| replacements | |||||
|
5
|
5
90201-12047-00 Washer, Plate |
90201-12047-00 |
from US $1.84 |
||
|
5
|
5
90201-12749-00 Washer, Plate |
90201-12749-00 |
from US $1.84 |
||
|
6
|
6
31K-11181-00-00 Gasket, Cylinder Head 1 |
31K-11181-00-00 |
from US $96.71 |
||
|
7
|
7
31K-11311-00-00
Cylinder 1
|
31K-11311-00-00 |
— | ||
| replacement | |||||
|
7
|
7
48H-11311-00-00
Cylinder 1
|
48H-11311-00-00 |
— | ||
|
8
|
8
31K-11321-00-00
Cylinder 2
|
31K-11321-00-00 |
— | ||
| replacement | |||||
|
8
|
8
48H-11321-00-00
Cylinder 2
|
48H-11321-00-00 |
— | ||
|
9
|
9
95826-06010-00 Bolt, Flange |
95826-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
10
|
10
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.28 |
||
|
11
|
11
29L-11351-00-00
Gasket,cylinder
|
29L-11351-00-00 |
— | ||
| replacement | |||||
|
11
|
11
29L-11351-01-00 Gasket, Cylinder |
29L-11351-01-00 |
from US $9.49 |
||
|
12
|
12
90116-08318-00 Bolt, Stud |
90116-08318-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
90116-08394-00 Bolt, Stud |
90116-08394-00 |
from US $1.70 |
||
|
13
|
13
90116-08388-00 Bolt, Stud |
90116-08388-00 |
from US $3.32 |
||
|
14
|
14
90116-08064-00 Bolt, Stud |
90116-08064-00 |
from US $3.64 |
||
|
15
|
15
91810-03014-00 Pin, Dowel |
91810-03014-00 |
from US $1.98 |
||
| replacements | |||||
|
15
|
15
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
15
|
15
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
16
|
16
90179-08299-00 Nut |
90179-08299-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
17
|
17
29L-1131R-00-00 Cap, Seal |
29L-1131R-00-00 |
from US $20.40 |
||
| replacement | |||||
|
17
|
17
2RH-1131R-10-00 Cap, Seal |
2RH-1131R-10-00 |
from US $20.40 |
||
|
18
|
18
98506-05012-00 Screw, Pan Head |
98506-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
18
|
18
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
18
|
18
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
19
|
19
29L-1131M-00-00
Cover
|
29L-1131M-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
98502-05012-00 Screw, Pan Head |
98502-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
20
|
20
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
20
|
20
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
21
|
21
31K-1131A-00-00
Valve 1
|
31K-1131A-00-00 |
— | ||
|
22
|
22
29L-1132E-00-00 Pulley 1 |
29L-1132E-00-00 |
from US $8.28 |
||
|
23
|
23
97326-06018-00 Bolt |
97326-06018-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
24
|
24
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
25
|
25
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
26
|
26
31K-1131U-00-00 Holder 3 |
31K-1131U-00-00 |
from US $49.63 |
||
|
27
|
27
932-10306-40-00
O-Ring
|
932-10306-40-00 |
— | ||
| replacement | |||||
|
27
|
27
93210-30734-00 O-Ring |
93210-30734-00 |
from US $11.62 |
||
|
28
|
28
31K-1131F-00-00 Holder 2 |
31K-1131F-00-00 |
from US $94.23 |
||
|
29
|
29
932-10306-40-00
O-Ring
|
932-10306-40-00 |
— | ||
| replacement | |||||
|
29
|
29
93210-30734-00 O-Ring |
93210-30734-00 |
from US $11.62 |
||
|
30
|
30
93108-23010-00 Oil Seal, Oso-Type |
93108-23010-00 |
from US $6.62 |
||
|
31
|
31
31K-1132A-00-00
Valve 2
|
31K-1132A-00-00 |
— | ||
|
32
|
32
31K-1131E-00-00
Holder 1
|
31K-1131E-00-00 |
— | ||
| replacement | |||||
|
32
|
32
1UA-1131E-00-00
Holder 1
|
1UA-1131E-00-00 |
— | ||
|
33
|
33
932-10306-40-00
O-Ring
|
932-10306-40-00 |
— | ||
| replacement | |||||
|
33
|
33
93210-30734-00 O-Ring |
93210-30734-00 |
from US $11.62 |
||
|
34
|
34
98506-05012-00 Screw, Pan Head |
98506-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
34
|
34
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
34
|
34
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
35
|
35
31K-1131F-00-00 Holder 2 |
31K-1131F-00-00 |
from US $94.23 |
||
|
36
|
36
932-10306-40-00
O-Ring
|
932-10306-40-00 |
— | ||
| replacement | |||||
|
36
|
36
93210-30734-00 O-Ring |
93210-30734-00 |
from US $11.62 |
||
|
37
|
37
93108-23010-00 Oil Seal, Oso-Type |
93108-23010-00 |
from US $6.62 |
||
|
38
|
38
31K-11915-00-00 Plate, Thrust 1 |
31K-11915-00-00 |
from US $5.95 |
||
|
39
|
39
91316-05010-00 Bolt |
91316-05010-00 |
from US $1.21 |
||
| replacement | |||||
|
39
|
39
91317-05010-00 Bolt |
91317-05010-00 |
from US $1.21 |
||
|
40
|
40
29L-1131H-00-00 Joint 1 |
29L-1131H-00-00 |
from US $25.96 |
||
|
41
|
41
29L-1131J-00-00 Joint 2 |
29L-1131J-00-00 |
from US $18.99 |
||
|
42
|
42
985-11040-25-00
Screw, Pan Head
|
985-11040-25-00 |
— | ||
| replacement | |||||
|
42
|
42
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
43
|
43
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
43
|
43
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
44
|
44
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
44
|
44
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
45
|
45
29L-1133E-00-00 Wire, Pulley 1 |
29L-1133E-00-00 |
from US $57.19 |
||
