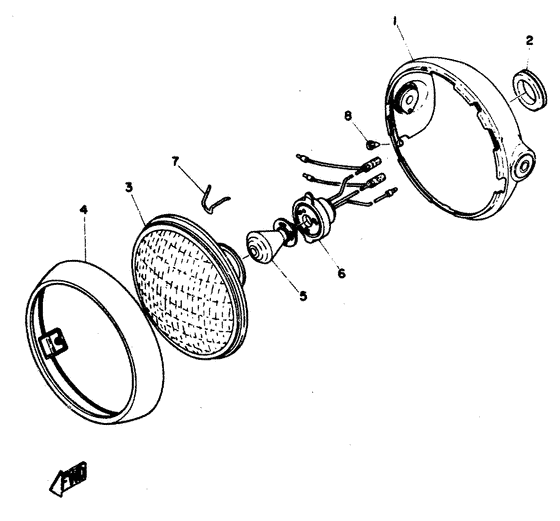

Headlight Diagram Yamaha RD
- Year
- 1974
- Model code
- RD0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
-1
|
-1
360-84310-00-00
Headlight Unit Assy
|
360-84310-00-00 |
— | ||
|
1
|
1
360-84330-61-F2
Body Assembly
|
360-84330-61-F2 |
— | ||
|
1
|
1
360-84330-61-M2
Body Assy
|
360-84330-61-M2 |
— | ||
|
2
|
2
214-84153-60-00 Grommet, Wire Harness |
214-84153-60-00 |
from US $3.12 |
||
|
3
|
3
235-84320-00-00
Lens Assy
|
235-84320-00-00 |
— | ||
| replacement | |||||
|
3
|
3
1A0-84320-00-00
Lens Assy
|
1A0-84320-00-00 |
— | ||
|
4
|
4
235-84315-00-00
Rim, Headlight
|
235-84315-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
235-84314-00-00
Bulb, H.l.12V35/25W
|
235-84314-00-00 |
— | ||
|
6
|
6
235-84312-60-00
Socket
|
235-84312-60-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
148-84324-00-00 Spring |
148-84324-00-00 |
from US $3.68 |
||
|
8
|
8
195-84325-00-00 New Genuine Part |
195-84325-00-00 |
US $1.56 |
||
| replacement | |||||
|
8
|
8
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
