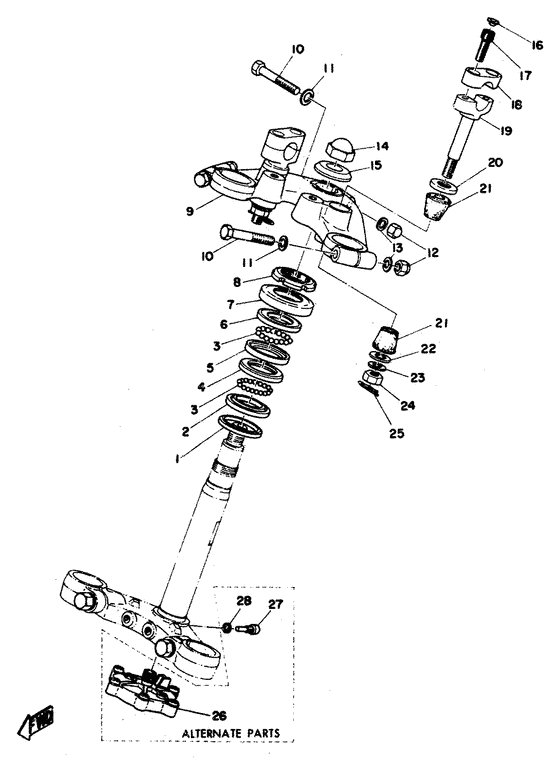

Steering Diagram Yamaha RD
- Year
- 1974
- Model code
- RD0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
-2
|
-2
361-82920-90-00
Lever Holder Assy (Right)
|
361-82920-90-00 |
— | ||
| replacement | |||||
|
-2
|
-2
361-82920-93-00
Holder, Lever 2 (36182-92131-
|
361-82920-93-00 |
— | ||
|
-1
|
-1
360-82910-00-00
Lever Holder Assy (Left)
|
360-82910-00-00 |
— | ||
| replacement | |||||
|
-1
|
-1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.25 |
||
|
1
|
1
278-26111-00-00
Handlebar
|
278-26111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
2L0-26111-00-00
Handlebar
|
2L0-26111-00-00 |
— | ||
|
2
|
2
235-26241-10-00 Grip |
235-26241-10-00 |
from US $25.42 |
||
|
2
|
2
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
2
|
2
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
3
|
3
360-83972-01-00
Switch, Handle 4
|
360-83972-01-00 |
— | ||
| replacement | |||||
|
3
|
3
360-83972-02-00
Switch, Handle 4
|
360-83972-02-00 |
— | ||
|
3
|
3
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
3
|
3
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
4
|
4
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
4
|
4
341-82911-00-00 Holder, Lever 1 |
341-82911-00-00 |
from US $29.95 |
||
|
5
|
5
183-23412-00-00 Race, Ball 2 |
183-23412-00-00 |
from US $6.09 |
||
| replacements | |||||
|
5
|
5
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.09 |
||
|
5
|
5
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
5
|
5
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
5
|
5
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $20.12 |
||
|
6
|
6
183-23411-00-00 Race, Ball 1 |
183-23411-00-00 |
from US $6.23 |
||
| replacement | |||||
|
6
|
6
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.23 |
||
|
6
|
6
91203-06020-00 Bolt |
91203-06020-00 |
US $0.93 |
||
| replacement | |||||
|
6
|
6
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
7
|
7
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
7
|
7
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
8
|
8
137-23454-00-00 Nut |
137-23454-00-00 |
US $9.92 |
||
| replacements | |||||
|
8
|
8
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
8
|
8
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
8
|
8
98801-06300-00 Nut |
98801-06300-00 |
US $1.42 |
||
| replacements | |||||
|
8
|
8
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
8
|
8
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
9
|
9
361-23435-00-98
Crown, Handle
|
361-23435-00-98 |
— | ||
|
9
|
9
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
361-82921-30-00 Holder, Lever 2 |
361-82921-30-00 |
US $54.16 |
||
| replacement | |||||
|
10
|
10
83J-82910-00-00 Lever, Holder |
83J-82910-00-00 |
from US $25.80 |
||
|
10
|
10
97203-08055-00 Bolt |
97203-08055-00 |
US $5.24 |
||
| replacement | |||||
|
10
|
10
97013-08055-00 Bolt |
97013-08055-00 |
from US $3.55 |
||
|
11
|
11
156-27226-00-00 Washer, Plate |
156-27226-00-00 |
US $1.70 |
||
| replacement | |||||
|
11
|
11
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
11
|
11
233-83922-30-00 Lever RLever 2 |
233-83922-30-00 |
from US $14.37 |
||
|
12
|
12
91203-06020-00 Bolt |
91203-06020-00 |
US $0.93 |
||
| replacement | |||||
|
12
|
12
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
12
|
12
98803-08700-00 Nut |
98803-08700-00 |
US $3.12 |
||
| replacement | |||||
|
12
|
12
95303-08800-00 Nut (Crown) (93501-08800-00) |
95303-08800-00 |
from US $3.12 |
||
|
13
|
13
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
13
|
13
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
14
|
14
92803-16700-00
Nut
|
92803-16700-00 |
— | ||
| replacement | |||||
|
14
|
14
901-76160-16-00
Nut, Crown
|
901-76160-16-00 |
— | ||
|
14
|
14
98801-06300-00 Nut |
98801-06300-00 |
US $1.42 |
||
| replacements | |||||
|
14
|
14
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
14
|
14
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
15
|
15
174-23443-00-00
Washer, Crown
|
174-23443-00-00 |
— | ||
| replacement | |||||
|
15
|
15
902-09170-57-00
Washer, Spec''l Shap
|
902-09170-57-00 |
— | ||
|
15
|
15
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
341-23469-00-00 Cap, Bolt |
341-23469-00-00 |
from US $2.55 |
||
|
16
|
16
361-93980-30-00
Front Stop Switch Ass'y
|
361-93980-30-00 |
— | ||
|
17
|
17
341-26329-00-00 Cap, Rubber |
341-26329-00-00 |
US $3.12 |
||
| replacement | |||||
|
17
|
17
90338-09012-00 Plug |
90338-09012-00 |
from US $3.12 |
||
|
17
|
17
360-23452-00-00 Bolt, Fitting 2 |
360-23452-00-00 |
US $1.07 |
||
| replacement | |||||
|
17
|
17
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.07 |
||
|
18
|
18
360-23441-00-98
Holder, Handle Upr
|
360-23441-00-98 |
— | ||
| replacement | |||||
|
18
|
18
360-23441-01-98
Holder, Handle Upr
|
360-23441-01-98 |
— | ||
|
18
|
18
360-83975-01-00
Switch, Handle 2
|
360-83975-01-00 |
— | ||
| replacement | |||||
|
18
|
18
360-83975-03-00
Switch, Handle 2
|
360-83975-03-00 |
— | ||
|
19
|
19
214-26243-00-00 Tube, Thrtl Guide |
214-26243-00-00 |
from US $15.54 |
||
|
19
|
19
256-23442-00-98
Holder, Handle Lwr
|
256-23442-00-98 |
— | ||
|
20
|
20
278-23448-00-00 Spacer |
278-23448-00-00 |
US $1.84 |
||
| replacement | |||||
|
20
|
20
90209-12102-00 Washer, Spec''l Shap |
90209-12102-00 |
from US $1.84 |
||
|
20
|
20
278-26249-00-00
Washer, Plate (1V1-26249-00)
|
278-26249-00-00 |
— | ||
| replacement | |||||
|
20
|
20
90201-261L1-00 Washer, Plate (1V1-26249-00) |
90201-261L1-00 |
from US $2.69 |
||
|
21
|
21
235-26242-10-00
Grip Rh
|
235-26242-10-00 |
— | ||
| replacement | |||||
|
21
|
21
306-26242-10-00 Grip RhGrip,right |
306-26242-10-00 |
from US $30.46 |
||
|
21
|
21
278-23434-00-00
Holder, Damper
|
278-23434-00-00 |
— | ||
| replacement | |||||
|
21
|
21
903-85120-20-00
Bush, Spec''l Rubber
|
903-85120-20-00 |
— | ||
|
22
|
22
135-22244-00-00 Washer 2 |
135-22244-00-00 |
US $1.98 |
||
| replacement | |||||
|
22
|
22
90201-106F2-00 Washer, Plate (17K) |
90201-106F2-00 |
from US $1.66 |
||
|
22
|
22
360-26311-00-00
Cable, Throttle 1
|
360-26311-00-00 |
— | ||
| replacement | |||||
|
22
|
22
360-26311-01-00 Cable, Throttle 1 |
360-26311-01-00 |
US $43.31 |
||
|
23
|
23
360-26261-00-00
Connector, Cable
|
360-26261-00-00 |
— | ||
| replacement | |||||
|
23
|
23
360-26261-01-00
Connector, Cable
|
360-26261-01-00 |
— | ||
|
23
|
23
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
23
|
23
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
24
|
24
360-26312-00-00
Cable, Throttle 2
|
360-26312-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
92802-10300-00 Nut |
92802-10300-00 |
US $7.37 |
||
| replacement | |||||
|
24
|
24
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
25
|
25
136-25375-00-00 Clip |
136-25375-00-00 |
US $1.84 |
||
| replacement | |||||
|
25
|
25
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
25
|
25
360-26321-00-00
Cable, Pumppump For Old Style P
|
360-26321-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
214-23490-00-00
Handlebar Shimmy Damper Assy
|
214-23490-00-00 |
— | ||
| replacement | |||||
|
26
|
26
5G2-23490-00-00
Hdlbr Smy Dmpr Assembly
|
5G2-23490-00-00 |
— | ||
|
26
|
26
360-26335-00-00 Cable, clutch |
360-26335-00-00 |
from US $79.42 |
||
| replacement | |||||
|
26
|
26
413-26335-20-00
Wire, Clutch
|
413-26335-20-00 |
— | ||
|
27
|
27
214-23492-00-00
Bolt
|
214-23492-00-00 |
— | ||
|
27
|
27
361-26341-00-00
Cable, Brake
|
361-26341-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
168-26337-00-00 Bolt, Adjusting |
168-26337-00-00 |
US $3.40 |
||
| replacements | |||||
|
28
|
28
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
28
|
28
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
28
|
28
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
29
|
29
168-26344-00-00 Nut, Ajusting |
168-26344-00-00 |
US $6.38 |
||
| replacements | |||||
|
29
|
29
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
29
|
29
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
30
|
30
156-27229-00-00 Pin, Clevis |
156-27229-00-00 |
US $1.84 |
||
| replacement | |||||
|
30
|
30
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.66 |
||
|
31
|
31
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
32
|
32
156-27226-00-00 Washer, Plate |
156-27226-00-00 |
US $1.70 |
||
| replacement | |||||
|
32
|
32
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
33
|
33
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
33
|
33
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
33
|
33
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
34
|
34
168-83936-01-00 Band, Switch Cord |
168-83936-01-00 |
from US $1.56 |
||
| replacement | |||||
|
34
|
34
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
35
|
35
341-26290-01-00
Back Mirror Rh (341-26290-01)
|
341-26290-01-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
341-26290-40-00
Rear View Mirror Assy (Right)
|
341-26290-40-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
341-26290-10-00
Mirror Assembly Lh
|
341-26290-10-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
341-26290-30-00
Rear View Mirror Assy (Right)
|
341-26290-30-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
