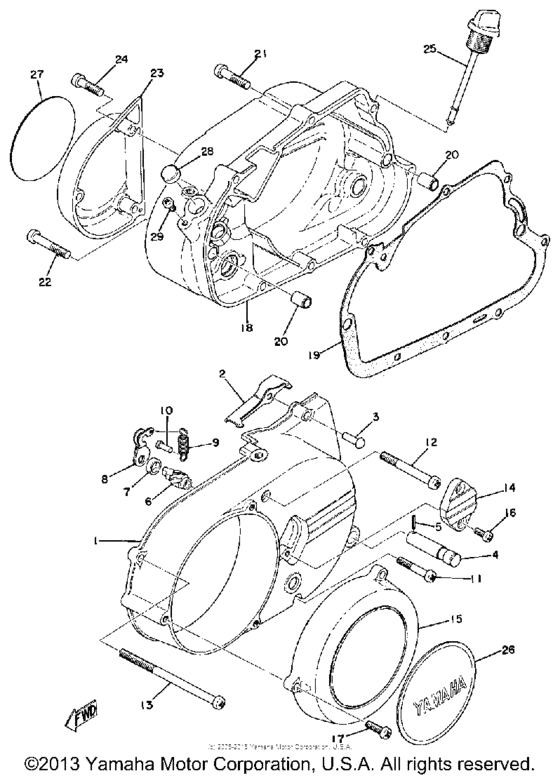

Crankcase cover Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 125
- Model
- RD125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
396-15410-00-00
Crcs Cover Assembly L
|
396-15410-00-00 |
— | ||
|
2
|
2
183-15418-01-00
Cover, Chain Case
|
183-15418-01-00 |
— | ||
|
3
|
3
902-66060-05-00
Rivet
|
902-66060-05-00 |
— | ||
|
4
|
4
307-18188-00-00
Axle, Pawl Holder
|
307-18188-00-00 |
— | ||
|
5
|
5
91690-30014-00 Pin, Spring |
91690-30014-00 |
from US $1.50 |
||
|
6
|
6
241-16341-01-00 Screw, Push |
241-16341-01-00 |
from US $16.01 |
||
|
7
|
7
93104-10085-00 Oil Seal, So-Type |
93104-10085-00 |
from US $2.36 |
||
|
8
|
8
241-16342-00-00 Lever, Push |
241-16342-00-00 |
from US $2.36 |
||
|
9
|
9
90506-10019-00 Spring, Tension (132-16345-00)132-16345-00 |
90506-10019-00 |
from US $2.41 |
||
|
10
|
10
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
11
|
11
98506-06035-00 Screw Pan Head J |
98506-06035-00 |
from US $1.21 |
||
| replacement | |||||
|
11
|
11
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
12
|
12
98506-06060-00 Screw Pan Head |
98506-06060-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.42 |
||
|
13
|
13
925-06061-20-00
Screw,pan
|
925-06061-20-00 |
— | ||
| replacements | |||||
|
13
|
13
98507-06120-00
SCREW,PAN HEAD
|
98507-06120-00 |
— | ||
|
13
|
13
985-01061-20-00
Screw, Pan Head
|
985-01061-20-00 |
— | ||
|
14
|
14
396-15417-00-00
Cover, Cap
|
396-15417-00-00 |
— | ||
|
15
|
15
389-15415-00-00
Cover, Generator
|
389-15415-00-00 |
— | ||
|
16
|
16
98516-05012-00 Screw, Pan Head |
98516-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
16
|
16
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
16
|
16
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
17
|
17
98516-06020-00 Screw Pan Head |
98516-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
17
|
17
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
18
|
18
396-15421-00-00
Cover, Crankcase R
|
396-15421-00-00 |
— | ||
|
19
|
19
252-15451-00-00 Gasket,crcs Cover |
252-15451-00-00 |
from US $26.93 |
||
| replacement | |||||
|
19
|
19
252-15451-01-00 element |
252-15451-01-00 |
from US $32.24 |
||
|
20
|
20
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
20
|
20
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
20
|
20
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
21
|
21
98516-06030-00 Screw, Pan Head |
98516-06030-00 |
US $2.13 |
||
| replacement | |||||
|
21
|
21
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.70 |
||
|
22
|
22
98506-06040-00 Screw, Pan Head |
98506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
23
|
23
389-15416-00-00
Cover, Oil Pump
|
389-15416-00-00 |
— | ||
|
24
|
24
98506-06035-00 Screw Pan Head J |
98506-06035-00 |
from US $1.21 |
||
| replacement | |||||
|
24
|
24
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
25
|
25
307-15363-00-00
Plug, Oil
|
307-15363-00-00 |
— | ||
|
26
|
26
389-15426-00-00
Cover, Oil Pump R
|
389-15426-00-00 |
— | ||
|
27
|
27
389-15426-00-00
Cover, Oil Pump R
|
389-15426-00-00 |
— | ||
|
28
|
28
903-38160-15-00 Plug |
903-38160-15-00 |
from US $4.25 |
||
| replacement | |||||
|
28
|
28
90338-16029-00 Plug |
90338-16029-00 |
from US $4.25 |
||
|
29
|
29
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
