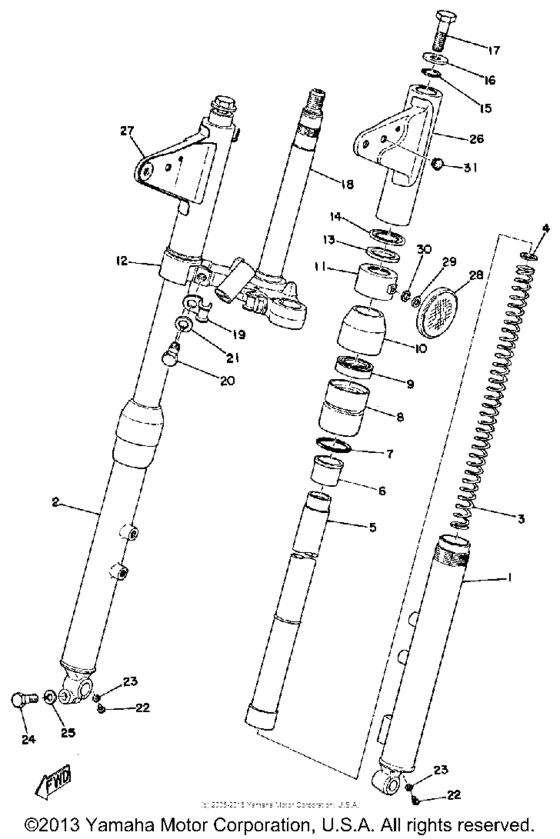

Front fork Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 125
- Model
- RD125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
396-23101-00-00
Front Fork Assembly
|
396-23101-00-00 |
— | ||
|
1
|
1
396-23126-00-35
Tube, Outer 1
SILVER |
396-23126-00-35 |
— | ||
|
2
|
2
307-23136-00-35
Tube, Outer 2
SILVER |
307-23136-00-35 |
— | ||
|
3
|
3
307-23141-00-00
Spring, Front Fork
|
307-23141-00-00 |
— | ||
|
4
|
4
252-23149-00-00
Washer, Spring Upr
|
252-23149-00-00 |
— | ||
|
5
|
5
252-23124-00-00
Tube, Inner 1
|
252-23124-00-00 |
— | ||
|
6
|
6
164-23125-00-00
Metal, Slide 1
|
164-23125-00-00 |
— | ||
|
7
|
7
164-23147-00-00
O-Ring
|
164-23147-00-00 |
— | ||
|
8
|
8
307-23150-01-00
Outer Nut
|
307-23150-01-00 |
— | ||
|
9
|
9
164-23145-01-00
Oil Seal
|
164-23145-01-00 |
— | ||
|
10
|
10
252-23144-00-00
Seal, Dust
|
252-23144-00-00 |
— | ||
|
11
|
11
307-23122-00-93
Cover, Outer 1
|
307-23122-00-93 |
— | ||
|
12
|
12
307-23132-00-93
Cover, Outer 2
|
307-23132-00-93 |
— | ||
|
13
|
13
164-23163-00-00 Gasket |
164-23163-00-00 |
from US $7.65 |
||
|
14
|
14
252-23116-00-00
Guide, Cover Lower
|
252-23116-00-00 |
— | ||
|
15
|
15
307-23114-00-00 Gasket |
307-23114-00-00 |
from US $5.81 |
||
|
16
|
16
183-23112-00-00
Washer, Cap
|
183-23112-00-00 |
— | ||
|
17
|
17
307-23111-00-00 Bolt, Cap |
307-23111-00-00 |
US $9.85 |
||
|
18
|
18
307-23340-00-33
Under Bracket
|
307-23340-00-33 |
— | ||
|
19
|
19
183-23318-00-00
Holder, Cable 1
|
183-23318-00-00 |
— | ||
|
20
|
20
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
20
|
20
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
21
|
21
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
22
|
22
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
23
|
23
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
24
|
24
90119-08010-00
Bolt, With Washer
|
90119-08010-00 |
— | ||
| replacement | |||||
|
24
|
24
5X6-23181-L0-00
Bolt, Hexagon Socket Head
|
5X6-23181-L0-00 |
— | ||
|
25
|
25
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
26
|
26
507-23121-00-A9
Cover, Upper 1
BRANDY RED METALLIC |
507-23121-00-A9 |
— | ||
|
27
|
27
507-23131-00-A9
Cover, Upper 2
BRANDY RED METALLIC |
507-23131-00-A9 |
— | ||
|
28
|
28
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
29
|
29
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
30
|
30
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
31
|
31
903-38090-60-00
Plug, Spec''l Shape
|
903-38090-60-00 |
— | ||
