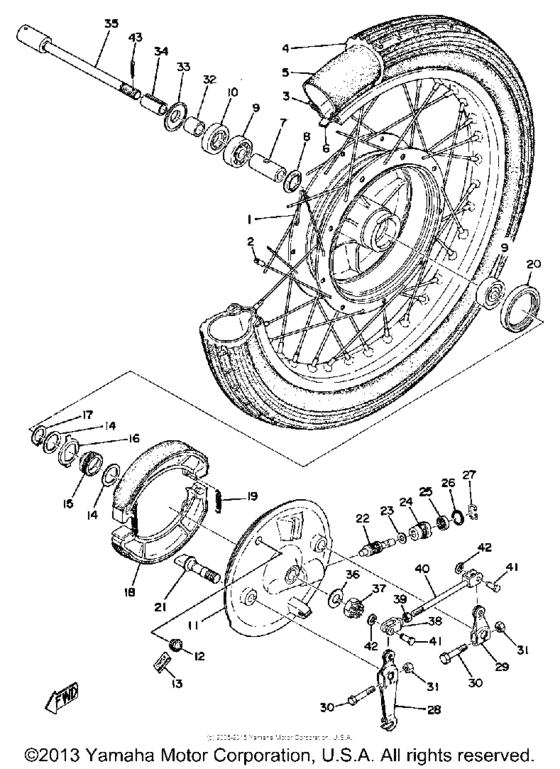

Front wheel Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 125
- Model
- RD125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
307-25111-00-00
Hub, Front
|
307-25111-00-00 |
— | ||
|
2
|
2
307-25104-00-00
Spoke Set, Front
|
307-25104-00-00 |
— | ||
|
3
|
3
944-14180-95-00
Rim 1.40X18
1.40X18 |
944-14180-95-00 |
— | ||
|
4
|
4
941-27183-09-00
275X18 Yoko Y506
Y506 |
941-27183-09-00 |
— | ||
|
5
|
5
94227-18010-00
Tube
|
94227-18010-00 |
— | ||
| replacement | |||||
|
5
|
5
94227-18195-00 Tube |
94227-18195-00 |
from US $24 |
||
|
6
|
6
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.04 |
||
| replacement | |||||
|
6
|
6
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.04 |
||
|
7
|
7
90560-12261-00 Spacer |
90560-12261-00 |
from US $4.64 |
||
| replacement | |||||
|
7
|
7
90560-12138-00 Spacer |
90560-12138-00 |
from US $4.64 |
||
|
8
|
8
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.39 |
||
|
9
|
9
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.72 |
||
| replacement | |||||
|
9
|
9
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.72 |
||
|
10
|
10
93102-18008-00 Oil Seal |
93102-18008-00 |
from US $4.12 |
||
|
11
|
11
507-25120-10-00
Brake Shoe Plt Assembly
|
507-25120-10-00 |
— | ||
|
12
|
12
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.65 |
||
|
13
|
13
437-25134-00-00
Label, Indicator
|
437-25134-00-00 |
— | ||
|
14
|
14
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.65 |
||
|
15
|
15
307-25135-00-00
Gear, Drive
|
307-25135-00-00 |
— | ||
|
16
|
16
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.84 |
||
|
17
|
17
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.50 |
||
|
18
|
18
21L-W2535-00-00
Brake Shoe Set
|
21L-W2535-00-00 |
— | ||
|
19
|
19
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $7.48 |
||
|
20
|
20
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $7.54 |
||
|
21
|
21
183-25351-00-00
Camshaft
|
183-25351-00-00 |
— | ||
|
22
|
22
307-25138-00-00
Gear, Meter
|
307-25138-00-00 |
— | ||
|
23
|
23
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.65 |
||
|
24
|
24
109-25136-00-00 Bush |
109-25136-00-00 |
from US $5.24 |
||
|
25
|
25
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.80 |
||
|
26
|
26
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
26
|
26
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.13 |
||
|
27
|
27
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $2.54 |
||
|
28
|
28
307-25155-00-00
Lever, Camshaft 1
|
307-25155-00-00 |
— | ||
|
29
|
29
307-25156-00-00
Lever, Camshaft 2
|
307-25156-00-00 |
— | ||
|
30
|
30
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
30
|
30
97017-06030-00 Bolt |
97017-06030-00 |
from US $0.90 |
||
|
30
|
30
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.43 |
||
|
31
|
31
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $0.90 |
||
|
32
|
32
90387-12095-00 Collar |
90387-12095-00 |
from US $3.19 |
||
|
33
|
33
2K5-25118-00-00 Cover, Hub Dust |
2K5-25118-00-00 |
from US $5.45 |
||
|
34
|
34
903-87120-99-00 Collar |
903-87120-99-00 |
from US $4.56 |
||
|
35
|
35
382-25181-01-00 Axle, Wheel |
382-25181-01-00 |
US $30.67 |
||
|
36
|
36
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
36
|
36
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.24 |
||
|
37
|
37
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.29 |
||
| replacement | |||||
|
37
|
37
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $1.94 |
||
|
38
|
38
152-25163-00-00 End, Rod 1 |
152-25163-00-00 |
US $40.01 |
||
|
39
|
39
953-80067-00-00
Nut
|
953-80067-00-00 |
— | ||
| replacement | |||||
|
39
|
39
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.43 |
||
|
40
|
40
307-25161-00-00
Rod, Connecting
|
307-25161-00-00 |
— | ||
|
41
|
41
90249-06095-00
Pin, Spec'l Shape
|
90249-06095-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.50 |
||
|
43
|
43
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
43
|
43
91490-30030-00 Pin. Cotter |
91490-30030-00 |
from US $0.98 |
||
