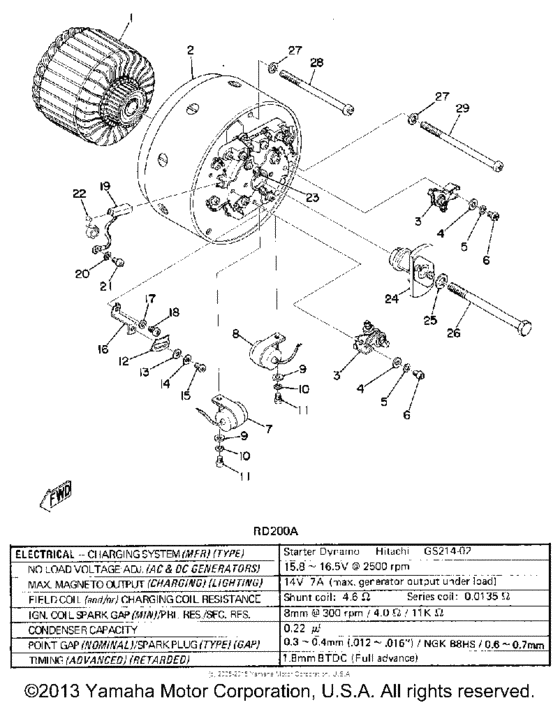

Starter generator Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 200
- Model
- RD200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
397-81100-11-00
Starter Gen Assembly
|
397-81100-11-00 |
— | ||
|
1
|
1
397-81155-11-00
Armature
|
397-81155-11-00 |
— | ||
|
2
|
2
397-81110-10-00
Stator Assembly
|
397-81110-10-00 |
— | ||
|
3
|
3
183-81421-19-00 Breaker Contact Assy |
183-81421-19-00 |
from US $87.18 |
||
|
4
|
4
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
5
|
5
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
6
|
6
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
7
|
7
132-81226-90-00
Cndsr 2
|
132-81226-90-00 |
— | ||
| replacement | |||||
|
7
|
7
278-81625-91-00
VOLTAGE REG ASSY
|
278-81625-91-00 |
— | ||
|
8
|
8
132-81225-90-00
Cndsr 2
|
132-81225-90-00 |
— | ||
| replacement | |||||
|
8
|
8
278-81625-91-00
VOLTAGE REG ASSY
|
278-81625-91-00 |
— | ||
|
9
|
9
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
10
|
10
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
12
|
12
133-81132-10-00
Plate, Timing
|
133-81132-10-00 |
— | ||
|
13
|
13
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
14
|
14
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
976-01041-06-00
Screw, Pan Head With Washer
|
976-01041-06-00 |
— | ||
| replacement | |||||
|
15
|
15
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
16
|
16
299-81133-10-00
Fixture, Tmng Plate
|
299-81133-10-00 |
— | ||
|
17
|
17
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
18
|
18
976-01041-06-00
Screw, Pan Head With Washer
|
976-01041-06-00 |
— | ||
| replacement | |||||
|
18
|
18
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
19
|
19
101-81111-10-00
Brush
|
101-81111-10-00 |
— | ||
|
20
|
20
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
21
|
21
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
22
|
22
141-81113-10-00 Spring, Brush |
141-81113-10-00 |
US $22.81 |
||
|
23
|
23
207-81331-10-00 Lubricator |
207-81331-10-00 |
US $6.52 |
||
|
24
|
24
337-81153-10-00
Governor Assembly
|
337-81153-10-00 |
— | ||
|
25
|
25
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
26
|
26
90143-07021-00
Screw, Hexagon
|
90143-07021-00 |
— | ||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
28
|
28
98511-06085-00 Screw Pan Head |
98511-06085-00 |
from US $3.97 |
||
| replacement | |||||
|
28
|
28
98507-06085-00 Screw, Pan Head |
98507-06085-00 |
from US $3.97 |
||
|
29
|
29
985-01060-95-00
Screw, Pan Head
|
985-01060-95-00 |
— | ||
| replacement | |||||
|
29
|
29
985-07060-95-00
SCREW, PAN
|
985-07060-95-00 |
— | ||
