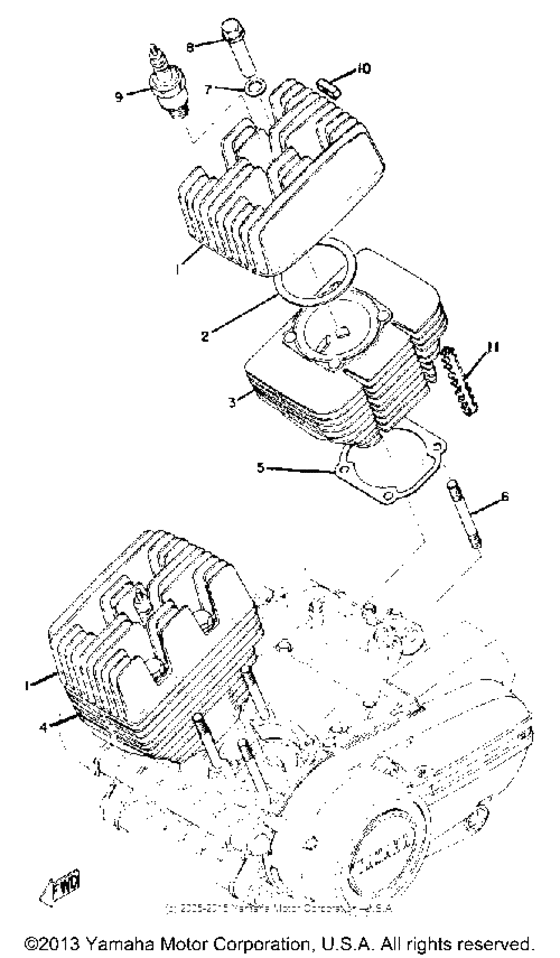

Cylinder head Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
361-11111-01-00
Head, Cylinder 1
|
361-11111-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
280-11181-01-00 Gasket, Cylinder Head 1 |
280-11181-01-00 |
from US $26.64 |
||
|
3
|
3
361-11311-00-00
Cylinder 1
|
361-11311-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
361-11321-00-00
Cylinder 2
|
361-11321-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
278-11351-01-00 Gasket, Cylinder |
278-11351-01-00 |
from US $8.36 |
||
| replacement | |||||
|
5
|
5
278-11351-11-00 Gasket, Cylinder |
278-11351-11-00 |
from US $6.46 |
||
|
6
|
6
90116-08065-00 Bolt Stud 276113610000 |
90116-08065-00 |
from US $7.51 |
||
|
7
|
7
90201-12362-00 Washer, Plate |
90201-12362-00 |
from US $1.70 |
||
|
8
|
8
90179-08026-00
Nut, Spec''l Shape
|
90179-08026-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
NGK-B8HS0-00-00 B8Hs Ngk 10Pk Screw10PK SCREW |
NGK-B8HS0-00-00 |
US $6.95 |
||
| replacements | |||||
|
9
|
9
B8H-S0000-00-00 element10PK SCREW |
B8H-S0000-00-00 |
US $4.99 |
||
|
9
|
9
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)10PK SCREW |
BR8-HS000-00-00 |
US $26.36 |
||
|
10
|
10
416-11161-00-00
Absorber 1
|
416-11161-00-00 |
— | ||
|
11
|
11
521-11162-01-00
Absorber 2
|
521-11162-01-00 |
— | ||
