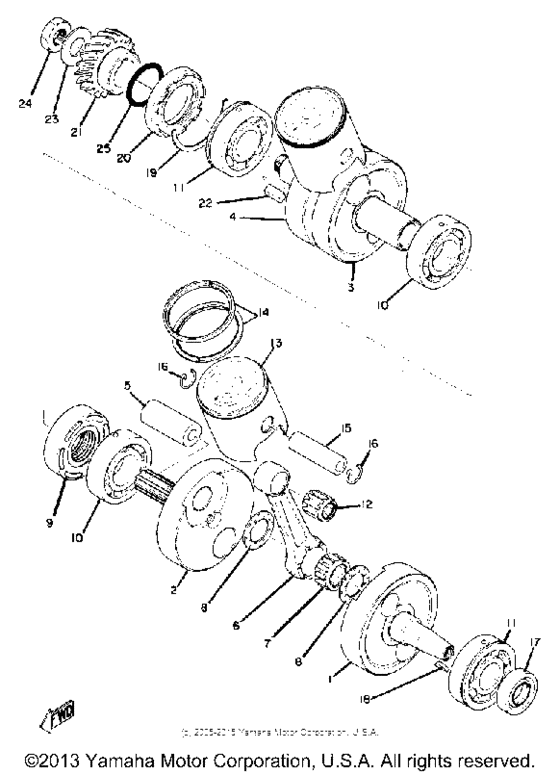

Crank piston Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-11400-00-00
Crankshaft Assembly
|
360-11400-00-00 |
— | ||
|
1
|
1
278-11412-00-00
Crank 1
|
278-11412-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
278-11422-00-00
Crank 2
|
278-11422-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
278-11432-00-00
Crank 3
|
278-11432-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
278-11442-00-00
Crank 4
|
278-11442-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
8G8-11681-00-00 Pin, Crank 1 |
8G8-11681-00-00 |
from US $62.41 |
||
|
6
|
6
34X-11651-00-00 Rod, Connecting |
34X-11651-00-00 |
from US $43.64 |
||
|
7
|
7
933-10422-77-00
Bearing, Cylinder
|
933-10422-77-00 |
— | ||
| replacement | |||||
|
7
|
7
933-10422-C8-00 Bearing, Cylinder |
933-10422-C8-00 |
from US $24.80 |
||
|
8
|
8
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $3.64 |
||
|
9
|
9
278-11515-00-00
Seal, Labyrinth 1
|
278-11515-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
933-06206-21-00 Bearing |
933-06206-21-00 |
from US $48.94 |
||
|
11
|
11
93306-30549-00 Bearing(1Ua) |
93306-30549-00 |
from US $45.30 |
||
|
12
|
12
933-10216-L2-00 Bearing, Cylindrical |
933-10216-L2-00 |
from US $27.49 |
||
|
13
|
13
361-11631-03-96
Piston Std
|
361-11631-03-96 |
— | ||
|
13
|
13
361-11635-03-00
Piston 1 O/s 0.25 (361-11635-02
O/S 0.25 361-11635-02 ALT. PART |
361-11635-03-00 |
— | ||
|
14
|
14
361-11610-02-00
Piston Ringset Std
|
361-11610-02-00 |
— | ||
|
14
|
14
361-11610-12-00
Piston Ringset 1St
1ST ALT. PART |
361-11610-12-00 |
— | ||
|
14
|
14
361-11610-22-00
Piston Ringset 2Nd
2ND ALT. PART |
361-11610-22-00 |
— | ||
|
15
|
15
280-11633-00-00 Pin, Piston |
280-11633-00-00 |
from US $20.83 |
||
|
16
|
16
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
17
|
17
93103-20076-00 Oil Seal, Sw-TypeOil seal (sw-20-40-10) |
93103-20076-00 |
from US $9.92 |
||
|
18
|
18
90280-04005-00
Key, Woodruff
|
90280-04005-00 |
— | ||
|
19
|
19
278-17424-01-00 Circlip 1 |
278-17424-01-00 |
from US $3.64 |
||
|
20
|
20
93103-40077-00 Oil Seal |
93103-40077-00 |
from US $9.26 |
||
|
21
|
21
280-16111-01-00
Gear, Pri Drive
5705 |
280-16111-01-00 |
— | ||
|
22
|
22
90282-07023-00 Key, Straight (584) |
90282-07023-00 |
from US $5.24 |
||
|
23
|
23
214-16119-00-00 Spring, Belleville |
214-16119-00-00 |
from US $7.93 |
||
|
24
|
24
90170-16182-00 Nut |
90170-16182-00 |
from US $3.12 |
||
| replacement | |||||
|
24
|
24
90170-16425-00 Nut |
90170-16425-00 |
from US $3.12 |
||
|
25
|
25
360-11526-00-00
Seal, Crankshaft
57056M4-038 |
360-11526-00-00 |
— | ||
|
25
|
25
361-11636-03-00
Piston 2 O/s 0.50
O/S 0.50 PC. CLIP 2 PCS. |
361-11636-03-00 |
— | ||
|
25
|
25
908-91100-41-00
Seal Crank Rd
RD 75696M4-038 |
908-91100-41-00 |
— | ||
|
25
|
25
361-11630-00-00
Piston Kit Std
|
361-11630-00-00 |
— | ||
|
25
|
25
361-11630-10-00
Piston Kit 1St
1ST |
361-11630-10-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
1ST |
999-99999-99-00 |
— | ||
