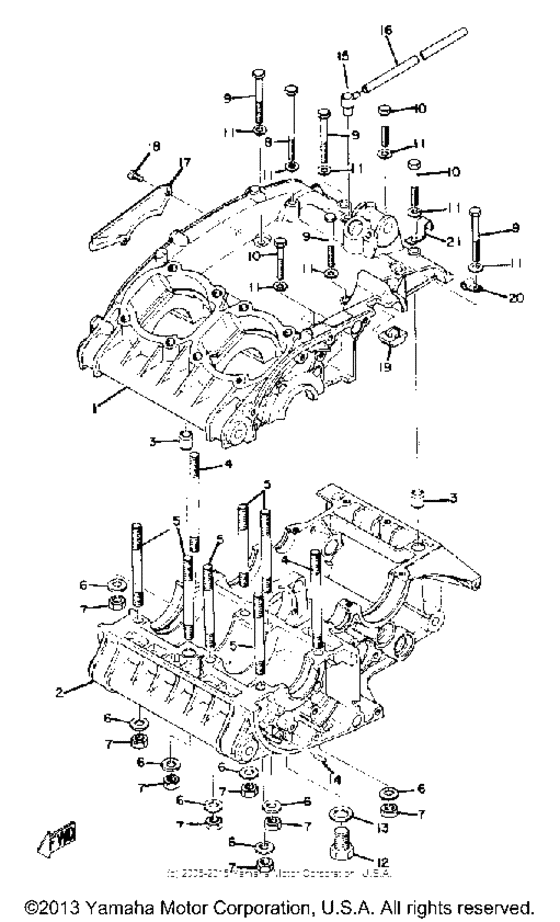

Crankcase Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278-15100-02-00
Crankcase Assembly
|
278-15100-02-00 |
— | ||
|
1
|
1
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
2
|
2
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
3
|
3
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
4
|
4
90116-08232-00 Bolt, Stud (1A1) |
90116-08232-00 |
from US $9.63 |
||
|
5
|
5
90116-08064-00 Bolt, Stud |
90116-08064-00 |
from US $3.64 |
||
|
6
|
6
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
8
|
8
97311-06090-00 Bolt (4L3) |
97311-06090-00 |
from US $1.53 |
||
| replacement | |||||
|
8
|
8
97017-06090-00 Bolt(3Gg) |
97017-06090-00 |
from US $2.55 |
||
|
9
|
9
97313-06055-00 Bolt,w Wash |
97313-06055-00 |
from US $4.11 |
||
| replacements | |||||
|
9
|
9
97595-06555-00 Bolt, With Washer |
97595-06555-00 |
from US $4.11 |
||
|
9
|
9
97E95-06555-00 Bolt, Hexagon W/w Deep Recess |
97E95-06555-00 |
from US $1.21 |
||
|
10
|
10
97313-06045-00 Bolt, Hexagon |
97313-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
10
|
10
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
11
|
11
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
12
|
12
90109-14385-00 Bolt |
90109-14385-00 |
from US $9.63 |
||
|
13
|
13
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
13
|
13
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
14
|
14
93603-14026-00 Pin, Dowel |
93603-14026-00 |
from US $1.98 |
||
|
15
|
15
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.34 |
||
|
16
|
16
904-46072-41-00 Hose (3Ak)3AK |
904-46072-41-00 |
from US $3.40 |
||
|
17
|
17
278-15492-01-00 Cover |
278-15492-01-00 |
from US $6.09 |
||
|
18
|
18
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
18
|
18
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
19
|
19
278-15441-00-00
Holder, Clch Cable
|
278-15441-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90462-05012-00 Clamp |
90462-05012-00 |
from US $2.41 |
||
|
21
|
21
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
