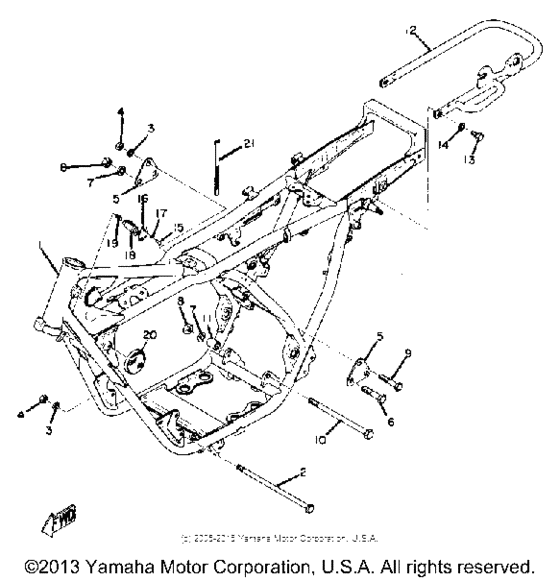

Frame Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-21110-01-33
Frame
|
360-21110-01-33 |
— | ||
|
2
|
2
901-05080-33-00
Bolt, Washer Based
|
901-05080-33-00 |
— | ||
|
3
|
3
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
4
|
4
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
4
|
4
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
4
|
4
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
4
|
4
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
4
|
4
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
5
|
5
248-21315-00-00
Stay, Engine 2
|
248-21315-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
97313-10055-00 Bolt, Hexagon (97322-10055) |
97313-10055-00 |
from US $4.21 |
||
| replacement | |||||
|
6
|
6
97013-10055-00 Bolt |
97013-10055-00 |
from US $6.40 |
||
|
6
|
6
958-21100-60-00 Bolt, Flange |
958-21100-60-00 |
from US $2.83 |
||
| replacement | |||||
|
6
|
6
95817-10060-00 Bolt, Flange |
95817-10060-00 |
from US $2.83 |
||
|
7
|
7
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
8
|
8
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
8
|
8
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
8
|
8
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
8
|
8
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
9
|
9
97313-08055-00 Bolt (661)661 |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
9
|
9
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
9
|
9
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
10
|
10
958-21102-00-00
Bolt, Flange
|
958-21102-00-00 |
— | ||
|
11
|
11
903-87121-01-00
Collar
|
903-87121-01-00 |
— | ||
|
12
|
12
360-21645-00-00
Stay, Rear
|
360-21645-00-00 |
— | ||
|
13
|
13
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
13
|
13
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
13
|
13
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
15
|
15
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
16
|
16
134-23484-10-00 Cap, Handle Lock |
134-23484-10-00 |
from US $10.34 |
||
|
17
|
17
90206-04003-00
Washer, Wave
214-23488-00 |
90206-04003-00 |
— | ||
|
18
|
18
341-23408-01-00 Steering Lock Assembly (214-234214-234 |
341-23408-01-00 |
from US $86.63 |
||
|
19
|
19
905-02080-05-00
Spring, Conical (214-23485-00)
214-23485-00 |
905-02080-05-00 |
— | ||
|
20
|
20
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
21
|
21
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
