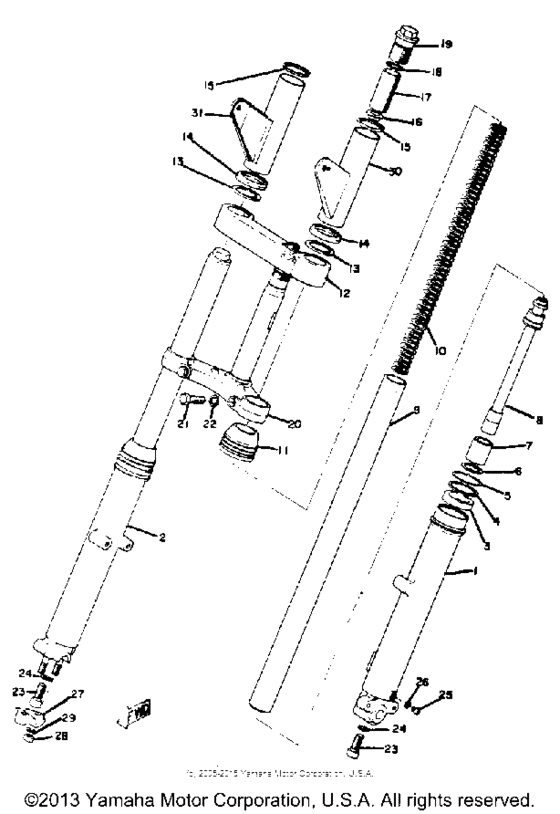

Front fork Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
361-23101-50-00
Front Fork Assembly
|
361-23101-50-00 |
— | ||
|
1
|
1
361-23126-50-00
Tube, Outer 1
|
361-23126-50-00 |
— | ||
|
2
|
2
361-23136-50-00
Tube, Outer 2
|
361-23136-50-00 |
— | ||
|
3
|
3
278-23145-51-00
Oil Seal
|
278-23145-51-00 |
— | ||
| replacement | |||||
|
3
|
3
584-23145-50-00 Oil Seal |
584-23145-50-00 |
from US $24.65 |
||
|
4
|
4
214-23146-00-00
Washer, Oil Seal
|
214-23146-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
214-23156-00-00
Clip, Oil Seal
|
214-23156-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
934-50300-33-00
Circlip, Inner
|
934-50300-33-00 |
— | ||
|
7
|
7
278-23171-50-00
Piston, Front Fork
|
278-23171-50-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
278-23170-50-00
Cylinder, Frtfrk
|
278-23170-50-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
351-23124-50-00
Tube, Inner 1
|
351-23124-50-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
278-23141-50-00
Spring, Front Fork
|
278-23141-50-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
278-23144-50-00 Seal, Dust |
278-23144-50-00 |
from US $39.65 |
||
|
12
|
12
361-23122-51-00
Cover, Outer 1
|
361-23122-51-00 |
— | ||
|
13
|
13
291-23163-61-00
Gasket (Lamp Stay)
|
291-23163-61-00 |
— | ||
|
14
|
14
447-23116-52-00
Guide, Cover Lower
|
447-23116-52-00 |
— | ||
|
15
|
15
2R8-23115-00-00
Guide, Cover Upper
|
2R8-23115-00-00 |
— | ||
|
16
|
16
278-23142-50-00
Seat, Spring Upper
|
278-23142-50-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
291-23118-60-00
Spacer
|
291-23118-60-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
214-23114-00-00
Gasket
|
214-23114-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
291-23111-60-00
Bolt, Cap
|
291-23111-60-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
361-23340-50-33
Under Bracket
|
361-23340-50-33 |
— | ||
|
21
|
21
278-23346-50-00
Bolt 1
|
278-23346-50-00 |
— | ||
|
22
|
22
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
23
|
23
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
23
|
23
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
24
|
24
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
25
|
25
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
26
|
26
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
27
|
27
278-23167-50-00
Holder, Axle
|
278-23167-50-00 |
— | ||
|
28
|
28
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
29
|
29
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
30
|
30
361-23121-50-F2
Cover, Upper 1
BUTTERFLY BLUE |
361-23121-50-F2 |
— | ||
|
30
|
30
361-23121-50-N3
Cover, Upper 1
AMBER BROWN |
361-23121-50-N3 |
— | ||
|
31
|
31
361-23131-50-F2
Cover, Upper 2
BUTTERFLY BLUE |
361-23131-50-F2 |
— | ||
|
31
|
31
361-23131-50-N3
Cover, Upper 2
AMBER BROWN |
361-23131-50-N3 |
— | ||
