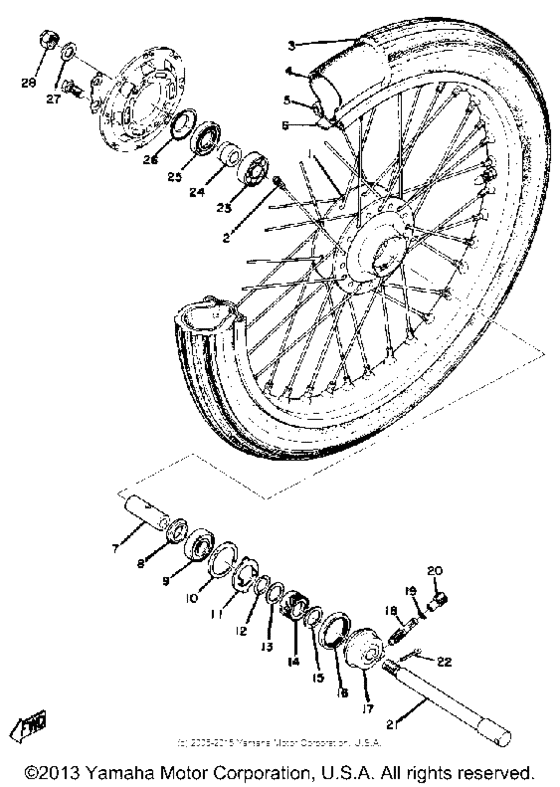

Front wheel Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
351-25111-00-00
Hub, Front
|
351-25111-00-00 |
— | ||
|
2
|
2
351-25104-00-00
Spoke Set, Front
|
351-25104-00-00 |
— | ||
|
2
|
2
351-25197-90-00
Spoke Set, Outer 1
|
351-25197-90-00 |
— | ||
|
2
|
2
351-25196-90-00
Spoke Set, Inner 1
|
351-25196-90-00 |
— | ||
|
3
|
3
941-30183-63-00
Yoko 300S18 Y986
300S18 Y986 |
941-30183-63-00 |
— | ||
|
4
|
4
94230-18084-00 Tube (3.00-18) |
94230-18084-00 |
US $27.38 |
||
| replacement | |||||
|
4
|
4
94227-18195-00 Tube |
94227-18195-00 |
US $37.53 |
||
|
5
|
5
94416-18068-00
Rim 1.60X18
1.60X18 |
94416-18068-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
1.60X18 |
999-99999-99-00 |
— | ||
|
6
|
6
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
6
|
6
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.39 |
||
|
7
|
7
90560-17125-00
Spacer
|
90560-17125-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
146-25315-00-00 Flange, Spacer |
146-25315-00-00 |
from US $3.40 |
||
|
9
|
9
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
9
|
9
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
10
|
10
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $2.98 |
||
|
11
|
11
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $3.54 |
||
|
12
|
12
341-25137-00-00
Ring, Stop
|
341-25137-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
90201-25286-00 Washer, Plate (341-25147-00)341-25147-00 |
90201-25286-00 |
from US $3.40 |
||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
341-25147-00 |
999-99999-99-00 |
— | ||
|
14
|
14
351-25135-00-00
Gear, Drive
|
351-25135-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90201-25490-00 Washer, Plate |
90201-25490-00 |
from US $3.29 |
||
|
16
|
16
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $11.05 |
||
|
17
|
17
341-25190-01-00 Gear Unit Assy |
341-25190-01-00 |
from US $82.51 |
||
| replacement | |||||
|
17
|
17
4TR-25190-20-00 Gear Unit Assy |
4TR-25190-20-00 |
from US $92.84 |
||
|
18
|
18
351-25138-00-00 Gear, MeterGear,meter (10t) |
351-25138-00-00 |
US $54.18 |
||
|
19
|
19
102-18416-00-00
Shim, Rod
|
102-18416-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
306-25136-00-00
Bush
|
306-25136-00-00 |
— | ||
|
21
|
21
351-25181-10-00
Axle, Wheel
|
351-25181-10-00 |
— | ||
|
22
|
22
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
22
|
22
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
23
|
23
93306-30302-00 Brg,r-B 6303 47Mm 115G Nk |
93306-30302-00 |
from US $19.55 |
||
|
24
|
24
90387-17433-00
Collar
|
90387-17433-00 |
— | ||
|
25
|
25
93102-28022-00 Oil Seal |
93102-28022-00 |
from US $4.64 |
||
|
26
|
26
341-25118-00-00
Cover, Hub Dust
|
341-25118-00-00 |
— | ||
|
27
|
27
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
|
28
|
28
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
28
|
28
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
