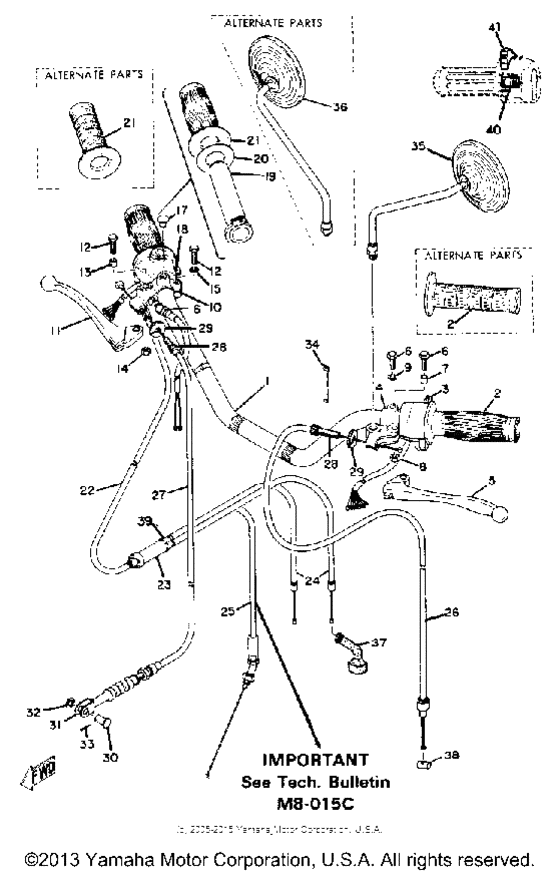

Handle wire Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2L0-26111-00-00
Handlebar
|
2L0-26111-00-00 |
— | ||
|
1
|
1
360-82910-02-00
Lever Holder Assembly 1 (360-82
360-82 |
360-82910-02-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
360-82 |
999-99999-99-00 |
— | ||
|
1
|
1
235-26242-10-00
Grip Rh
RH |
235-26242-10-00 |
— | ||
| replacement | |||||
|
1
|
1
306-26242-10-00 Grip RhGrip,right RH |
306-26242-10-00 |
from US $30.46 |
||
|
2
|
2
341-26241-00-00
Grip Lh
LH |
341-26241-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
2
|
2
361-82920-92-00
Lever Holder Assembly 2
|
361-82920-92-00 |
— | ||
|
3
|
3
360-83973-02-00
Switch, Handle 3
|
360-83973-02-00 |
— | ||
|
3
|
3
360-83973-01-00
Switch, Handle 3
|
360-83973-01-00 |
— | ||
|
4
|
4
341-82911-00-00 Holder, Lever 1 |
341-82911-00-00 |
from US $29.95 |
||
|
5
|
5
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $20.12 |
||
|
6
|
6
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
7
|
7
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
8
|
8
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
8
|
8
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
361-82920-93-00
Holder, Lever 2 (36182-92131-
36182-92131- |
361-82920-93-00 |
— | ||
|
11
|
11
233-83922-30-00 Lever RLever 2 |
233-83922-30-00 |
from US $14.37 |
||
|
12
|
12
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
13
|
13
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
14
|
14
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
395-83980-00-00 Front Stop Switch AsAS |
395-83980-00-00 |
from US $34.31 |
||
| replacement | |||||
|
16
|
16
395-83980-09-00 Front Stop Switch AssyAS |
395-83980-09-00 |
from US $28.79 |
||
|
17
|
17
90338-09012-00 Plug |
90338-09012-00 |
from US $3.12 |
||
|
18
|
18
360-83975-03-00
Switch, Handle 2
|
360-83975-03-00 |
— | ||
|
19
|
19
214-26243-00-00 Tube, Thrtl Guide |
214-26243-00-00 |
from US $15.54 |
||
|
20
|
20
90201-261L0-00 Washer, Plate (1V1-26249-00)1V1-26249-00 |
90201-261L0-00 |
from US $2.69 |
||
| replacement | |||||
|
20
|
20
90201-261L1-00 Washer, Plate (1V1-26249-00)1V1-26249-00 |
90201-261L1-00 |
from US $2.69 |
||
|
21
|
21
306-26242-10-00 Grip RhGrip,right RH |
306-26242-10-00 |
from US $30.46 |
||
|
22
|
22
360-26311-01-00 Cable, Throttle 14815 |
360-26311-01-00 |
US $43.31 |
||
|
23
|
23
360-26261-01-00
Connector, Cable
|
360-26261-01-00 |
— | ||
|
24
|
24
360-26312-00-00
Cable, Throttle 2
|
360-26312-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
360-26312-01-00
Cable, Throttle 2
|
360-26312-01-00 |
— | ||
|
25
|
25
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
26
|
26
278-26335-00-00
Cable, clutch
|
278-26335-00-00 |
— | ||
|
26
|
26
360-26335-00-00 Cable, clutch |
360-26335-00-00 |
from US $79.42 |
||
| replacement | |||||
|
26
|
26
413-26335-20-00
Wire, Clutch
|
413-26335-20-00 |
— | ||
|
27
|
27
361-26341-00-00
Cable, Brake
|
361-26341-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
28
|
28
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
29
|
29
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
29
|
29
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
30
|
30
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.66 |
||
|
31
|
31
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
32
|
32
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
33
|
33
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
33
|
33
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
34
|
34
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
35
|
35
341-26290-10-00
Mirror Assembly Lh
LH |
341-26290-10-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
36
|
36
341-26290-01-00
Back Mirror Rh (341-26290-01)
RH 341-26290-01 ALT. PART |
341-26290-01-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
RH 341-26290-01 ALT. PART |
999-99999-99-00 |
— | ||
|
37
|
37
360-26329-00-00
Cap, Rubber
|
360-26329-00-00 |
— | ||
|
37
|
37
360-26329-02-00
Cap, Rubber
5205 |
360-26329-02-00 |
— | ||
|
38
|
38
164-26363-00-00 End, Cable |
164-26363-00-00 |
from US $3.54 |
||
|
39
|
39
360-26262-00-00
Cap, Cble Connector
4815 |
360-26262-00-00 |
— | ||
|
40
|
40
360-W0087-20-00
Knb Set, Hdlbr Swch
M7-017 |
360-W0087-20-00 |
— | ||
|
41
|
41
360-W0087-10-00
Knb Set, Hdlbr Swch
M7-017 |
360-W0087-10-00 |
— | ||
