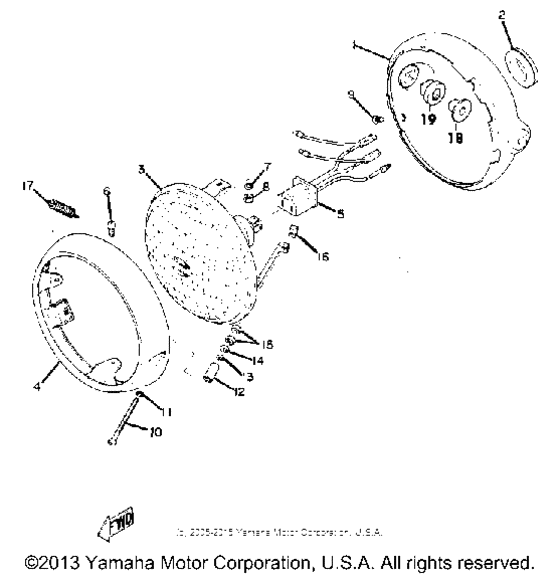

Head lamp Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-84330-61-F2
Body Assembly
|
360-84330-61-F2 |
— | ||
|
1
|
1
360-84330-61-N3
Body Assembly
|
360-84330-61-N3 |
— | ||
|
1
|
1
360-84330-61-36
Body Assembly
|
360-84330-61-36 |
— | ||
|
2
|
2
214-84153-60-00 Grommet, Wire Harness |
214-84153-60-00 |
from US $3.12 |
||
|
3
|
3
246-84320-60-00
Lens Assembly
|
246-84320-60-00 |
— | ||
|
4
|
4
235-84315-60-00
Rim, Headlight
|
235-84315-60-00 |
— | ||
|
5
|
5
246-84312-60-00
Socket
|
246-84312-60-00 |
— | ||
|
6
|
6
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
7
|
7
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
9
|
9
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
10
|
10
901-57040-01-00 Screw, Rim Adjusting |
901-57040-01-00 |
from US $6.23 |
||
|
11
|
11
233-84127-60-00 Washer, Special |
233-84127-60-00 |
from US $4.84 |
||
|
12
|
12
233-84133-60-00
Collar, Screw
|
233-84133-60-00 |
— | ||
|
13
|
13
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
14
|
14
168-84328-60-00
Spacer
|
168-84328-60-00 |
— | ||
|
15
|
15
95301-04600-00 Nut |
95301-04600-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
16
|
16
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.12 |
||
|
17
|
17
132-84335-60-00
Spring
|
132-84335-60-00 |
— | ||
|
18
|
18
214-84145-60-00 Collar, Body FtngM6-028 |
214-84145-60-00 |
US $22.66 |
||
|
19
|
19
256-84345-60-00
Damper, Headlight
M6-028 |
256-84345-60-00 |
— | ||
