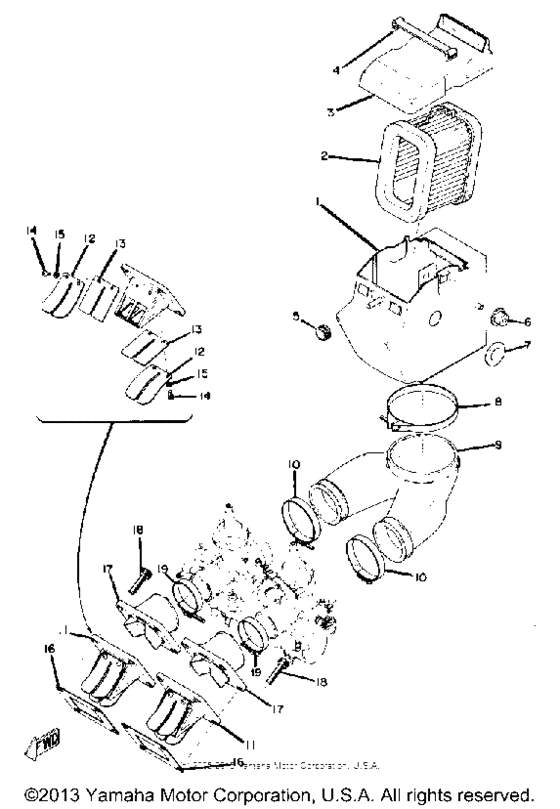

Intake Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-14411-00-00
Case, Air Cleaner 1
|
360-14411-00-00 |
— | ||
|
2
|
2
278-14451-00-00
Element, Air Clnr
|
278-14451-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
360-14451-90-00
Element, Air Clnr
|
360-14451-90-00 |
— | ||
|
3
|
3
278-14412-01-00
Cap, Cleaner Case 1
|
278-14412-01-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
278-14459-00-00
Holder, Guide
|
278-14459-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
90480-10091-00 Grommet (214-21746-00)214-21746-00 |
90480-10091-00 |
from US $2.83 |
||
|
6
|
6
278-14426-00-00
Damper 2
|
278-14426-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
904-80190-32-00
Grommet
|
904-80190-32-00 |
— | ||
|
8
|
8
904-60770-16-00
Clamp Hose 360144560000
|
904-60770-16-00 |
— | ||
|
9
|
9
360-14453-00-00 Joint, Air Clnr 1 |
360-14453-00-00 |
from US $22.82 |
||
|
10
|
10
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $2.98 |
||
|
11
|
11
558-13610-00-00 Reed Valve Asy |
558-13610-00-00 |
from US $265.15 |
||
| replacement | |||||
|
11
|
11
345-13610-20-00 Reed Valve Assy |
345-13610-20-00 |
from US $266.45 |
||
|
12
|
12
345-13616-70-00 Stopper, Reed Valve |
345-13616-70-00 |
from US $21.99 |
||
|
13
|
13
345-13613-70-00 Reed, Valve |
345-13613-70-00 |
from US $46.70 |
||
|
14
|
14
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
15
|
15
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
16
|
16
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $2.32 |
||
|
17
|
17
345-13565-71-00
Joint, Carburetor
|
345-13565-71-00 |
— | ||
|
18
|
18
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
19
|
19
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
19
|
19
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
