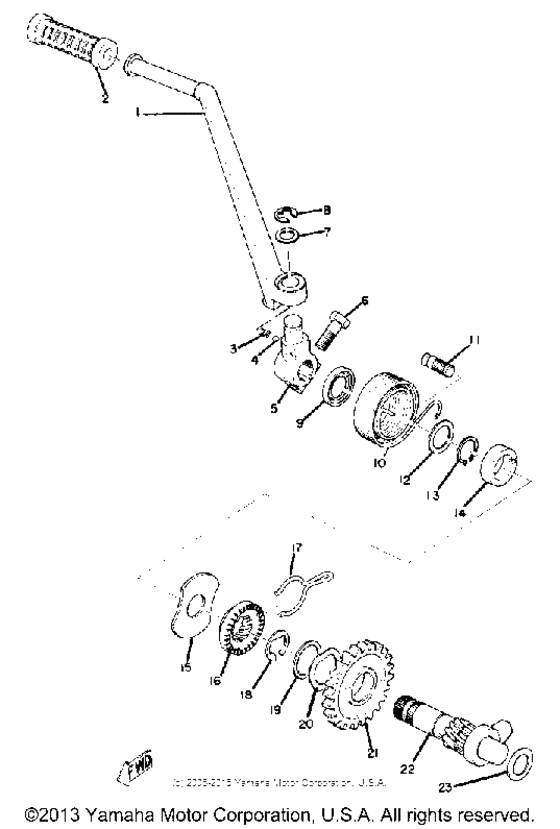

Kick start Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2F3-15611-00-93 Crank,kick |
2F3-15611-00-93 |
US $131.18 |
||
| replacement | |||||
|
1
|
1
278-15611-00-00 CLUTCH DAMPER ASY |
278-15611-00-00 |
US $131.18 |
||
|
2
|
2
156-15618-01-00 Cover, Kick Lever |
156-15618-01-00 |
from US $2 |
||
|
3
|
3
90501-12081-00 Spring, Compression |
90501-12081-00 |
from US $1.56 |
||
|
4
|
4
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.66 |
||
|
5
|
5
583-15621-00-00 Boss, Kick Crank |
583-15621-00-00 |
from US $60.38 |
||
|
6
|
6
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
6
|
6
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
6
|
6
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
6
|
6
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
7
|
7
90201-15234-00 Washer, Plate (1.5T) |
90201-15234-00 |
from US $1.70 |
||
|
8
|
8
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
9
|
9
93104-20007-00 Oil Seal, So-Type |
93104-20007-00 |
from US $2.66 |
||
|
10
|
10
90508-30051-00 Spring Torsion 278156650000 |
90508-30051-00 |
from US $10.34 |
||
|
11
|
11
248-15668-00-00 Stopper |
248-15668-00-00 |
from US $2.32 |
||
|
12
|
12
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
13
|
13
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
14
|
14
278-15666-00-00
Spacer (278-15666-01)
278-15666-01 |
278-15666-00-00 |
— | ||
|
15
|
15
278-15676-00-00 Cover, Spring |
278-15676-00-00 |
from US $3.12 |
||
|
16
|
16
278-15671-01-00
Wheel, Ratchet
|
278-15671-01-00 |
— | ||
|
17
|
17
90468-26045-00
Clip (256-15687-00)
256-15687-00 |
90468-26045-00 |
— | ||
|
18
|
18
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
19
|
19
90201-25490-00 Washer, Plate |
90201-25490-00 |
from US $3.29 |
||
|
20
|
20
902-06250-29-00
Washer, Wave
|
902-06250-29-00 |
— | ||
|
21
|
21
278-15641-01-00
Gear, Kick
|
278-15641-01-00 |
— | ||
|
22
|
22
278-15660-01-00
Kick Axle Assembly
|
278-15660-01-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
136-17417-00-10
Shim 1 (1.0T)
|
136-17417-00-10 |
— | ||
