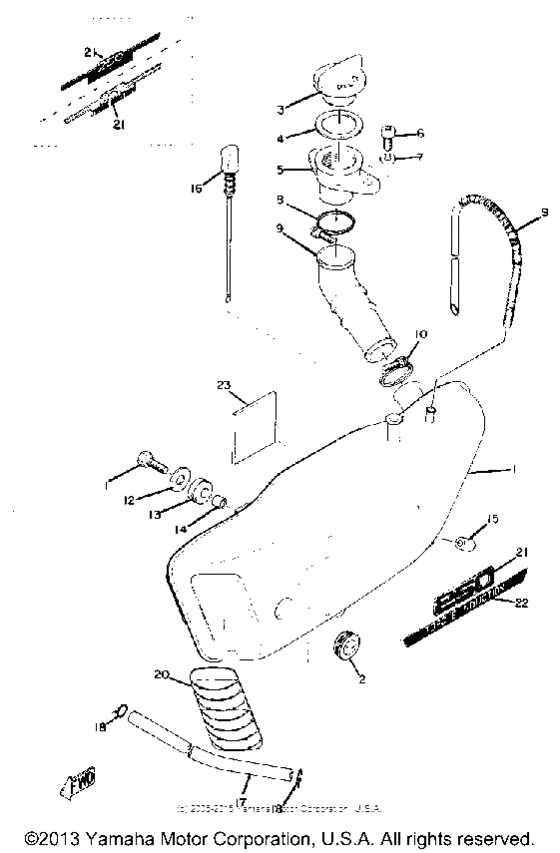

Oil tank Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-21705-00-29
Oil Tank Assembly
|
360-21705-00-29 |
— | ||
|
1
|
1
360-21705-00-N3
Oil Tank Assembly
|
360-21705-00-N3 |
— | ||
|
1
|
1
360-21705-00-36
Oil Tank Assembly
|
360-21705-00-36 |
— | ||
|
2
|
2
360-21761-00-00
Gauge, Level
|
360-21761-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
214-21771-00-00 Body, Cap |
214-21771-00-00 |
from US $30.58 |
||
| replacement | |||||
|
3
|
3
1A0-21771-00-00 Body, Cap |
1A0-21771-00-00 |
from US $36.75 |
||
|
4
|
4
90430-29114-00 Gasket |
90430-29114-00 |
from US $2.83 |
||
|
5
|
5
360-21752-00-00
Tube, Filler 1
|
360-21752-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
90460-32182-00 Clamp, Hose(5U8) |
90460-32182-00 |
from US $3.67 |
||
| replacement | |||||
|
8
|
8
90460-32255-00 Clamp, Hose |
90460-32255-00 |
US $4.91 |
||
|
9
|
9
360-21753-00-00
Boss, Connector
|
360-21753-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
904-60260-07-00
Clamp, Hose
|
904-60260-07-00 |
— | ||
|
11
|
11
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
11
|
11
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
12
|
12
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
13
|
13
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
14
|
14
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
14
|
14
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
15
|
15
437-21779-00-00 Damper, Oil Tank |
437-21779-00-00 |
from US $8.78 |
||
|
16
|
16
1A0-21792-00-00
Gauge, Oil
|
1A0-21792-00-00 |
— | ||
|
17
|
17
904-45091-22-00 Hose |
904-45091-22-00 |
from US $15.73 |
||
|
18
|
18
904-62080-03-00 Clamp |
904-62080-03-00 |
US $2.13 |
||
|
19
|
19
278-21745-00-00
Pipe, Oil Tnk Brthr
|
278-21745-00-00 |
— | ||
|
20
|
20
360-21781-00-00
Mold 1
|
360-21781-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
361-21786-00-00
Emblem 6
|
361-21786-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
361-21783-01-00
Emblem 3
|
361-21783-01-00 |
— | ||
|
21
|
21
361-21783-20-00
Emblem 3
|
361-21783-20-00 |
— | ||
|
22
|
22
360-21787-00-00
Emblem 7
|
360-21787-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
214-21268-00-00
Seal
|
214-21268-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
