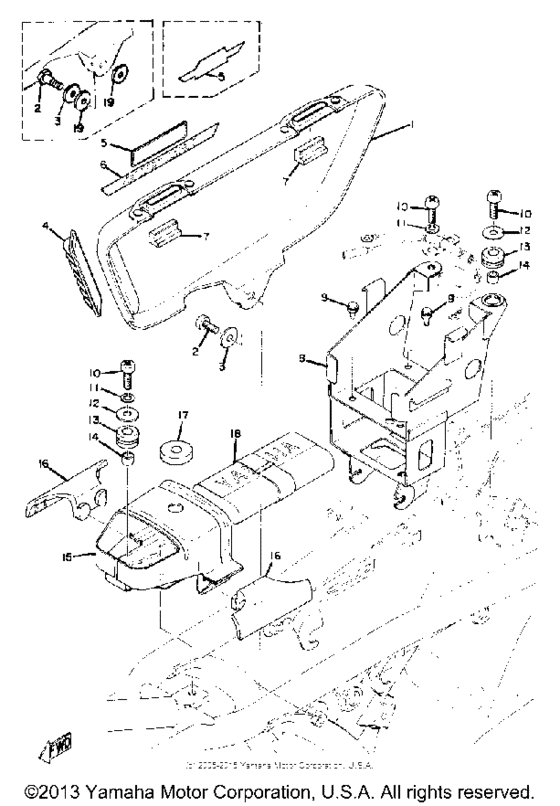

Side cover tool box battery box Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-21721-00-29
Cover, Side 2
BUTTERFLY BLUE |
360-21721-00-29 |
— | ||
|
1
|
1
360-21721-00-N3
Cover, Side 2
AMBER BROWN |
360-21721-00-N3 |
— | ||
|
1
|
1
360-21721-00-36
Cover, Side 2
CLEAN WHITE |
360-21721-00-36 |
— | ||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
2
|
2
90109-06005-00 Bolt 337847520000 |
90109-06005-00 |
from US $1.98 |
||
|
3
|
3
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
3
|
3
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
3
|
3
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
4
|
4
360-21782-00-00
Mold 2
|
360-21782-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
361-21786-00-00
Emblem 6
|
361-21786-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
361-21783-01-00
Emblem 3
|
361-21783-01-00 |
— | ||
|
5
|
5
361-21783-20-00
Emblem 3
|
361-21783-20-00 |
— | ||
|
6
|
6
360-21787-00-00
Emblem 7
|
360-21787-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
360-21717-01-00 Damper |
360-21717-01-00 |
from US $6.23 |
||
|
8
|
8
278-21240-00-33
Box, Batt
|
278-21240-00-33 |
— | ||
|
9
|
9
141-21717-00-00 Damper |
141-21717-00-00 |
from US $3.26 |
||
|
10
|
10
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
13
|
13
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
14
|
14
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
14
|
14
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
15
|
15
278-21170-00-33
Box, Tool
|
278-21170-00-33 |
— | ||
|
16
|
16
278-21746-00-00
Damper
|
278-21746-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
296-23445-00-00 Damper |
296-23445-00-00 |
US $3.68 |
||
|
18
|
18
1KT-W2810-00-00 Tool Kit |
1KT-W2810-00-00 |
US $192.55 |
||
| replacement | |||||
|
18
|
18
1KT-W2810-01-00
Tool Kit
|
1KT-W2810-01-00 |
— | ||
|
19
|
19
90201-083A0-00 Washer, Plate |
90201-083A0-00 |
from US $1.98 |
||
