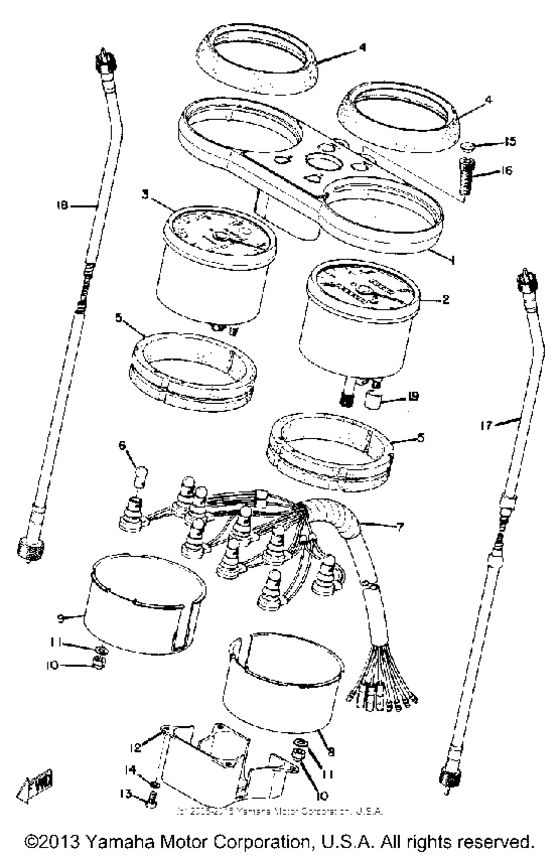

Speedometer tachometer Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-83519-41-98
Bracket, Meter
|
360-83519-41-98 |
— | ||
|
2
|
2
999-99009-01-00
Speedometer Assembly
|
999-99009-01-00 |
— | ||
|
2
|
2
360-83570-43-00
Speedometer Assembly
|
360-83570-43-00 |
— | ||
|
3
|
3
360-83540-07-00
Tachometer Assembly
|
360-83540-07-00 |
— | ||
|
3
|
3
360-83540-03-00
Tachometer Assembly
|
360-83540-03-00 |
— | ||
|
4
|
4
360-83513-00-00
Damper
|
360-83513-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
360-83523-00-00
Damper
|
360-83523-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
6
|
6
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
7
|
7
360-83509-40-00
Socket Cord Assembly
|
360-83509-40-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
360-83507-00-00
Cover, Speedometer
|
360-83507-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
360-83508-01-00
Cover, Tachometer
|
360-83508-01-00 |
— | ||
|
10
|
10
95303-05800-00 Nut (Crown) |
95303-05800-00 |
US $1.56 |
||
| replacement | |||||
|
10
|
10
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
|
11
|
11
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
12
|
12
360-83547-00-00
Cover, Socket
|
360-83547-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
14
|
14
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
341-23469-00-00 Cap, Bolt |
341-23469-00-00 |
from US $2.55 |
||
|
16
|
16
91316-08025-00 Bolt |
91316-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.07 |
||
|
17
|
17
55K-83550-01-00 Spdmtr Cable |
55K-83550-01-00 |
from US $26.30 |
||
| replacement | |||||
|
17
|
17
55K-83550-02-00 Speedometer Cable Assy |
55K-83550-02-00 |
from US $35.56 |
||
|
17
|
17
2A6-83550-01-00
Speedometer Cable
|
2A6-83550-01-00 |
— | ||
| replacement | |||||
|
17
|
17
2A6-83550-10-00
Speedometer Cable Assy
|
2A6-83550-10-00 |
— | ||
|
18
|
18
360-83560-01-00 Tachometer Cable (360-83560-00)360-83560-00 |
360-83560-01-00 |
from US $76.52 |
||
|
19
|
19
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
