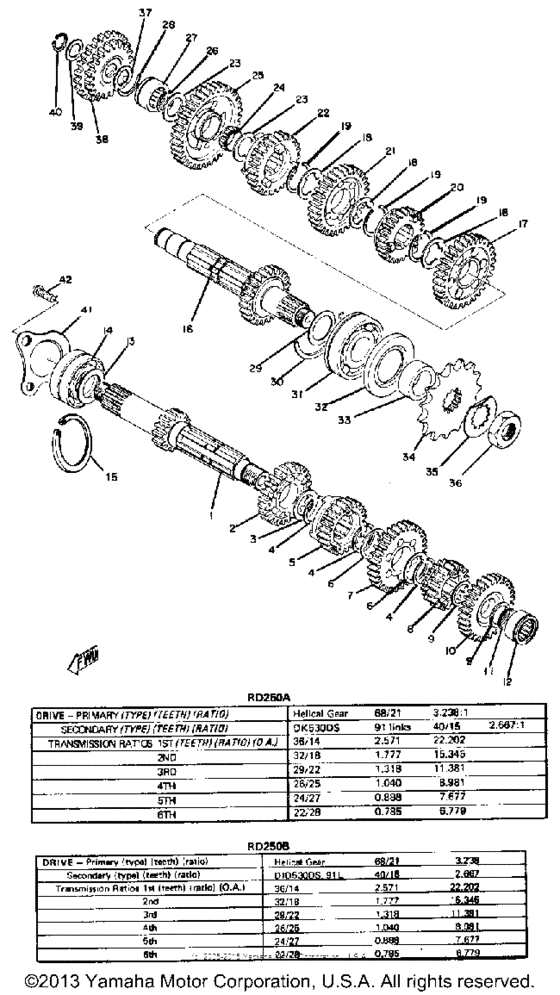

Transmission Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-17411-00-00
Axle, Main
|
360-17411-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
360-17141-00-00
Gear, 4Th Pinion
4TH PINION |
360-17141-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
4TH PINION |
999-99999-99-00 |
— | ||
|
3
|
3
90201-25490-00 Washer, Plate |
90201-25490-00 |
from US $3.29 |
||
|
4
|
4
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
5
|
5
360-17131-00-00
Gear, 3Rd Pinion
3RD PINION |
360-17131-00-00 |
— | ||
|
6
|
6
90209-21105-00 Washer 328172160000 |
90209-21105-00 |
from US $2.98 |
||
|
7
|
7
360-17161-00-00
Gear, 6Th Pinion
6TH PINION |
360-17161-00-00 |
— | ||
|
8
|
8
1A1-17121-00-00
Gear, 2Nd Pinion (18T)
2ND PINION |
1A1-17121-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
2ND PINION |
999-99999-99-00 |
— | ||
|
9
|
9
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
10
|
10
360-17151-00-00
Gear, 5Th Pinion
5TH PINION |
360-17151-00-00 |
— | ||
|
11
|
11
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
12
|
12
93311-22027-00 Bearing |
93311-22027-00 |
from US $24.94 |
||
|
13
|
13
168-17428-01-05 Shim 2 (25-34-0.5)25-34-0.5 |
168-17428-01-05 |
from US $7.24 |
||
|
13
|
13
168-17428-01-03 Shim 2 (25-34-0.3)25-34-0.5 |
168-17428-01-03 |
from US $8.39 |
||
| replacement | |||||
|
13
|
13
168-17428-01-05 Shim 2 (25-34-0.5)25-34-0.5 |
168-17428-01-05 |
from US $7.24 |
||
|
14
|
14
93305-20502-00 Bearing (93305-20508-00)93305-20508-00 |
93305-20502-00 |
from US $40.34 |
||
|
15
|
15
93440-52009-00 Circlip |
93440-52009-00 |
from US $3.98 |
||
|
16
|
16
360-17420-00-00
Drive Axle Assembly
|
360-17420-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
360-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
360-17221-00-00 |
— | ||
|
18
|
18
90209-21106-00
Washer, Spec''l Shap
|
90209-21106-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
20
|
20
360-17261-00-00
Gear, 6Th Wheel
6TH WHEEL |
360-17261-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
6TH WHEEL |
999-99999-99-00 |
— | ||
|
21
|
21
360-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
360-17231-00-00 |
— | ||
|
22
|
22
360-17241-00-00
Gear, 4Th Wheel
4TH WHEEL |
360-17241-00-00 |
— | ||
|
23
|
23
90201-20276-00 Washer, Plate (T=1.0) |
90201-20276-00 |
from US $1.56 |
||
|
24
|
24
93310-22057-00 BearingS |
93310-22057-00 |
from US $15.02 |
||
|
25
|
25
360-17211-00-00
Gear, 1St Wheel
1ST WHEEL |
360-17211-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
1ST WHEEL |
999-99999-99-00 |
— | ||
|
26
|
26
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
27
|
27
93311-42045-00 Bearing |
93311-42045-00 |
from US $18.84 |
||
|
28
|
28
278-17425-00-00 Circlip 2 |
278-17425-00-00 |
from US $2.32 |
||
|
29
|
29
168-17428-01-05 Shim 2 (25-34-0.5)25-34-0.5 |
168-17428-01-05 |
from US $7.24 |
||
|
29
|
29
168-27428-01-03
New Genuine Part
IN PRICE BOOK |
168-27428-01-03 |
— | ||
|
30
|
30
278-17424-01-00 Circlip 1 |
278-17424-01-00 |
from US $3.64 |
||
|
31
|
31
933-06305-06-00 Bearing (B6305N) |
933-06305-06-00 |
US $52.88 |
||
| replacement | |||||
|
31
|
31
93306-30504-00 Bearing |
93306-30504-00 |
from US $18.14 |
||
|
32
|
32
931-02351-09-00 Oil Seal (Sd-35-62-6 Hs) |
931-02351-09-00 |
from US $9.35 |
||
|
33
|
33
90387-25192-00 Collar |
90387-25192-00 |
from US $15.27 |
||
| replacements | |||||
|
33
|
33
90387-253M9-00 Collar |
90387-253M9-00 |
from US $21.11 |
||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
9385E-16114-00 Sprocket, Drive 16T16T U.R. |
9385E-16114-00 |
US $27.27 |
||
|
34
|
34
938-5E150-90-00 Sprocket, Drive (15T)15T U.R. STD |
938-5E150-90-00 |
from US $44.77 |
||
| replacement | |||||
|
34
|
34
3HE-17460-00-00 Sprocket, Drive (15t)15T U.R. STD |
3HE-17460-00-00 |
from US $46.42 |
||
|
34
|
34
938-5E141-60-00
Sprocket, Drive
|
938-5E141-60-00 |
— | ||
|
35
|
35
902-15210-22-00
Washer, Lock
|
902-15210-22-00 |
— | ||
| replacement | |||||
|
35
|
35
902-15212-90-00 Washer, Lock |
902-15212-90-00 |
from US $7.23 |
||
|
36
|
36
90179-18020-00 Nut |
90179-18020-00 |
from US $4.96 |
||
|
37
|
37
90206-15021-00 Washer, Wave |
90206-15021-00 |
from US $3.12 |
||
|
38
|
38
278-15650-00-00
Idle Gear Assembly
|
278-15650-00-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
164-17417-00-10 Shim 11.0T |
164-17417-00-10 |
from US $3.68 |
||
|
40
|
40
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
41
|
41
360-17471-00-00
Plate, Cover
|
360-17471-00-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
42
|
42
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.34 |
||
|
42
|
42
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
