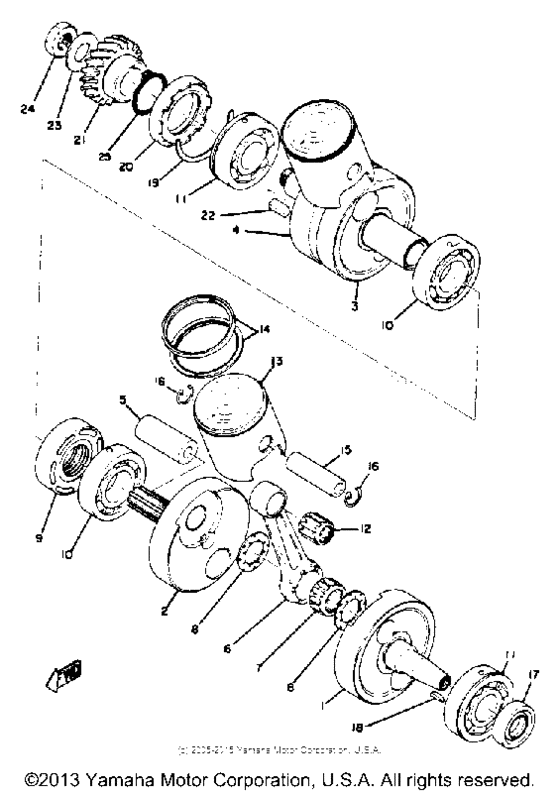

Crankshaft & Piston Diagram Yamaha RD
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35T-24724-00-00 Damper, SeatIN PRICE BOOK |
35T-24724-00-00 |
from US $5.24 |
||
|
1
|
1
26W-12116-00-00
Seat, Valve Spring
IN PRICE BOOK |
26W-12116-00-00 |
— | ||
|
2
|
2
26W-12116-00-00
Seat, Valve Spring
IN PRICE BOOK |
26W-12116-00-00 |
— | ||
|
3
|
3
26W-12116-00-00
Seat, Valve Spring
IN PRICE BOOK |
26W-12116-00-00 |
— | ||
|
4
|
4
26W-12116-00-00
Seat, Valve Spring
IN PRICE BOOK |
26W-12116-00-00 |
— | ||
|
5
|
5
8G8-11681-00-00 Pin, Crank 1 |
8G8-11681-00-00 |
from US $62.41 |
||
|
6
|
6
34X-11651-00-00 Rod, Connecting |
34X-11651-00-00 |
from US $43.64 |
||
|
7
|
7
933-10422-77-00
Bearing, Cylinder
|
933-10422-77-00 |
— | ||
| replacement | |||||
|
7
|
7
933-10422-C8-00 Bearing, Cylinder |
933-10422-C8-00 |
from US $24.80 |
||
|
8
|
8
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $3.64 |
||
|
9
|
9
278-11515-00-00
Seal, Labyrinth 1
|
278-11515-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
933-06206-21-00 Bearing |
933-06206-21-00 |
from US $48.94 |
||
|
11
|
11
93306-30549-00 Bearing(1Ua) |
93306-30549-00 |
from US $45.30 |
||
|
12
|
12
93310-216E1-00 Bearing |
93310-216E1-00 |
from US $8.28 |
||
|
13
|
13
360-11631-03-96
Piston Std (360-11631-01-96)
360-11631-01-96 |
360-11631-03-96 |
— | ||
|
13
|
13
360-11635-03-00
Piston 1 O/s 0.25 (360-11635-02
O/S 0.25 360-11635-02 ALT. |
360-11635-03-00 |
— | ||
|
13
|
13
360-11636-03-00
Piston 2 O/s 0.50 (360-11636-01
O/S 0.50 360-11636-01 ALT. |
360-11636-03-00 |
— | ||
|
14
|
14
360-11610-02-00
Piston Ringset Std
|
360-11610-02-00 |
— | ||
|
14
|
14
360-11610-12-00
Piston Ringset 1St
1ST ALT. |
360-11610-12-00 |
— | ||
|
14
|
14
360-11610-22-00
Piston Ringset 2Nd
2ND ALT. |
360-11610-22-00 |
— | ||
|
15
|
15
4L0-11633-00-00 Pin, Piston |
4L0-11633-00-00 |
from US $8.60 |
||
|
16
|
16
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
17
|
17
93103-20076-00 Oil Seal, Sw-TypeOil seal (sw-20-40-10) |
93103-20076-00 |
from US $9.92 |
||
|
18
|
18
90280-04005-00
Key, Woodruff
|
90280-04005-00 |
— | ||
|
19
|
19
278-17424-01-00 Circlip 1 |
278-17424-01-00 |
from US $3.64 |
||
|
20
|
20
93103-40077-00 Oil Seal |
93103-40077-00 |
from US $9.26 |
||
|
21
|
21
26W-12116-00-00
Seat, Valve Spring
IN PRICE BOOK 268~ |
26W-12116-00-00 |
— | ||
|
22
|
22
90282-07023-00 Key, Straight (584) |
90282-07023-00 |
from US $5.24 |
||
|
23
|
23
214-16119-00-00 Spring, Belleville |
214-16119-00-00 |
from US $7.93 |
||
|
24
|
24
90170-16182-00 Nut |
90170-16182-00 |
from US $3.12 |
||
| replacement | |||||
|
24
|
24
90170-16425-00 Nut |
90170-16425-00 |
from US $3.12 |
||
|
25
|
25
360-11526-00-00
Seal, Crankshaft
268~ |
360-11526-00-00 |
— | ||
|
25
|
25
908-90550-89-00
Dt125/175Elug.carr
IN PRICE BOOK |
908-90550-89-00 |
— | ||
