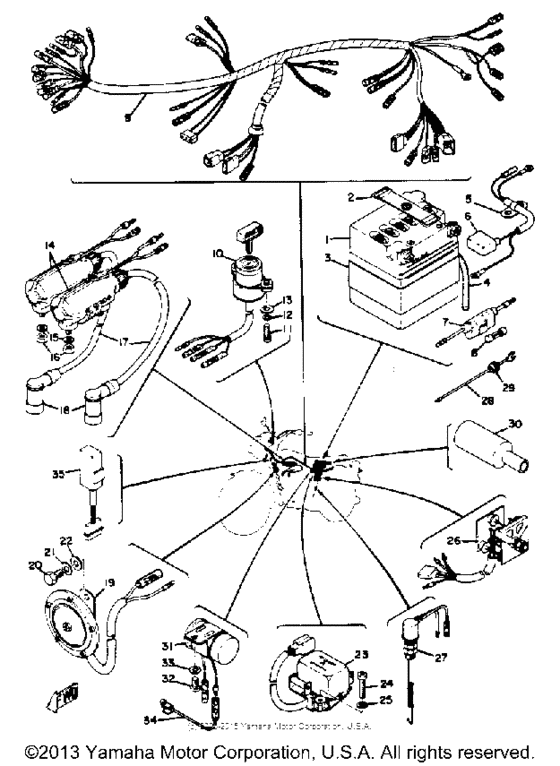

Electrical Diagram Yamaha RD
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
104-82111-20-00
Cap, Battery
|
104-82111-20-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
BTY-12N55-A3-B0
12N5.5A3B Yuasa Bat
|
BTY-12N55-A3-B0 |
— | ||
| replacement | |||||
|
1
|
1
12N-55A3B-Y0-00
CB3L-A GS-T BATTERY
|
12N-55A3B-Y0-00 |
— | ||
|
2
|
2
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
2
|
2
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
3
|
3
1UA-82124-00-00
Band, Battery
|
1UA-82124-00-00 |
— | ||
|
4
|
4
90445-08047-00 Hose (L1500) |
90445-08047-00 |
from US $10.91 |
||
| replacement | |||||
|
4
|
4
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
5
|
5
35T-24724-00-00 Damper, SeatIN PRICE BOOK |
35T-24724-00-00 |
from US $5.24 |
||
|
6
|
6
35T-24724-00-00 Damper, SeatIN PRICE BOOK |
35T-24724-00-00 |
from US $5.24 |
||
|
7
|
7
2UJ-82150-01-00 Fuse Holder Assy |
2UJ-82150-01-00 |
from US $11.76 |
||
| replacement | |||||
|
7
|
7
2UJ-82150-02-00 Fuse Holder Assy |
2UJ-82150-02-00 |
from US $9.89 |
||
|
8
|
8
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
9
|
9
360-82590-43-00
Wire Harness Assembly
|
360-82590-43-00 |
— | ||
|
10
|
10
360-82508-09-00
Main Switch Assembly
|
360-82508-09-00 |
— | ||
|
11
|
11
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
902-09051-16-00
Washer, Spec''l Shap
|
902-09051-16-00 |
— | ||
|
14
|
14
254-82310-60-00
Ignition Coil Assembly
|
254-82310-60-00 |
— | ||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
17
|
17
278-82341-00-00 Cord, Hight Tension 1 |
278-82341-00-00 |
US $19.13 |
||
| replacement | |||||
|
17
|
17
137-82341-01-00 Cord, Hight Tension 1 |
137-82341-01-00 |
US $47.50 |
||
|
18
|
18
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
19
|
19
4V8-83371-30-00 Horn |
4V8-83371-30-00 |
from US $115.88 |
||
| replacement | |||||
|
19
|
19
4L0-83371-30-00 Horn |
4L0-83371-30-00 |
from US $115.88 |
||
|
20
|
20
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
20
|
20
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
22
|
22
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
23
|
23
278-81910-22-00
Voltage Reg Assembly
|
278-81910-22-00 |
— | ||
|
24
|
24
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
24
|
24
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
26
|
26
278-81970-21-00
Rectifier Assembly
|
278-81970-21-00 |
— | ||
|
27
|
27
278-82530-09-00
Stop Switch Assembly
|
278-82530-09-00 |
— | ||
|
28
|
28
15R-W8352-00-00
Print Board Assembly
IN PRICE BOOK NEUT |
15R-W8352-00-00 |
— | ||
|
29
|
29
90480-01148-00
Grommet 136825450000
|
90480-01148-00 |
— | ||
|
30
|
30
256-82599-00-00
Cover, Connecter
|
256-82599-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
278-83350-71-00
Flasher Relay Assembly
|
278-83350-71-00 |
— | ||
|
32
|
32
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
32
|
32
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
33
|
33
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
34
|
34
20X-84331-00-00 Screw, Rim AdjustingIN PRICE BOOK |
20X-84331-00-00 |
from US $4.43 |
||
| replacement | |||||
|
34
|
34
901-57040-01-00 Screw, Rim AdjustingIN PRICE BOOK |
901-57040-01-00 |
from US $6.23 |
||
|
35
|
35
35T-24724-00-00 Damper, SeatIN PRICE BOOK |
35T-24724-00-00 |
from US $5.24 |
||
|
35
|
35
371-84708-00-00
Checker, Light
|
371-84708-00-00 |
— | ||
