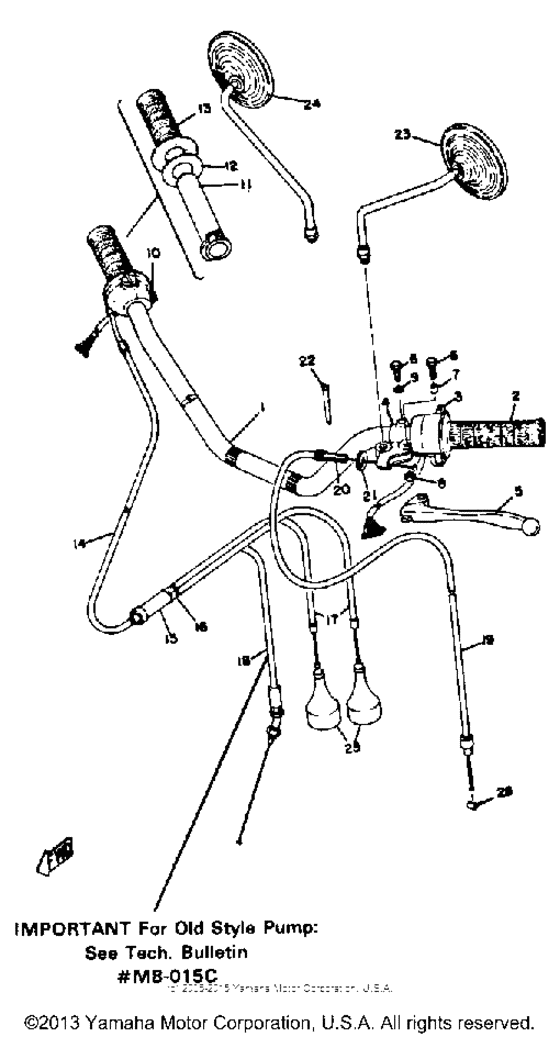

Handlebar cable Diagram Yamaha RD
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2L0-26111-00-00
Handlebar
|
2L0-26111-00-00 |
— | ||
|
1
|
1
360-82910-02-00
Lever Holder Assembly 1 (360-82
360-82 |
360-82910-02-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
360-82 |
999-99999-99-00 |
— | ||
|
2
|
2
341-26241-00-00
Grip Lh
LH |
341-26241-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
3
|
3
360-83973-02-00
Switch, Handle 3
|
360-83973-02-00 |
— | ||
|
3
|
3
360-83973-01-00
Switch, Handle 3
|
360-83973-01-00 |
— | ||
|
4
|
4
341-82911-00-00 Holder, Lever 1 |
341-82911-00-00 |
from US $29.95 |
||
|
5
|
5
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $20.12 |
||
|
6
|
6
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
6
|
6
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
7
|
7
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
8
|
8
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
8
|
8
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
360-83975-03-00
Switch, Handle 2
|
360-83975-03-00 |
— | ||
|
11
|
11
214-26243-00-00 Tube, Thrtl Guide |
214-26243-00-00 |
from US $15.54 |
||
|
12
|
12
90201-261L0-00 Washer, Plate (1V1-26249-00)1V1-26249-00 |
90201-261L0-00 |
from US $2.69 |
||
| replacement | |||||
|
12
|
12
90201-261L1-00 Washer, Plate (1V1-26249-00)1V1-26249-00 |
90201-261L1-00 |
from US $2.69 |
||
|
13
|
13
306-26242-10-00 Grip RhGrip,right RH |
306-26242-10-00 |
from US $30.46 |
||
|
14
|
14
360-26311-01-00 Cable, Throttle 1870~ |
360-26311-01-00 |
US $43.31 |
||
|
15
|
15
360-26261-01-00
Connector, Cable
|
360-26261-01-00 |
— | ||
|
16
|
16
360-26262-00-00
Cap, Cble Connector
870~ |
360-26262-00-00 |
— | ||
|
17
|
17
360-26312-00-00
Cable, Throttle 2
|
360-26312-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
360-26312-01-00
Cable, Throttle 2
|
360-26312-01-00 |
— | ||
|
18
|
18
360-26321-00-00
Cable, Pumppump For Old Style P
FOR OLD STYLE P SEE TECH. BULL. #M8-015C |
360-26321-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
FOR OLD STYLE P SEE TECH. BULL. #M8-015C |
999-99999-99-00 |
— | ||
|
19
|
19
360-26335-00-00 Cable, clutch |
360-26335-00-00 |
from US $79.42 |
||
| replacement | |||||
|
19
|
19
413-26335-20-00
Wire, Clutch
|
413-26335-20-00 |
— | ||
|
20
|
20
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
20
|
20
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
21
|
21
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
21
|
21
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
22
|
22
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
23
|
23
341-26290-10-00
Mirror Assembly Lh
LH |
341-26290-10-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
24
|
24
341-26290-01-00
Back Mirror Rh (341-26290-01)
RH 341-26290-01 AP |
341-26290-01-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
RH 341-26290-01 AP |
999-99999-99-00 |
— | ||
|
25
|
25
360-26329-00-00
Cap, Rubber
364~ |
360-26329-00-00 |
— | ||
|
25
|
25
360-26329-02-00
Cap, Rubber
|
360-26329-02-00 |
— | ||
|
26
|
26
164-26363-00-00 End, Cable |
164-26363-00-00 |
from US $3.54 |
||
