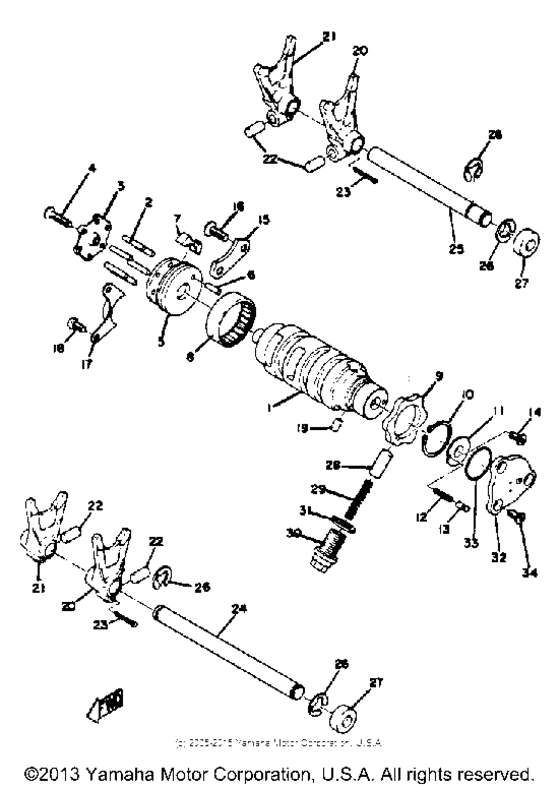

Shift Cam & Fork Diagram Yamaha RD
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-18541-00-00
Cam, Shift
|
360-18541-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
93604-22050-00 Pin, Dowel |
93604-22050-00 |
from US $1.84 |
||
|
3
|
3
328-18561-00-00
Plate, Side 1
|
328-18561-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
98701-05020-00 Screw, Flat Head |
98701-05020-00 |
from US $2.27 |
||
| replacement | |||||
|
4
|
4
98707-05020-00 Screw, Flat Head |
98707-05020-00 |
from US $1.62 |
||
|
5
|
5
328-18185-00-00
Segment
|
328-18185-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.69 |
||
|
7
|
7
328-18352-10-00
Plate, Pawl
|
328-18352-10-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
93315-23612-00 Bearing |
93315-23612-00 |
from US $12.18 |
||
|
9
|
9
360-18141-01-00
Plate, Stopper
|
360-18141-01-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
11
|
11
278-18566-00-00
Plate, Side 2
|
278-18566-00-00 |
— | ||
|
12
|
12
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.66 |
||
|
13
|
13
278-18542-00-00 Point, Neutral |
278-18542-00-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
4UN-18542-00-00 Point, Neutral |
4UN-18542-00-00 |
from US $1.70 |
||
|
14
|
14
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
14
|
14
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $1.98 |
||
|
15
|
15
328-18562-00-00
Plate, Stopper 2
|
328-18562-00-00 |
— | ||
|
16
|
16
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
16
|
16
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.34 |
||
|
16
|
16
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
|
17
|
17
328-18179-00-00
Guide
|
328-18179-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
18
|
18
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
19
|
19
93604-08071-00 Pin, Dowel |
93604-08071-00 |
from US $1.45 |
||
|
20
|
20
328-18511-01-00
Fork, Shift 1
|
328-18511-01-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
328-18512-01-00
Fork, Shift 2
|
328-18512-01-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90250-08017-00 Pin 2781855200 |
90250-08017-00 |
from US $1.70 |
||
|
23
|
23
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
|
24
|
24
278-18531-00-00
Bar, Shif Frk Gde 1
|
278-18531-00-00 |
— | ||
|
25
|
25
278-18535-00-00
Bar, Shif Frk Gde 2
|
278-18535-00-00 |
— | ||
|
26
|
26
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
27
|
27
90338-22021-00 Plug, Special Shape (371-18149-00) |
90338-22021-00 |
from US $6.38 |
||
| replacement | |||||
|
27
|
27
90338-22207-00 Plug |
90338-22207-00 |
from US $6.38 |
||
|
28
|
28
278-18547-02-00
Stopper, Cam
|
278-18547-02-00 |
— | ||
|
29
|
29
90501-10062-00 Spring Compression278185570000 |
90501-10062-00 |
from US $1.70 |
||
|
30
|
30
90149-14031-00 Bolt |
90149-14031-00 |
from US $7.78 |
||
| replacement | |||||
|
30
|
30
90109-14002-00 Bolt |
90109-14002-00 |
from US $7.79 |
||
|
31
|
31
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
31
|
31
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
32
|
32
1L9-82540-00-00 Neutral Switch Assy |
1L9-82540-00-00 |
from US $13.56 |
||
|
33
|
33
93210-29147-00 O-Ring |
93210-29147-00 |
from US $1.56 |
||
| replacement | |||||
|
33
|
33
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.56 |
||
|
34
|
34
98701-05020-00 Screw, Flat Head |
98701-05020-00 |
from US $2.27 |
||
| replacement | |||||
|
34
|
34
98707-05020-00 Screw, Flat Head |
98707-05020-00 |
from US $1.62 |
||
