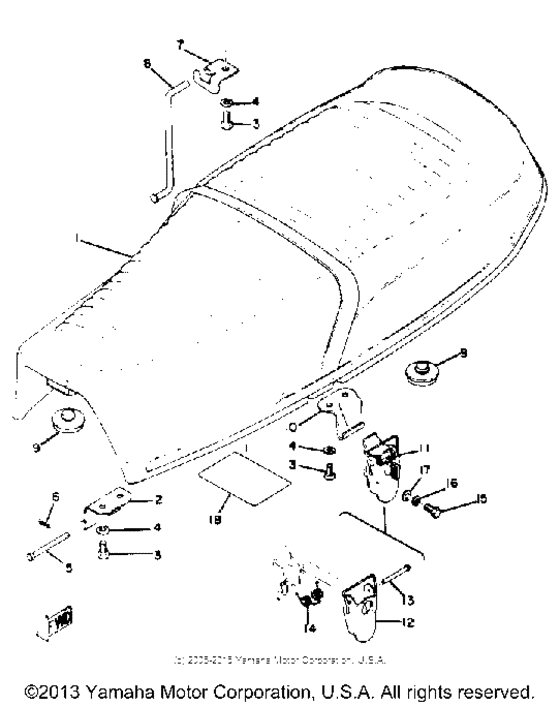

Seat Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-24730-06-00
Double Seat Assembly
|
360-24730-06-00 |
— | ||
|
1
|
1
360-24731-03-00
Cover, Double Seat
|
360-24731-03-00 |
— | ||
|
2
|
2
248-24726-00-33
Hinge, Seat
|
248-24726-00-33 |
— | ||
|
3
|
3
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
3
|
3
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
91701-05055-00 Pin |
91701-05055-00 |
from US $2.98 |
||
|
6
|
6
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
7
|
7
26W-12116-00-00
Seat, Valve Spring
IN PRICE BOOK |
26W-12116-00-00 |
— | ||
|
8
|
8
278-24768-00-00
Stopper
|
278-24768-00-00 |
— | ||
|
9
|
9
1L9-24741-00-00 Pad, Seat |
1L9-24741-00-00 |
from US $8.36 |
||
|
10
|
10
278-24728-00-00
Bracket, Seat
|
278-24728-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
526-24705-00-00
Seat Lock Assembly
|
526-24705-00-00 |
— | ||
|
12
|
12
34Y-83371-00-00 HornIN PRICE BOOK YAMAHA BLK |
34Y-83371-00-00 |
from US $55.87 |
||
| replacement | |||||
|
12
|
12
2KG-83371-00-00 HornIN PRICE BOOK YAMAHA BLK |
2KG-83371-00-00 |
from US $89.25 |
||
|
13
|
13
34Y-83371-00-00 HornIN PRICE BOOK |
34Y-83371-00-00 |
from US $55.87 |
||
| replacement | |||||
|
13
|
13
2KG-83371-00-00 HornIN PRICE BOOK |
2KG-83371-00-00 |
from US $89.25 |
||
|
14
|
14
353-24758-00-00
Spring
|
353-24758-00-00 |
— | ||
|
15
|
15
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
15
|
15
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
18
|
18
35T-24724-00-00 Damper, SeatIN PRICE BOOK |
35T-24724-00-00 |
from US $5.24 |
||
|
18
|
18
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
