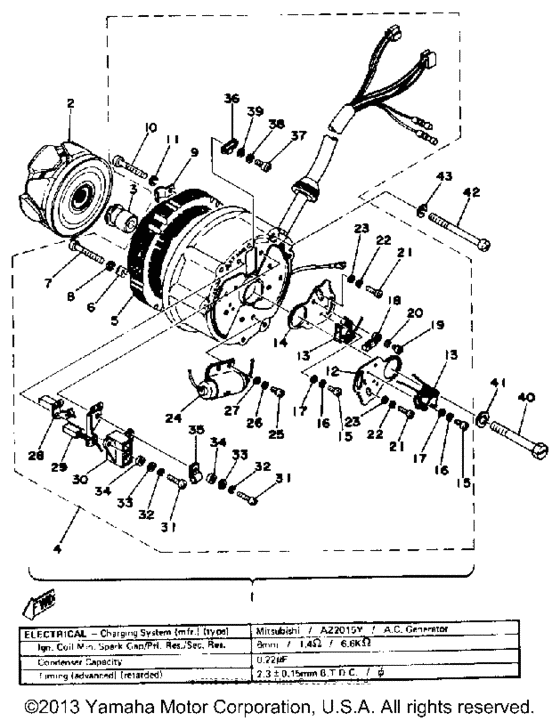

A - c - generator Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-81600-20-00
Ac Generator Assembly
FOR U.S.A |
1A0-81600-20-00 |
— | ||
|
1
|
1
1A0-81600-61-00
Ac Generator Assembly
FOR CANADA |
1A0-81600-61-00 |
— | ||
|
2
|
2
1A0-81650-20-00
Rotor Assembly
|
1A0-81650-20-00 |
— | ||
|
3
|
3
1A0-81651-20-00
Cam
|
1A0-81651-20-00 |
— | ||
|
4
|
4
1A0-81610-20-00
Stator Assembly
FOR U.S.A. |
1A0-81610-20-00 |
— | ||
|
4
|
4
1A0-81610-61-00
Stator Assembly
FOR CANADA |
1A0-81610-61-00 |
— | ||
|
5
|
5
169-28121-00-00
Point Gauge
|
169-28121-00-00 |
— | ||
|
5
|
5
1A0-81640-60-00
Armature Assembly
FOR CANADA |
1A0-81640-60-00 |
— | ||
|
5
|
5
360-81625-90-00
Condenser 1
|
360-81625-90-00 |
— | ||
|
5
|
5
ACC-01100-55-00
Tune Kit Rd400C
|
ACC-01100-55-00 |
— | ||
|
5
|
5
1A0-81640-20-00
Armature Assembly
FOR U.S.A. |
1A0-81640-20-00 |
— | ||
|
5
|
5
1A0-81621-20-00
Contact Brkr Assembly
|
1A0-81621-20-00 |
— | ||
|
5
|
5
NGK-B8ES0-00-00
B8Es Ngk Splug 10P
10P |
NGK-B8ES0-00-00 |
— | ||
| replacements | |||||
|
5
|
5
B8E-S0000-00-00 UNI CVR XA800A/ XA1210P |
B8E-S0000-00-00 |
US $4.23 |
||
|
5
|
5
BR8-ES000-00-00 Spark plug BR8ES10P |
BR8-ES000-00-00 |
US $20.32 |
||
|
6
|
6
1A0-81639-20-00
Plate, Armtr Ftng
|
1A0-81639-20-00 |
— | ||
|
7
|
7
985-01050-35-00
Screw, Pan Head
|
985-01050-35-00 |
— | ||
| replacements | |||||
|
7
|
7
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
7
|
7
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
8
|
8
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
9
|
9
1A0-81627-20-00
Bracket, Condenser
|
1A0-81627-20-00 |
— | ||
|
10
|
10
985-01050-35-00
Screw, Pan Head
|
985-01050-35-00 |
— | ||
| replacements | |||||
|
10
|
10
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
10
|
10
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
1A0-81624-20-00
Plate, Contact Brkr
|
1A0-81624-20-00 |
— | ||
|
13
|
13
1A0-81621-20-00
Contact Brkr Assembly
|
1A0-81621-20-00 |
— | ||
|
14
|
14
1A0-81623-20-00
Plate, Contact Brkr
|
1A0-81623-20-00 |
— | ||
|
15
|
15
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
16
|
16
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
17
|
17
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
18
|
18
131-81231-20-00
Lubricator
|
131-81231-20-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
19
|
19
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
19
|
19
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
20
|
20
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
21
|
21
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
21
|
21
169-28121-00-00
Point Gauge
|
169-28121-00-00 |
— | ||
|
21
|
21
NGK-B8ES0-00-00
B8Es Ngk Splug 10P
B8ES TUNE-UP KIT |
NGK-B8ES0-00-00 |
— | ||
| replacements | |||||
|
21
|
21
B8E-S0000-00-00 UNI CVR XA800A/ XA12B8ES TUNE-UP KIT |
B8E-S0000-00-00 |
US $4.23 |
||
|
21
|
21
BR8-ES000-00-00 Spark plug BR8ESB8ES TUNE-UP KIT |
BR8-ES000-00-00 |
US $20.32 |
||
|
21
|
21
1A0-81621-20-00
Contact Brkr Assembly
|
1A0-81621-20-00 |
— | ||
|
21
|
21
360-81625-90-00
Condenser 1
TUNE-UP KIT |
360-81625-90-00 |
— | ||
|
21
|
21
ACC-01100-55-00
Tune Kit Rd400C
|
ACC-01100-55-00 |
— | ||
|
22
|
22
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
23
|
23
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
24
|
24
360-81625-90-00
Condenser 1
|
360-81625-90-00 |
— | ||
|
25
|
25
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
26
|
26
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
26
|
26
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
27
|
27
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
28
|
28
1A0-81611-20-00
Brush 1
|
1A0-81611-20-00 |
— | ||
|
29
|
29
1A0-81612-20-00
Brush 2
|
1A0-81612-20-00 |
— | ||
|
30
|
30
1A0-81613-20-00
Holder, Brush
|
1A0-81613-20-00 |
— | ||
|
31
|
31
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
31
|
31
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
32
|
32
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
33
|
33
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
34
|
34
1A0-81661-20-00
Spacer
|
1A0-81661-20-00 |
— | ||
|
35
|
35
1A0-81628-20-00
Clamp
|
1A0-81628-20-00 |
— | ||
|
36
|
36
169-28121-00-00
Point Gauge
|
169-28121-00-00 |
— | ||
|
36
|
36
NGK-B8ES0-00-00
B8Es Ngk Splug 10P
B8ES TUNE-UP KIT |
NGK-B8ES0-00-00 |
— | ||
| replacements | |||||
|
36
|
36
B8E-S0000-00-00 UNI CVR XA800A/ XA12B8ES TUNE-UP KIT |
B8E-S0000-00-00 |
US $4.23 |
||
|
36
|
36
BR8-ES000-00-00 Spark plug BR8ESB8ES TUNE-UP KIT |
BR8-ES000-00-00 |
US $20.32 |
||
|
36
|
36
1A0-81621-20-00
Contact Brkr Assembly
|
1A0-81621-20-00 |
— | ||
|
36
|
36
360-81625-90-00
Condenser 1
TUNE-UP KIT |
360-81625-90-00 |
— | ||
|
36
|
36
ACC-01100-55-00
Tune Kit Rd400C
|
ACC-01100-55-00 |
— | ||
|
36
|
36
1A0-81632-20-00
Plate, Timing
|
1A0-81632-20-00 |
— | ||
|
37
|
37
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
38
|
38
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
38
|
38
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
39
|
39
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
40
|
40
901-43070-22-00
Screw, Hexagon
|
901-43070-22-00 |
— | ||
|
41
|
41
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
42
|
42
985-01060-70-00
Screw Pan Head
|
985-01060-70-00 |
— | ||
| replacement | |||||
|
42
|
42
98580-06570-00 Screw, Pan Head |
98580-06570-00 |
from US $6.52 |
||
|
43
|
43
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
